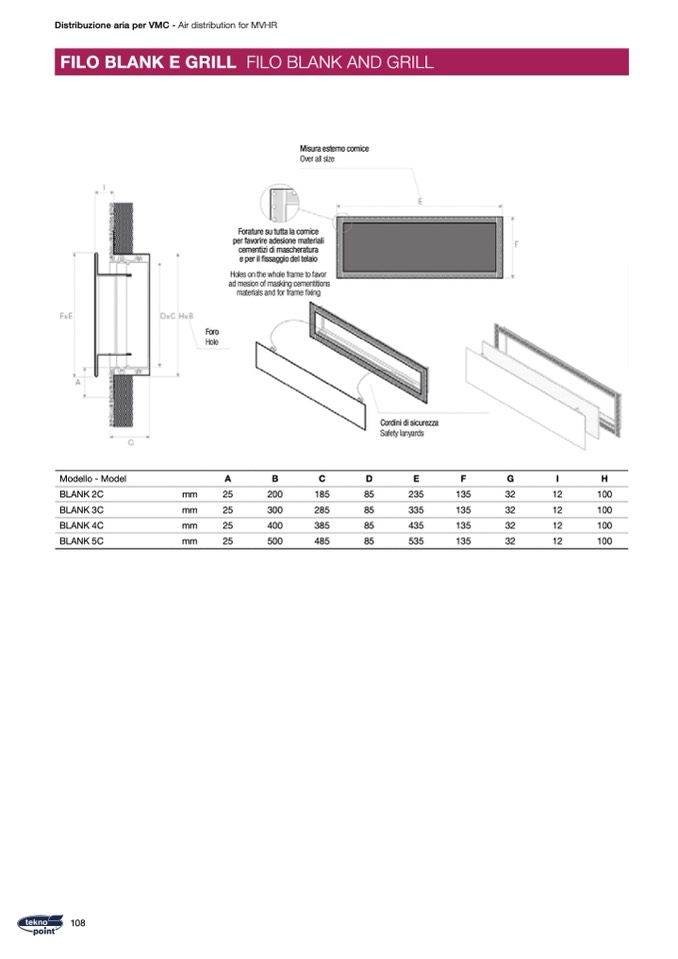

Distribuzione aria per VMC - Air distribution for MVHR

FILO BLANK E GRILL FILO BLANK AND GRILL

Misura esterno cornice

Over all size

Forature su tutta la cornice

per favorire adesione materiali

cementizi di mascheratura

e per il

fissaggio del telaio

Holes on the whole frame to favor

ad mesion of masking cementitions

materials and for frame fixing

Foro

Hole

Cordini di sicurezza

Safety lanyards

Modello - Model

BLANK 2C

mm

BLANK 3C

mm

BLANK 4C

mm

BLANK 5C

mm

A

B

C

D

E

F

G

I

H

25

200

185

25

300

285

25

400

385

25

500

485

85

235

135

32

85

335

135

32

85

435

135

32

85

535

135

32

12

100

12

100

12

100

12

100

108
