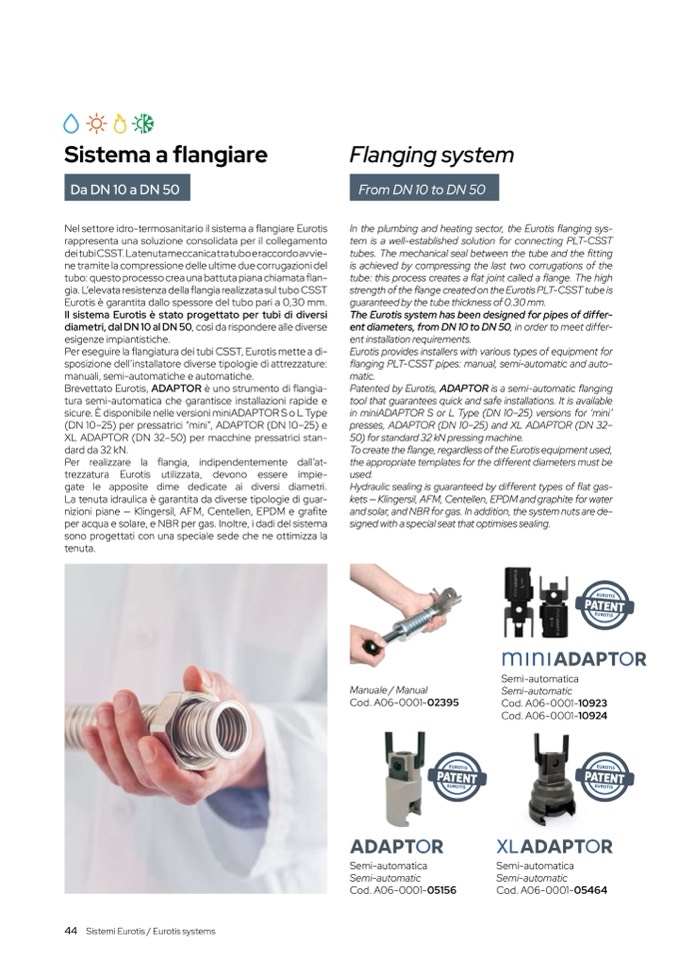

Sistema a

flangiare

Flanging syste

m

Da DN 10 a DN 50

From DN 10 to DN 50

Nel settore idro-termosanitario il sistema a flangiare Euroti

s

rappresenta una soluzione consolidata per il collegamento

dei tubi CSST. La tenuta meccanica tra tubo e raccordo avvie

-

ne tramite la compressione delle ultime due corrugazioni de

l

tubo: questo processo crea una battuta piana chiamata

flan-

gia. L’elevata resistenza della

flangia realizzata sul tubo CSST

Eurotis è garantita dallo spessore del tubo pari a 0,30 mm

.

Il sistema Eurotis è stato progettato per tubi di divers

i

diametri, dal DN 10 al DN 50, così da rispondere alle diverse

esigenze impiantistiche

.

Per eseguire la

flangiatura dei tubi CSST, Eurotis mette a di-

sposizione dell’installatore diverse tipologie di attrezzature

:

manuali, semi-automatiche e automatiche.

Brevettato Eurotis, ADAPTOR è uno strumento di

flangia-

tura semi-automatica che garantisce installazioni rapide e

sicure. È disponibile nelle versioni miniADAPTOR S o L Typ

e

(DN 10–25) per pressatrici “mini”, ADAPTOR (DN 10–25) e

XL ADAPTOR (DN 32–50) per macchine pressatrici stan-

dard da 32 kN

.

Per realizzare la flangia, indipendentemente dall’at-

trezzatura Eurotis utilizzata, devono essere impie-

gate le apposite dime dedicate ai diversi diametri

.

La tenuta idraulica è garantita da diverse tipologie di guar

-

nizioni piane — Klingersil, AFM, Centellen, EPDM e gra

fit

e

per acqua e solare, e NBR per gas. Inoltre, i dadi del sistem

a

sono progettati con una speciale sede che ne ottimizza l

a

tenuta

.

In the plumbing and heating sector, the Eurotis flanging sys-

tem is a well-established solution for connecting PLT-CSST

tubes. The mechanical seal between the tube and the fitting

is achieved by compressing the last two corrugations of th

e

tube: this process creates a flat joint called a flange. The high

strength of the flange created on the Eurotis PLT-CSST tube is

guaranteed by the tube thickness of 0.30 mm.

The Eurotis system has been designed for pipes of differ-

ent diameters, from DN 10 to DN 50, in order to meet differ

-

ent installation requirements.

Eurotis provides installers with various types of equipment fo

r

flanging PLT-CSST pipes: manual, semi-automatic and auto

-

matic.

Patented by Eurotis, ADAPTOR is a semi-automatic flanging

tool that guarantees quick and safe installations. It is availabl

e

in miniADAPTOR S or L Type (DN 10–25) versions for ‘mini

’

presses, ADAPTOR (DN 10–25) and XL ADAPTOR (DN 32

–

50) for standard 32 kN pressing machine.

To create the flange, regardless of the Eurotis equipment used,

the appropriate templates for the different diameters must b

e

used.

Hydraulic sealing is guaranteed by different types of flat gas-

kets — Klingersil, AFM, Centellen, EPDM and graphite for water

and solar, and NBR for gas. In addition, the system nuts are de-

signed with a special seat that optimises sealing.

PAT

EN

T

E

U

RO

T

I

S

EURO

TI

S

Manuale / Manua

l

Cod. A06-0001-02395

Semi-automatic

a

Semi-automati

c

Cod. A06-0001-1092

3

Cod. A06-0001-1092

4

PAT

EN

T

E

U

RO

T

I

S

EURO

TI

S

PAT

EN

T

E

U

RO

T

I

S

EURO

TI

S

Semi-automatica

Semi-automatic

Cod. A06-0001-05156

Semi-automatic

a

Semi-automati

c

Cod. A06-0001-05464

44

Sistemi Eurotis / Eurotis systems
