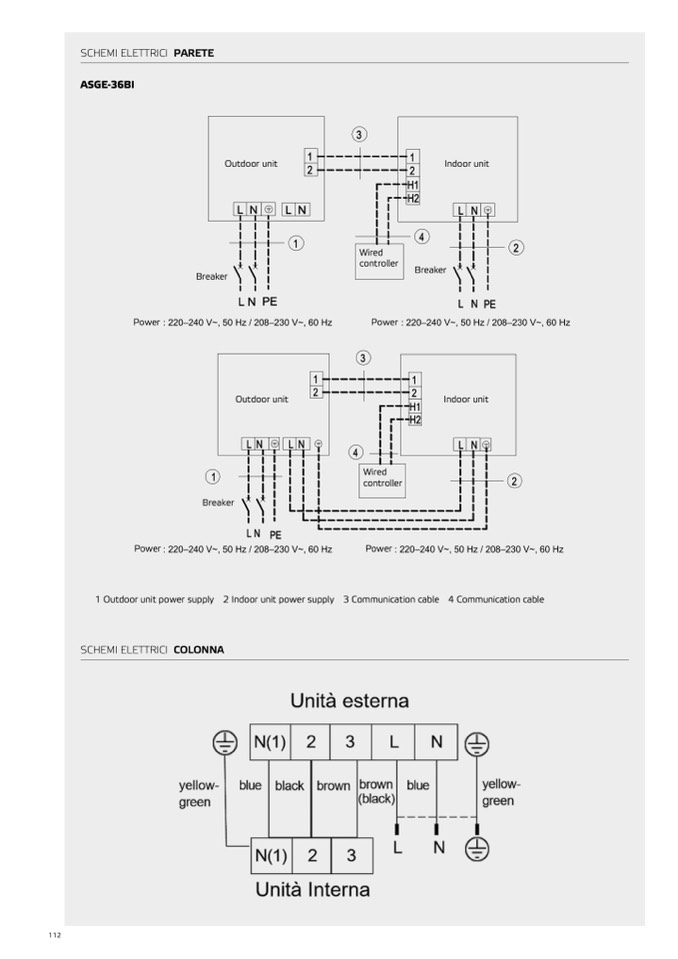

SCHEMI ELETTRICI PARETE

ASGE-36BI

Outdoor unit

Indoor unit

Wired

controller

Breaker

Breaker

Power

Power

Outdoor unit

Indoor unit

Wired

controller

Breaker

Power

Power

1 Outdoor unit power supply 2 Indoor unit power supply

SCHEMI ELETTRICI COLONNA

3 Communication cable

4 Communication cable

112
