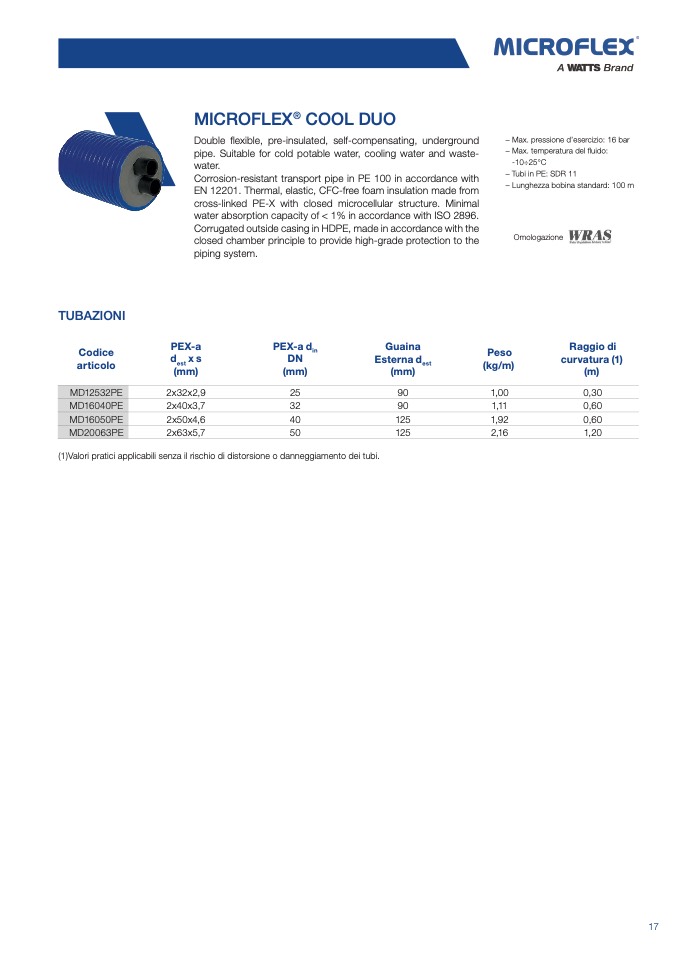

MICROFLEX

®

COOL DUO

Double flexible, pre-insulated, self-compensating, underground

pipe. Suitable for cold potable water, cooling water and waste-

water.

Corrosion-resistant transport pipe in PE 100 in accordance with

EN 12201. Thermal, elastic, CFC-free foam insulation made from

cross-linked PE-X with closed microcellular structure. Minimal

water absorption capacity of < 1% in accordance with ISO 2896.

Corrugated outside casing in HDPE, made in accordance with the

closed chamber principle to provide high-grade protection to the

piping system.

– Max. pressione d’esercizio: 16 bar

– Max. temperatura del fluido:

-10÷25°C

– Tubi in PE: SDR 11

– Lunghezza bobina standard: 100 m

Omologazione

TUBAZIONI

Codice

articolo

PEX-a

d

est

x s

(mm)

2x32x2,9

2x40x3,7

2x50x4,6

2x63x5,7

PEX-a d

in

DN

(mm)

25

32

40

50

Guaina

Peso

Esterna d

est

(kg/m)

(mm)

90

1,00

90

1,11

125

1,92

125

2,16

Raggio di

curvatura (1)

(m)

0,30

0,60

0,60

1,20

MD12532PE

MD16040PE

MD16050PE

MD20063PE

(1)Valori pratici applicabili senza il rischio di distorsione o danneggiamento dei tubi.
