self-cleaning

filter

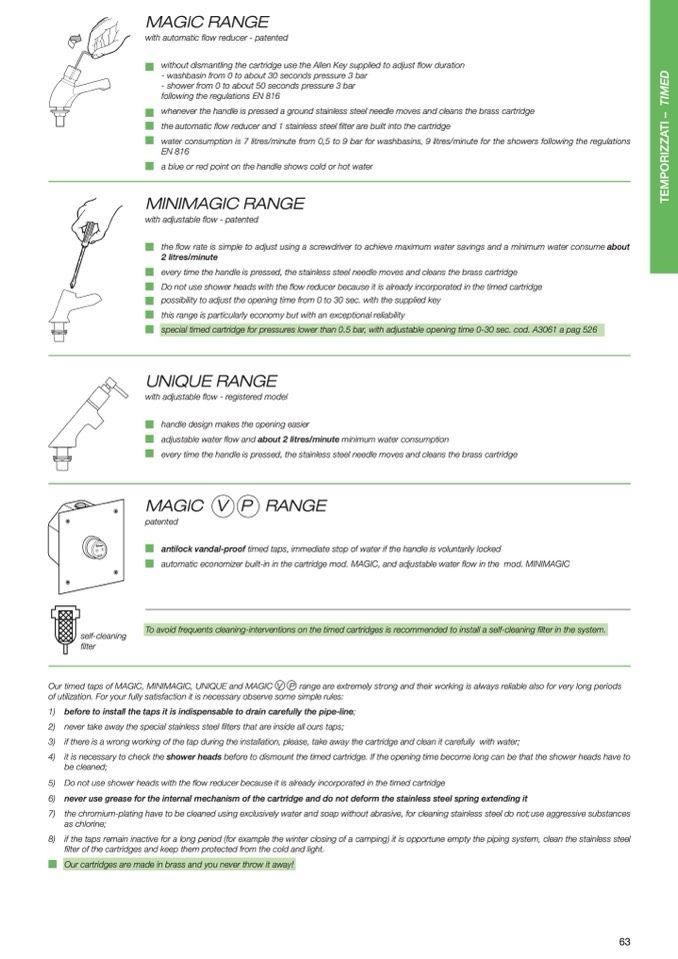

MAGIC RANGE

with automatic flow reducer - patented

without dismantling the cartridge use the Allen Key supplied to adjust flow duration

- washbasin from 0 to about 30 seconds pressure 3 bar

- shower from 0 to about 50 seconds pressure 3 bar

following the regulations EN 816

whenever the handle is pressed a ground stainless steel needle moves and cleans the brass cartridge

the automatic flow reducer and 1 stainless steel filter are built into the cartridge

water consumption is 7 litres/minute from 0,5 to 9 bar for washbasins, 9 litres/minute for the showers following the regulations

EN 816

a blue or red point on the handle shows cold or hot water

MINIMAGIC RANGE

with adjustable flow - patented

the flow rate is simple to adjust using a screwdriver to achieve maximum water savings and a minimum water consume about

2 litres/minute

every time the handle is pressed, the stainless steel needle moves and cleans the brass cartridge

Do not use shower heads with the flow reducer because it is already incorporated in the timed cartridge

possibility to adjust the opening time from 0 to 30 sec. with the supplied key

this range is particularly economy but with an exceptional reliability

special timed cartridge for pressures lower than 0.5 bar, with adjustable opening time 0-30 sec. cod. A3061 a pag 526

UNIQUE RANGE

with adjustable flow - registered model

handle design makes the opening easier

adjustable water flow and about 2 litres/minute minimum water consumption

every time the handle is pressed, the stainless steel needle moves and cleans the brass cartridge

MAGIC V P RANGE

patented

antilock vandal-proof timed taps, immediate stop of water if the handle is voluntarily locked

automatic economizer built-in in the cartridge mod. MAGIC, and adjustable water flow in the mod. MINIMAGIC

To avoid frequents cleaning-interventions on the timed cartridges is recommended to install a self-cleaning filter in the system.

Our timed taps of MAGIC, MINIMAGIC, UNIQUE and MAGIC V P range are extremely strong and their working is always reliable also for very long periods

of utilization. For your fully satisfaction it is necessary observe some simple rules:

1) before to install the taps it is indispensable to drain carefully the pipe-line;

2) never take away the special stainless steel filters that are inside all ours taps;

3) if there is a wrong working of the tap during the installation, please, take away the cartridge and clean it carefully with water;

4) it is necessary to check the shower heads before to dismount the timed cartridge. If the opening time become long can be that the shower heads have to

be cleaned;

5) Do not use shower heads with the flow reducer because it is already incorporated in the timed cartridge

6) never use grease for the internal mechanism of the cartridge and do not deform the stainless steel spring extending it

7) the chromium-plating have to be cleaned using exclusively water and soap without abrasive, for cleaning stainless steel do not;use aggressive substances

as chlorine;

8) if the taps remain inactive for a long period (for example the winter closing of a camping) it is opportune empty the piping system, clean the stainless steel

filter of the cartridges and keep them protected from the cold and light.

Our cartridges are made in brass and you never throw it away!
