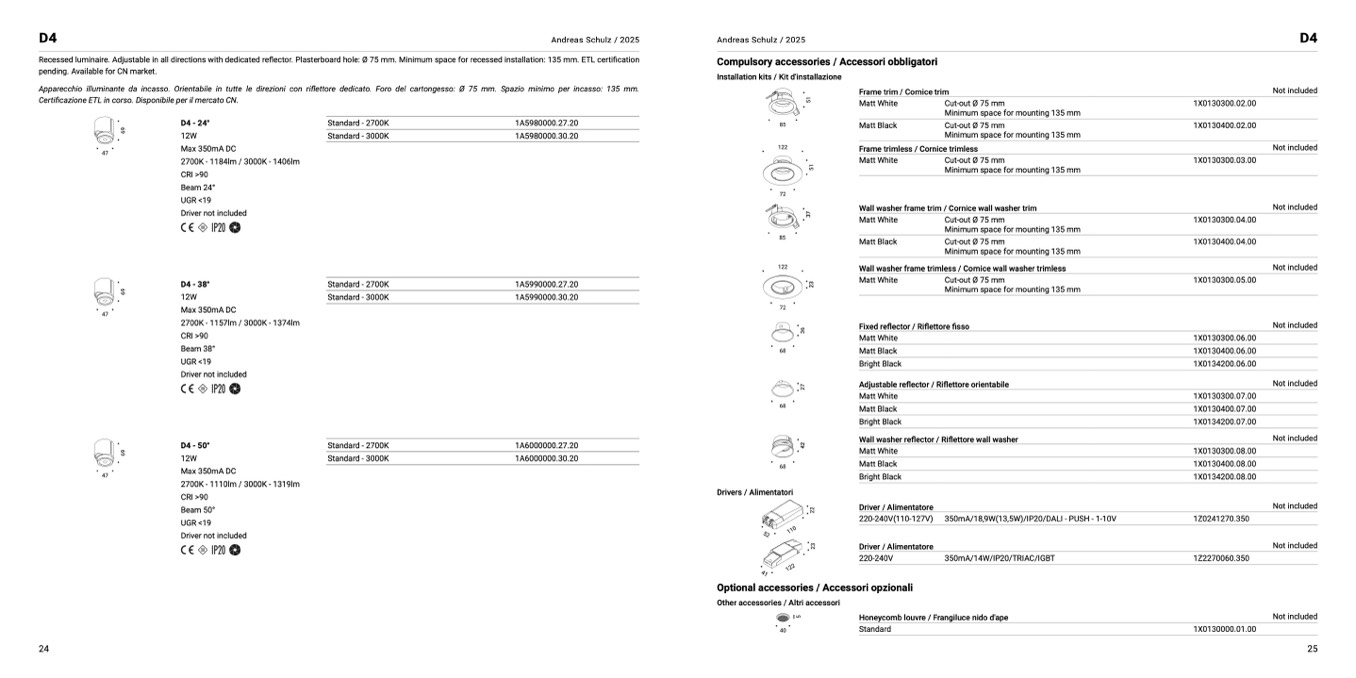

D4

Andreas Schulz / 2025

Recessed luminaire. Adjustable in all directions with dedicated re

flector. Plasterboard hole: Ø 75 mm. Minimum space for recessed installation: 135 mm. ETL certi

fication

pending. Available for CN market.

Apparecchio illuminante da incasso. Orientabile in tutte le direzioni con ri

flettore dedicato. Foro del cartongesso: Ø 75 mm. Spazio minimo per incasso: 135 mm.

Certi

ficazione ETL in corso. Disponibile per il mercato CN.

Andreas Schulz / 2025

Compulsory accessories / Accessori obbligatori

D4

Not included

Not included

Not included

Not included

Not included

Not included

Not included

Not included

Not included

Not included

Installation kits / Kit d'installazione

Frame trim / Cornice trim

D4 - 24°

12W

Max 350mA DC

2700K - 1184lm / 3000K - 1406lm

CRI >90

Beam 24°

UGR <19

Driver not included

D4 - 38°

12W

Max 350mA DC

2700K - 1157lm / 3000K - 1374lm

CRI >90

Beam 38°

UGR <19

Driver not included

D4 - 50°

12W

Max 350mA DC

2700K - 1110lm / 3000K - 1319lm

CRI >90

Beam 50°

UGR <19

Driver not included

Standard - 2700K

Standard - 3000K

1A5980000.27.20

1A5980000.30.20

Matt White

Matt Black

Cut-out Ø 75 mm

Minimum space for mounting 135 mm

Cut-out Ø 75 mm

Minimum space for mounting 135 mm

1X0130300.02.00

1X0130400.02.00

1X0130300.03.00

1X0130300.04.00

1X0130400.04.00

1X0130300.05.00

1X0130300.06.00

1X0130400.06.00

1X0134200.06.00

1X0130300.07.00

1X0130400.07.00

1X0134200.07.00

1X0130300.08.00

1X0130400.08.00

1X0134200.08.00

1Z0241270.350

1Z2270060.350

Frame trimless / Cornice trimless

Matt White

Cut-out Ø 75 mm

Minimum space for mounting 135 mm

Wall washer frame trim / Cornice wall washer trim

Matt White

Cut-out Ø 75 mm

Minimum space for mounting 135 mm

Matt Black

Cut-out Ø 75 mm

Minimum space for mounting 135 mm

Wall washer frame trimless / Cornice wall washer trimless

Standard - 2700K

Standard - 3000K

1A5990000.27.20

1A5990000.30.20

Matt White

Cut-out Ø 75 mm

Minimum space for mounting 135 mm

Standard - 2700K

Standard - 3000K

1A6000000.27.20

1A6000000.30.20

Fixed re

flector / Riflettore fisso

Matt White

Matt Black

Bright Black

Adjustable re

flector / Riflettore orientabile

Matt White

Matt Black

Bright Black

Wall washer re

flector / Riflettore wall washer

Drivers / Alimentatori

Matt White

Matt Black

Bright Black

Driver / Alimentatore

220-240V(110-127V)

Driver / Alimentatore

220-240V

350mA/18,9W(13,5W)/IP20/DALI - PUSH - 1-10V

350mA/14W/IP20/TRIAC/IGBT

Optional accessories / Accessori opzionali

Other accessories / Altri accessori

Honeycomb louvre / Frangiluce nido d'ape

Standard

1X0130000.01.00

24

25
