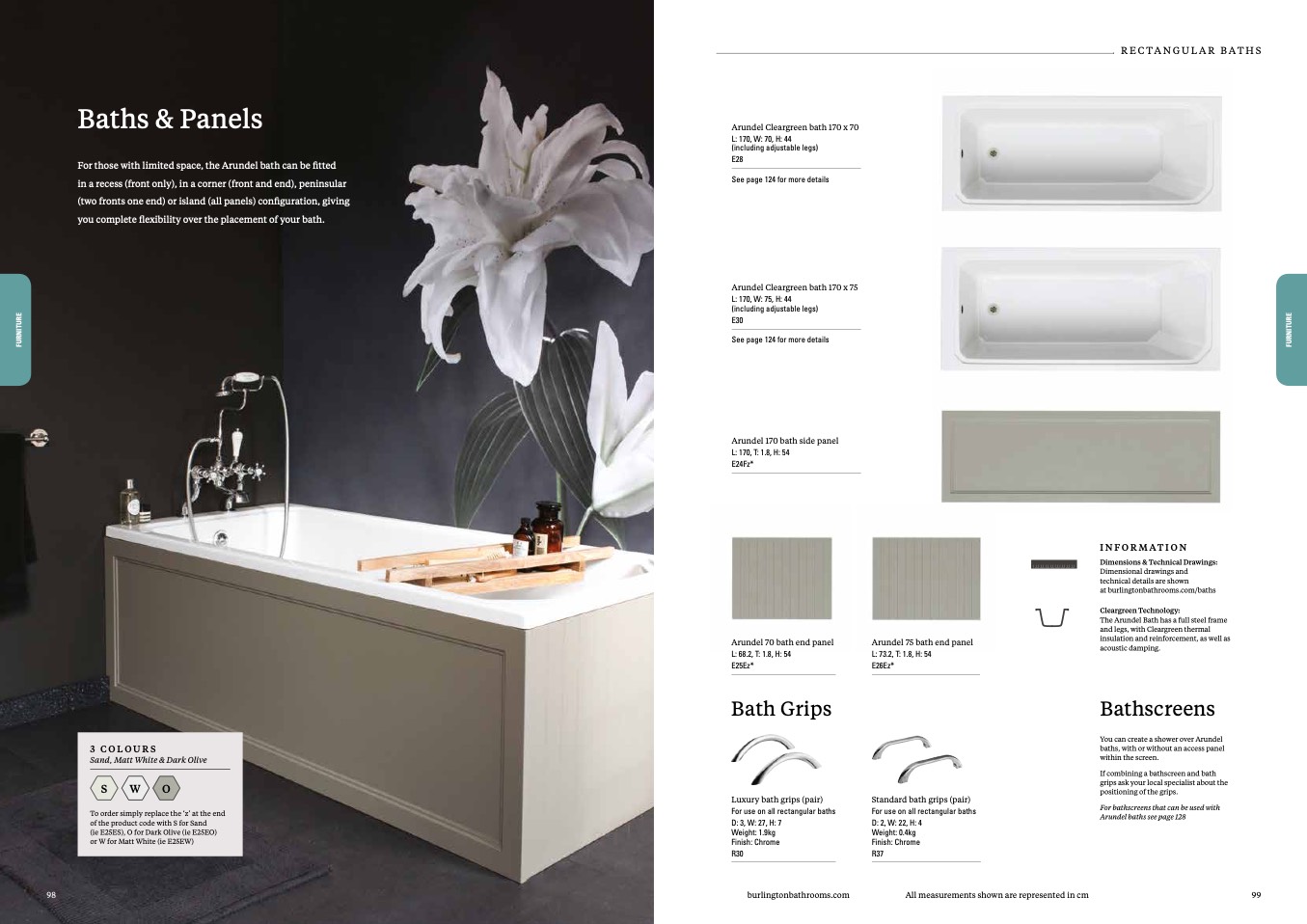

Baths & Panels

For those with limited space, the Arundel bath can be fitted

in a recess (front only), in a corner (front and end), peninsular

(two fronts one end) or island (all panels) configuration, giving

you complete flexibility over the placement of your bath.

Arundel Cleargreen bath 170 x 70

L: 170, W: 70, H: 44

(including adjustable legs)

E28

See page 124 for more details

Arundel Cleargreen bath 170 x 75

L: 170, W: 75, H: 44

(including adjustable legs)

E30

See page 124 for more details

Arundel 170 bath side panel

L: 170, T: 1.8, H: 54

E24Fz*

RECTANGULAR BATHS

Arundel 70 bath end panel

L: 68.2, T: 1.8, H: 54

E25Ez*

Bath Grips

Luxury bath grips (pair)

For use on all rectangular baths

D: 3, W: 27, H: 7

Weight: 1.9kg

Finish: Chrome

R30

Arundel 75 bath end panel

L: 73.2, T: 1.8, H: 54

E26Ez*

Standard bath grips (pair)

For use on all rectangular baths

D: 2, W: 22, H: 4

Weight: 0.4kg

Finish: Chrome

R37

INFORMATION

Dimensions & Technical Drawings:

Dimensional drawings and

technical details are shown

at burlingtonbathrooms.com/baths

Cleargreen Technology:

The Arundel Bath has a full steel frame

and legs, with Cleargreen thermal

insulation and reinforcement, as well as

acoustic damping.

Bathscreens

You can create a shower over Arundel

baths, with or without an access panel

within the screen.

If combining a bathscreen and bath

grips ask your local specialist about the

positioning of the grips.

For bathscreens that can be used with

Arundel baths see page 128

98

burlingtonbathrooms.com

All measurements shown are represented in cm

99

3 COLOURS

Sand, Matt White & Dark Olive

S

W

O

To order simply replace the ‘z’ at the end

of the product code with S for Sand

(ie E25ES), O for Dark Olive (ie E25EO)

or W for Matt White (ie E25EW)
