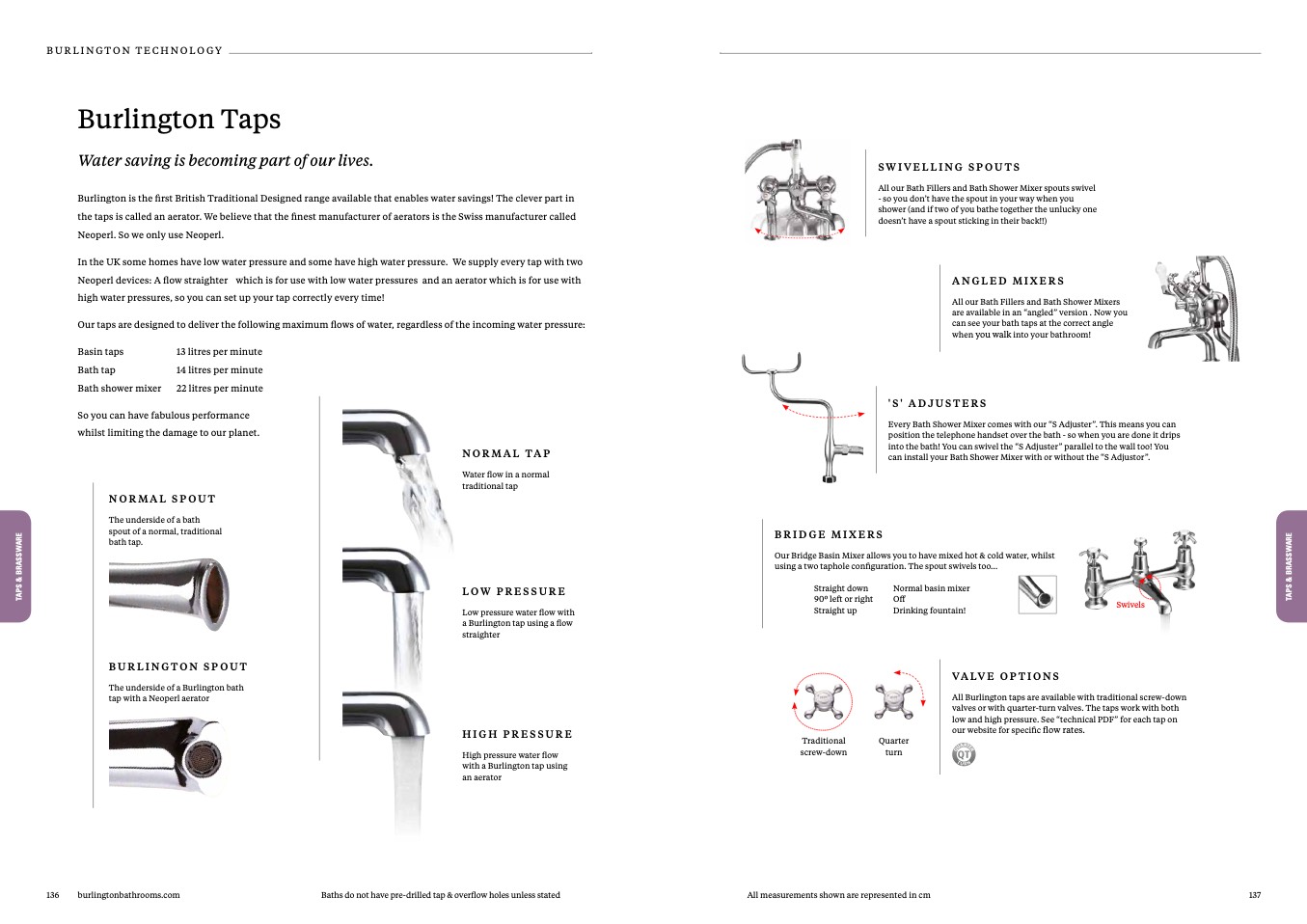

Domovari - BUrlington

BURLINGTON TECHNOLOGY

Burlington Taps

Water saving is becoming part of our lives.

Burlington is the first British Traditional Designed range available that enables water savings! The clever part in

the taps is called an aerator. We believe that the finest manufacturer of aerators is the Swiss manufacturer called

Neoperl. So we only use Neoperl.

In the UK some homes have low water pressure and some have high water pressure. We supply every tap with two

Neoperl devices: A flow straighter which is for use with low water pressures and an aerator which is for use with

high water pressures, so you can set up your tap correctly every time!

Our taps are designed to deliver the following maximum flows of water, regardless of the incoming water pressure:

SWIVELLING SPOUTS

All our Bath Fillers and Bath Shower Mixer spouts swivel

- so you don’t have the spout in your way when you

shower (and if two of you bathe together the unlucky one

doesn’t have a spout sticking in their back!!)

Basin taps

Bath tap

Bath shower mixer

13 litres per minute

14 litres per minute

22 litres per minute

A N G L E D M I X E R S

All our Bath Fillers and Bath Shower Mixers

are available in an “angled” version . Now you

can see your bath taps at the correct angle

when you walk into your bathroom!

'S' ADJUSTERS

Every Bath Shower Mixer comes with our “S Adjuster”. This means you can

position the telephone handset over the bath - so when you are done it drips

into the bath! You can swivel the “S Adjuster” parallel to the wall too! You

can install your Bath Shower Mixer with or without the “S Adjustor”.

So you can have fabulous performance

whilst limiting the damage to our planet.

NORMAL SPOUT

The underside of a bath

spout of a normal, traditional

bath tap.

BURLINGTON SPOUT

The underside of a Burlington bath

tap with a Neoperl aerator

NORMAL TAP

Water flow in a normal

traditional tap

LOW PRESSURE

Low pressure water flow with

a Burlington tap using a flow

straighter

HIGH PRESSURE

High pressure water flow

with a Burlington tap using

an aerator

BRIDGE MIXERS

Our Bridge Basin Mixer allows you to have mixed hot & cold water, whilst

using a two taphole configuration. The spout swivels too...

Straight down

90o left or right

Straight up

Traditional

screw-down

Normal basin mixer

Off

Drinking fountain!

Swivels

VALVE OPTIONS

All Burlington taps are available with traditional screw-down

valves or with quarter-turn valves. The taps work with both

low and high pressure. See “technical PDF” for each tap on

our website for specific flow rates.

136

burlingtonbathrooms.com

Baths do not have pre-drilled tap & overflow holes unless stated

All measurements shown are represented in cm

137

Quarter

turn
