SHOWERING
SHOWERING

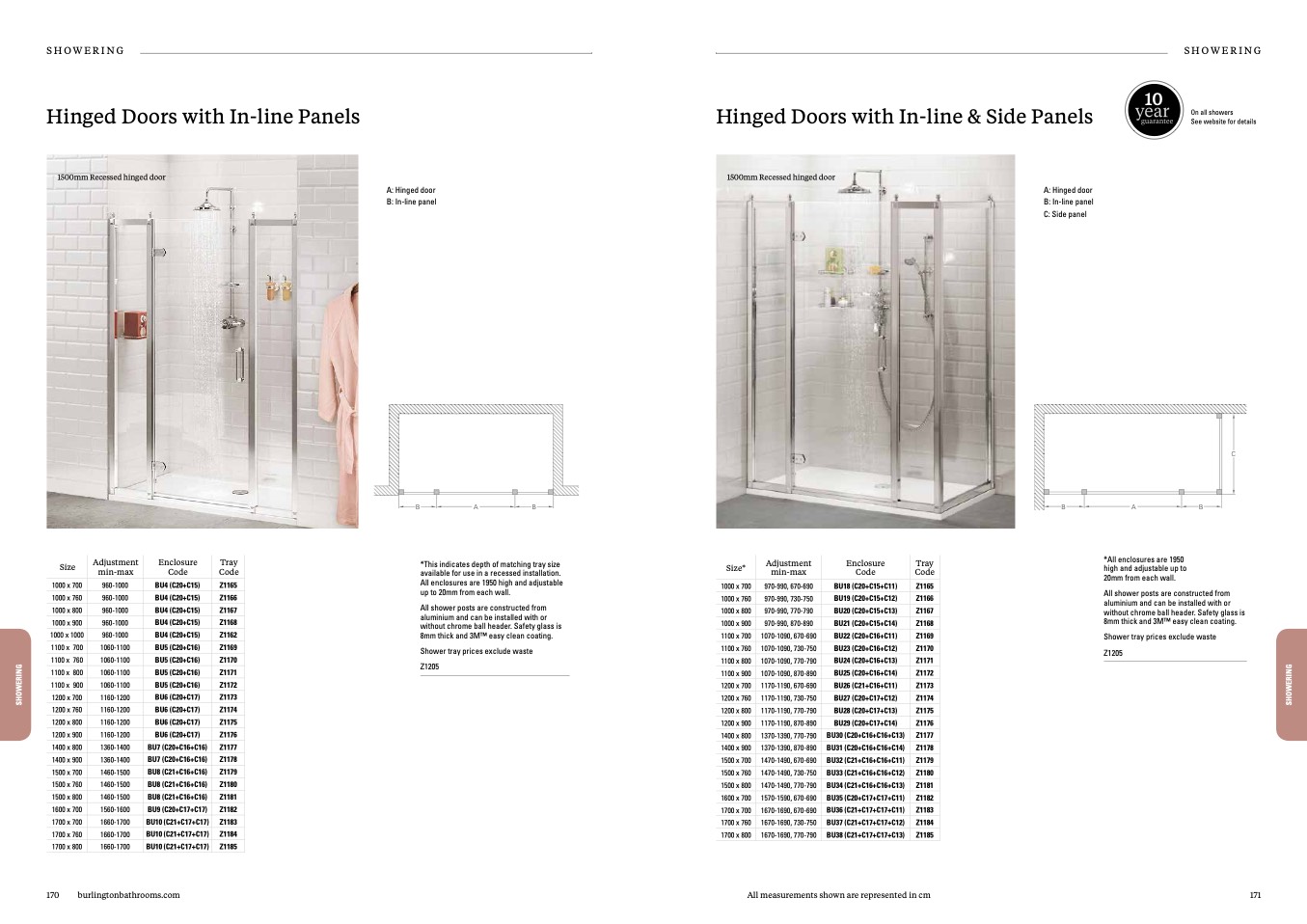

Hinged Doors with In-line Panels
1500mm Recessed hinged door
Hinged Doors with In-line & Side Panels
1500mm Recessed hinged door
A: Hinged door
B: In-line panel
C: Side panel
10
On all showers
See website for details
A: Hinged door
B: In-line panel
C
B
A
B
B
A
B
Size
1000 x 700
1000 x 760
1000 x 800
1000 x 900
1000 x 1000
1100 x 700
1100 x 760
1100 x 800
1100 x 900
1200 x 700
1200 x 760
1200 x 800
1200 x 900
1400 x 800
1400 x 900
1500 x 700
1500 x 760
1500 x 800
1600 x 700
1700 x 700
1700 x 760
1700 x 800
Adjustment
Enclosure
min-max
Code
Tray
Code
*This indicates depth of matching tray size
available for use in a recessed installation.
All enclosures are 1950 high and adjustable
up to 20mm from each wall.
All shower posts are constructed from
aluminium and can be installed with or
without chrome ball header. Safety glass is
8mm thick and 3MTM easy clean coating.
Shower tray prices exclude waste
Z1205
Adjustment
Size*
min-max
1000 x 700
1000 x 760
1000 x 800
1000 x 900
1100 x 700
1100 x 760
1100 x 800
1100 x 900
1200 x 700
1200 x 760
1200 x 800
1200 x 900
1400 x 800
1400 x 900
1500 x 700
1500 x 760
1500 x 800
1600 x 700
1700 x 700
1700 x 760
1700 x 800
Enclosure
Tray
Code
Code
*All enclosures are 1950
high and adjustable up to
20mm from each wall.
960-1000
BU4 (C20+C15)
Z1165
960-1000
BU4 (C20+C15)
Z1166
960-1000
BU4 (C20+C15)
Z1167
960-1000
BU4 (C20+C15)
Z1168
960-1000
BU4 (C20+C15) Z1162
1060-1100
BU5 (C20+C16)
Z1169
1060-1100
BU5 (C20+C16)
Z1170
1060-1100
BU5 (C20+C16)
Z1171
1060-1100
BU5 (C20+C16)
Z1172
1160-1200
BU6 (C20+C17)
Z1173
1160-1200
BU6 (C20+C17)
Z1174
1160-1200
BU6 (C20+C17) Z1175
1160-1200
BU6 (C20+C17)
Z1176
1360-1400
BU7 (C20+C16+C16)
Z1177
1360-1400
BU7 (C20+C16+C16)
Z1178
1460-1500
BU8 (C21+C16+C16)
Z1179
1460-1500
BU8 (C21+C16+C16)
Z1180
1460-1500
BU8 (C21+C16+C16) Z1181
1560-1600
BU9 (C20+C17+C17)
Z1182
1660-1700
BU10 (C21+C17+C17)
Z1183
1660-1700
BU10 (C21+C17+C17)
Z1184
1660-1700
BU10 (C21+C17+C17)
Z1185
970-990, 670-690
BU18 (C20+C15+C11)
Z1165
970-990, 730-750
BU19 (C20+C15+C12)
Z1166
970-990, 770-790
BU20 (C20+C15+C13) Z1167
970-990, 870-890
BU21 (C20+C15+C14)
Z1168
1070-1090, 670-690
BU22 (C20+C16+C11)
Z1169
1070-1090, 730-750
BU23 (C20+C16+C12)
Z1170
1070-1090, 770-790
BU24 (C20+C16+C13)
Z1171
1070-1090, 870-890
BU25 (C20+C16+C14)
Z1172
1170-1190, 670-690
BU26 (C21+C16+C11) Z1173
1170-1190, 730-750
BU27 (C20+C17+C12)
Z1174
1170-1190, 770-790
BU28 (C20+C17+C13)
Z1175
1170-1190, 870-890
BU29 (C20+C17+C14)
Z1176
1370-1390, 770-790
BU30 (C20+C16+C16+C13)
Z1177
1370-1390, 870-890
BU31 (C20+C16+C16+C14)
Z1178
1470-1490, 670-690
BU32 (C21+C16+C16+C11) Z1179
1470-1490, 730-750
BU33 (C21+C16+C16+C12)
Z1180
1470-1490, 770-790
BU34 (C21+C16+C16+C13)
Z1181
1570-1590, 670-690
BU35 (C20+C17+C17+C11)
Z1182
1670-1690, 670-690
BU36 (C21+C17+C17+C11)
Z1183
1670-1690, 730-750
BU37 (C21+C17+C17+C12)
Z1184
1670-1690, 770-790
BU38 (C21+C17+C17+C13) Z1185
All shower posts are constructed from
aluminium and can be installed with or
without chrome ball header. Safety glass is
8mm thick and 3MTM easy clean coating.
Shower tray prices exclude waste
Z1205
170
burlingtonbathrooms.com
All measurements shown are represented in cm
