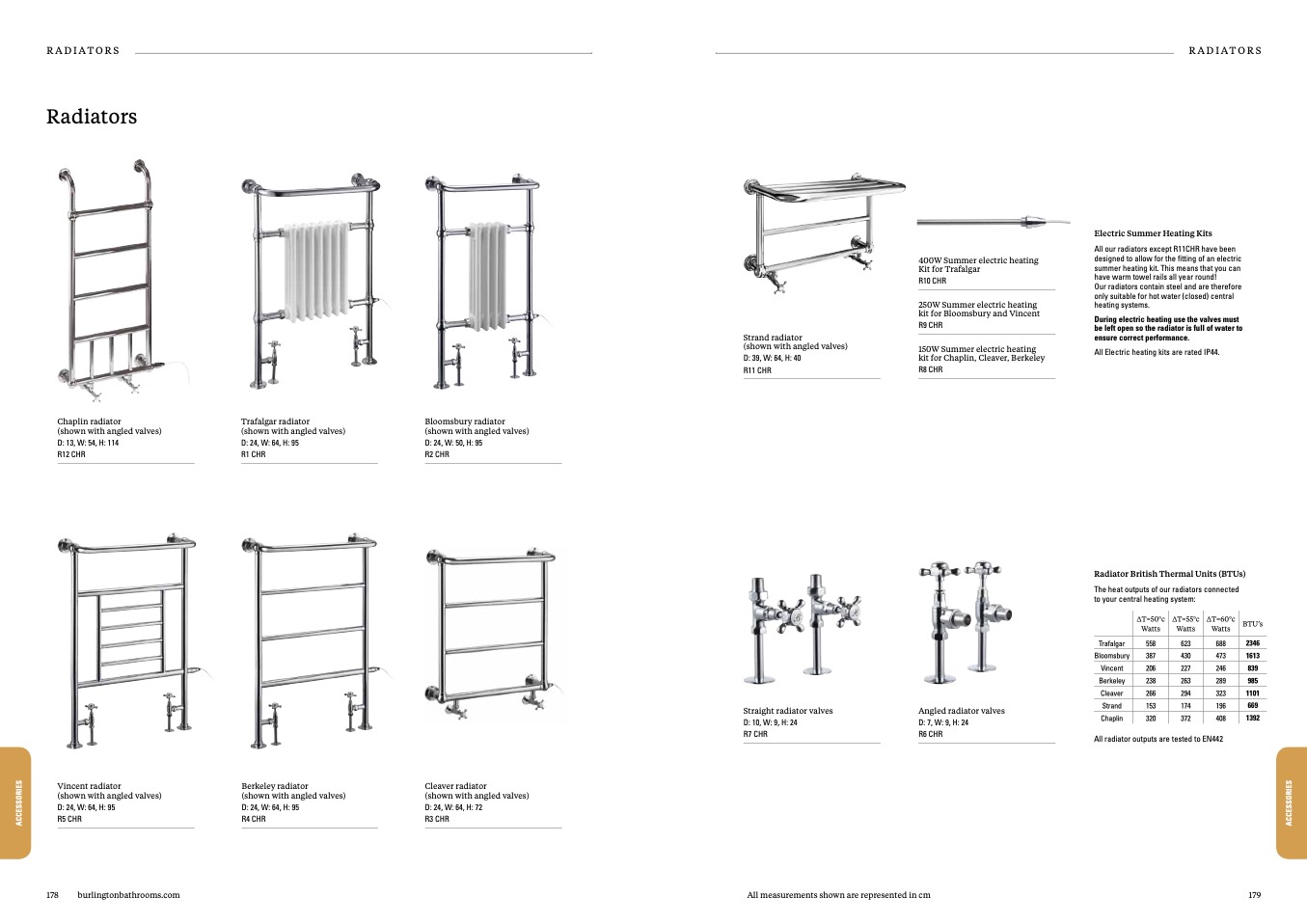

RADIATORS

RADIATORS

Radiators

Strand radiator

(shown with angled valves)

D: 39, W: 64, H: 40

R11 CHR

400W Summer electric heating

Kit for Trafalgar

R10 CHR

250W Summer electric heating

kit for Bloomsbury and Vincent

R9 CHR

150W Summer electric heating

kit for Chaplin, Cleaver, Berkeley

R8 CHR

Electric Summer Heating Kits

All our radiators except R11CHR have been

designed to allow for the fitting of an electric

summer heating kit. This means that you can

have warm towel rails all year round!

Our radiators contain steel and are therefore

only suitable for hot water (closed) central

heating systems.

During electric heating use the valves must

be left open so the radiator is full of water to

ensure correct performance.

All Electric heating kits are rated IP44.

Chaplin radiator

(shown with angled valves)

D: 13, W: 54, H: 114

R12 CHR

Trafalgar radiator

(shown with angled valves)

D: 24, W: 64, H: 95

R1 CHR

Bloomsbury radiator

(shown with angled valves)

D: 24, W: 50, H: 95

R2 CHR

Radiator British Thermal Units (BTUs)

The heat outputs of our radiators connected

to your central heating system:

558

623 688

387

430 473

206

227 246

238 263 289

266

294 323

153

174 196

Straight radiator valves

D: 10, W: 9, H: 24

R7 CHR

Angled radiator valves

D: 7, W: 9, H: 24

R6 CHR

Trafalgar

Bloomsbury

Vincent

Berkeley

Cleaver

Strand

Chaplin

Watts

320

Watts

372

Watts

2346

1613

839

985

1101

669

408

1392

∆T=50°c ∆T=55°c ∆T=60°c

BTU’s

All radiator outputs are tested to EN442

Vincent radiator

(shown with angled valves)

D: 24, W: 64, H: 95

R5 CHR

Berkeley radiator

(shown with angled valves)

D: 24, W: 64, H: 95

R4 CHR

Cleaver radiator

(shown with angled valves)

D: 24, W: 64, H: 72

R3 CHR

178

burlingtonbathrooms.com

All measurements shown are represented in cm
