350

Mindy

Accessori

Accessories

trattamento NEVERDROP®

treatment NEVERDROP®

Componenti in finitura

Finishing components

maniglia doppia

interasse 32 cm - colore.02

double handle

interaxe 32 cm - colore-02

Profili

Profiles

351

NEVERDROP

®

Art. 36A010004

Art. 36B010010

L

cm

L

cm

L

cm

sigillante cristallino SPARTAN®

sealant SPARTAN®

Mindy

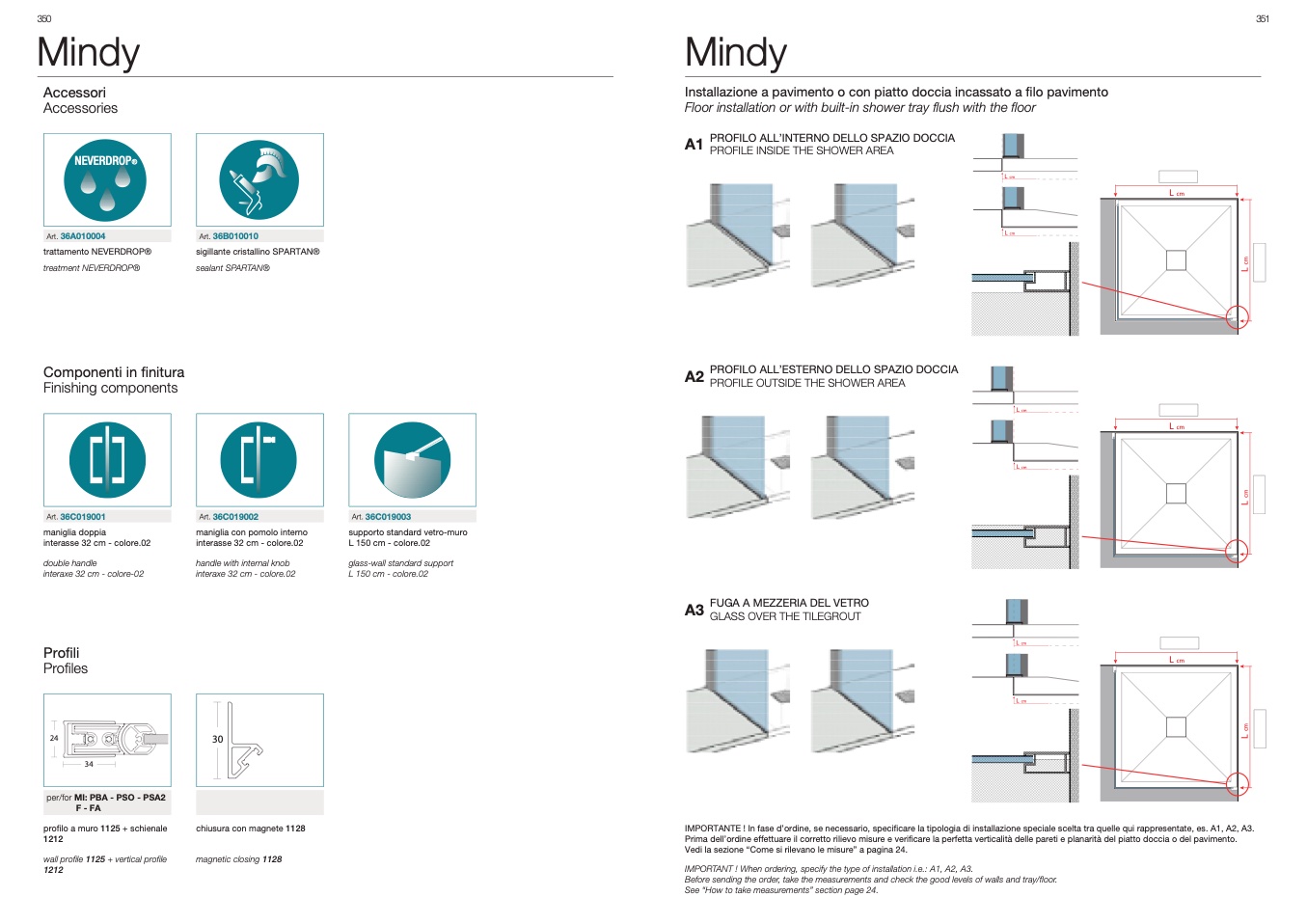

Installazione a pavimento o con piatto doccia incassato a filo pavimento

Floor installation or with built-in shower tray flush with the floor

A1

PROFILO ALL’INTERNO DELLO SPAZIO DOCCIA

PROFILE INSIDE THE SHOWER AREA

A2

PROFILO ALL’ESTERNO DELLO SPAZIO DOCCIA

PROFILE OUTSIDE THE SHOWER AREA

A3

FUGA A MEZZERIA DEL VETRO

GLASS OVER THE TILEGROUT

IMPORTANTE ! In fase d’ordine, se necessario, specificare la tipologia di installazione speciale scelta tra quelle qui rappresentate, es. A1, A2, A3.

Prima dell’ordine effettuare il corretto rilievo misure e verificare la perfetta verticalità delle pareti e planarità del piatto doccia o del pavimento.

Vedi la sezione “Come si rilevano le misure” a pagina 24.

IMPORTANT ! When ordering, specify the type of installation i.e.: A1, A2, A3.

Before sending the order, take the measurements and check the good levels of walls and tray/floor.

See “How to take measurements” section page 24.

L

cm

Art. 36C019001

Art. 36C019002

Art. 36C019003

L

cm

L

cm

maniglia con pomolo interno

interasse 32 cm - colore.02

handle with internal knob

interaxe 32 cm - colore.02

supporto standard vetro-muro

L 150 cm - colore.02

glass-wall standard support

L 150 cm - colore.02

L

cm

L

cm

24

34

per/for MI: PBA - PSO - PSA2

F - FA

30

L

cm

profilo a muro 1125 + schienale

1212

wall profile 1125 + vertical profile

1212

chiusura con magnete 1128

magnetic closing 1128

L

c

m

L

c

m

L

c

m
