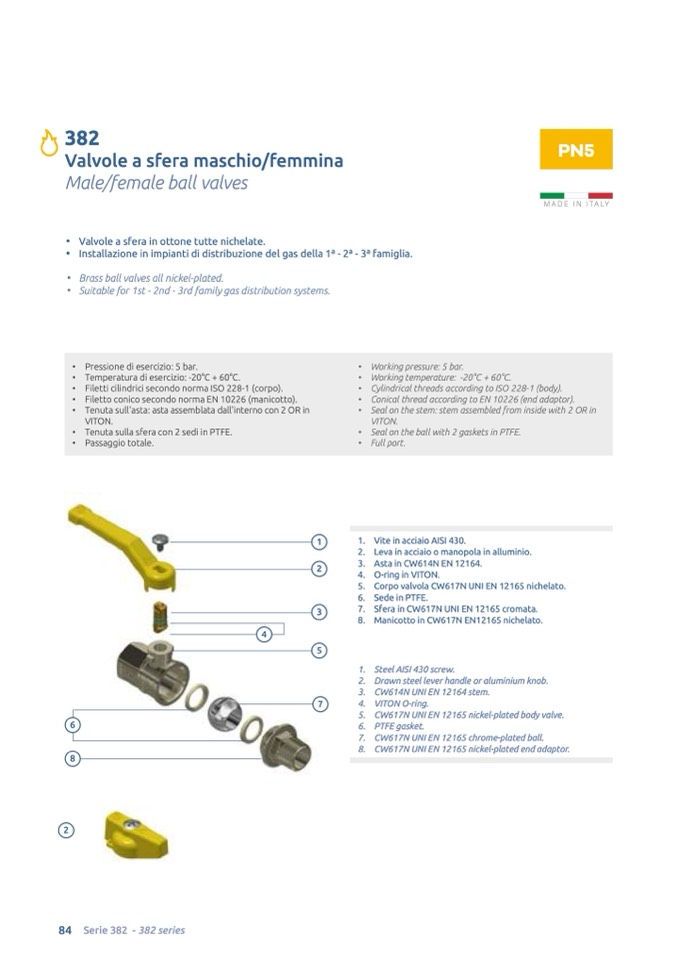

382

Valvole a sfera maschio/femmina

Male/female ball valves

• Valvole a sfera in ottone tutte nichelate.

• Installazione in impianti di distribuzione del gas della 1a - 2a - 3a famiglia.

• Brass ball valves all nickel-plated.

• Suitable for 1st - 2nd - 3rd family gas distribution systems.

PN5

• Pressione di esercizio: 5 bar.

• Temperatura di esercizio: -20°C + 60°C.

• Filetti cilindrici secondo norma ISO 228-1 (corpo).

• Filetto conico secondo norma EN 10226 (manicotto).

• Tenuta sull'asta: asta assemblata dall'interno con 2 OR in

VITON.

• Tenuta sulla sfera con 2 sedi in PTFE.

• Passaggio totale.

• Working pressure: 5 bar.

• Working temperature: -20°C + 60°C.

• Cylindrical threads according to ISO 228-1 (body).

• Conical thread according to EN 10226 (end adaptor).

• Seal on the stem: stem assembled from inside with 2 OR in

VITON.

• Seal on the ball with 2 gaskets in PTFE.

• Full port.

2

3

4

5

1

1.

2. Leva in acciaio o manopola in alluminio.

Vite in acciaio AISI 430.

3. Asta in CW614N EN 12164.

4. O-ring in VITON.

5. Corpo valvola CW617N UNI EN 12165 nichelato.

6. Sede in PTFE.

7. Sfera in CW617N UNI EN 12165 cromata.

8. Manicotto in CW617N EN12165 nichelato.

1. Steel AISI 430 screw.

2. Drawn steel lever handle or aluminium knob.

3. CW614N UNI EN 12164 stem.

7

4.

5. CW617N UNI EN 12165 nickel-plated body valve.

6. PTFE gasket.

7. CW617N UNI EN 12165 chrome-plated ball.

8. CW617N UNI EN 12165 nickel-plated end adaptor.

VITON O-ring.

6

8

2

84 Serie 382 - 382 series
