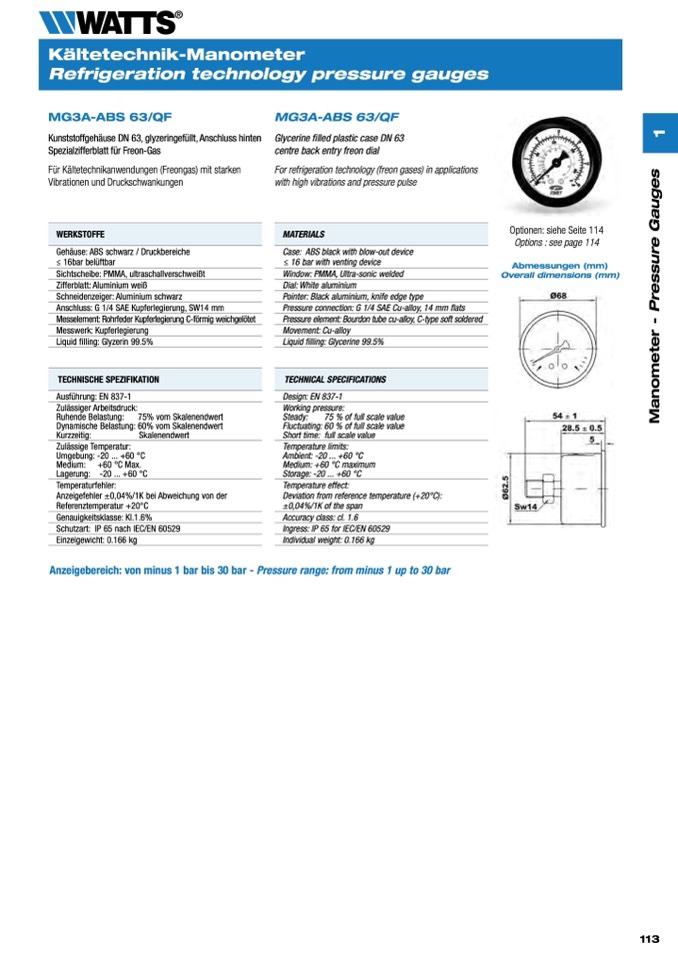

Kältetechnik-Manometer

Refrigeration technology pressure gauges

MG3A-ABS 63/QF

Kunststoffgehäuse DN 63, glyzeringefüllt, Anschluss hinten

Spezialzifferblatt für Freon-Gas

Für Kältetechnikanwendungen (Freongas) mit starken

Vibrationen und Druckschwankungen

WERKSTOFFE

Gehäuse: ABS schwarz / Druckbereiche

≤ 16bar belüftbar

Sichtscheibe: PMMA, ultraschallverschweißt

Zifferblatt: Aluminium weiß

Schneidenzeiger: Aluminium schwarz

Anschluss: G 1/4 SAE Kupferlegierung, SW14 mm

Messelement: Rohrfeder Kupferlegierung C-förmig weichgelötet

Messwerk: Kupferlegierung

Liquid filling: Glyzerin 99.5%

TECHNISCHE SPEZIFIKATION

Ausführung: EN 837-1

Zulässige Temperatur:

Umgebung: -20 ... +60 °C

Medium: +60 °C Max.

Lagerung: -20 ... +60 °C

Genauigkeitsklasse: Kl.1.6%

Schutzart: IP 65 nach IEC/EN 60529

Einzelgewicht: 0.166 kg

MG3A-ABS 63/QF

Glycerine filled plastic case DN 63

centre back entry freon dial

For refrigeration technology (freon gases) in applications

with high vibrations and pressure pulse

MATERIALS

Case: ABS black with blow-out device

≤ 16 bar with venting device

Window: PMMA, Ultra-sonic welded

Dial: White aluminium

Pointer: Black aluminium, knife edge type

Pressure connection: G 1/4 SAE Cu-alloy, 14 mm flats

Pressure element: Bourdon tube cu-alloy, C-type soft soldered

Movement: Cu-alloy

Liquid filling: Glycerine 99.5%

TECHNICAL SPECIFICATIONS

Design: EN 837-1

Temperature limits:

Ambient: -20 ... +60 °C

Medium: +60 °C maximum

Storage: -20 ... +60 °C

Accuracy class: cl. 1.6

Ingress: IP 65 for IEC/EN 60529

Individual weight: 0.166 kg

Optionen: siehe Seite 114

Options : see page 114

Abmessungen (mm)

Overall dimensions (mm)

Zulässiger Arbeitsdruck:

Ruhende Belastung:

75% vom Skalenendwert

Dynamische Belastung: 60% vom Skalenendwert

Kurzzeitig:

Skalenendwert

Working pressure:

Steady:

75 % of full scale value

Fluctuating: 60 % of full scale value

Short time: full scale value

Temperaturfehler:

Anzeigefehler ±0,04%/1K bei Abweichung von der

Referenztemperatur +20°C

Anzeigebereich: von minus 1 bar bis 30 bar - Pressure range: from minus 1 up to 30 bar

Temperature effect:

Deviation from reference temperature (+20°C):

±0,04%/1K of the span
