Thermo-Manometer

Thermomanometers

WERKSTOFFE

Zeiger: Kunststoff schwarz

Temperaturelement: Bimetallspirale

TECHNISCHE SPEZIFIKATION

Schutzart: IP 31 nach IEC/EN 60529

MATERIALS

Window: Clear plastic with adjustable red mark pointer

Pointer: Black plastic

Temperature element: Bimetal spiralled

TECHNICAL SPECIFICATIONS

Ingress: IP 31 for EN 60 529 / IEC 529

Sichtscheibe: Kunststoff transparent mit rotem

Markenzeiger einstellbar

Flats Pressure element:

Bourdon tube Cu-alloy C-type, soft soldered

Messelement: Rohrfeder Kupferlegierung

C-förmig, weichgelötet

Zulässiger Arbeitsdruck:

Ruhende Belastung: 75% vom Skalenendwert

Dynamische Belastung: 60% vom Skalenendwert

Kurzzeitig: Skalenendwert

Working pressure:

Steady: 75 % of full scale value

Fluctuating: 60 % of full scale value

Short time: full scale value

Temperaturfehler:

Anzeigefehler ±0,04%/1K bei Abweichung von der

Referenztemperatur +20°C

Temperature effect:

For pressure only: deviation from reference temperature

(+20°C): ±0,04%/1K of the span

Optionen - Optional extras

MINDESTBESTELLMENGE AUF ANFRAGE

OPTIONS SUBJECT TO MINIMUM QUANTITY

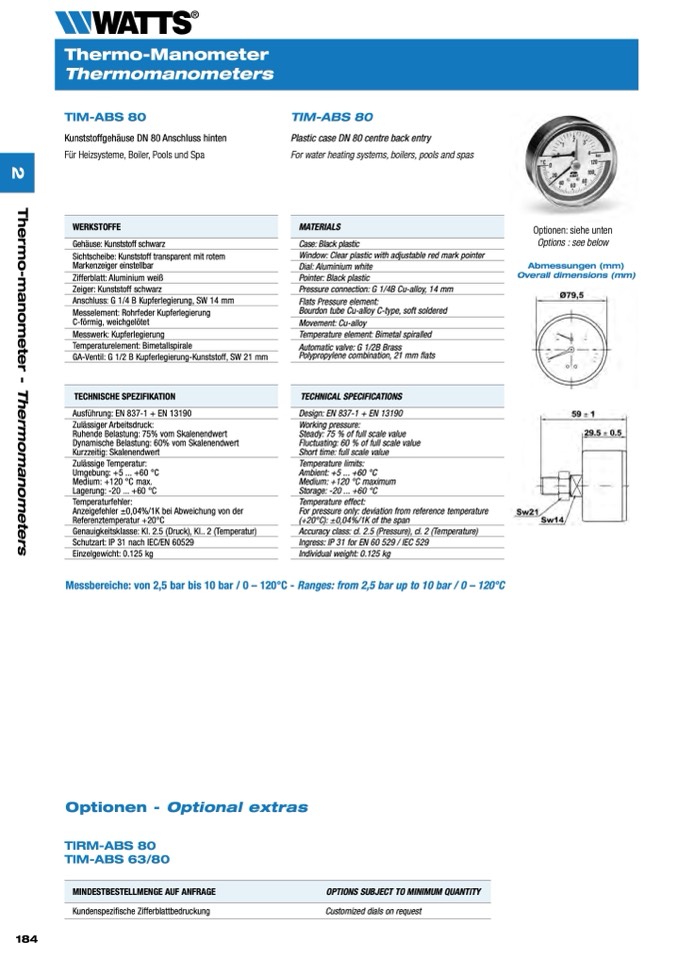

TIM-ABS 80

Kunststoffgehäuse DN 80 Anschluss hinten

Für Heizsysteme, Boiler, Pools und Spa

Gehäuse: Kunststoff schwarz

Zifferblatt: Aluminium weiß

Anschluss: G 1/4 B Kupferlegierung, SW 14 mm

Messwerk: Kupferlegierung

GA-Ventil: G 1/2 B Kupferlegierung-Kunststoff, SW 21 mm

Ausführung: EN 837-1 + EN 13190

Zulässige Temperatur:

Umgebung: +5 ... +60 °C

Medium: +120 °C max.

Lagerung: -20 ... +60 °C

Genauigkeitsklasse: Kl. 2.5 (Druck), Kl.. 2 (Temperatur)

Einzelgewicht: 0.125 kg

TIM-ABS 80

Plastic case DN 80 centre back entry

For water heating systems, boilers, pools and spas

Case: Black plastic

Dial: Aluminium white

Pressure connection: G 1/4B Cu-alloy, 14 mm

Movement: Cu-alloy

Automatic valve: G 1/2B Brass

Polypropylene combination, 21 mm flats

Design: EN 837-1 + EN 13190

Temperature limits:

Ambient: +5 ... +60 °C

Medium: +120 °C maximum

Storage: -20 ... +60 °C

Accuracy class: cl. 2.5 (Pressure), cl. 2 (Temperature)

Individual weight: 0.125 kg

Optionen: siehe unten

Options : see below

Abmessungen (mm)

Overall dimensions (mm)

Messbereiche: von 2,5 bar bis 10 bar / 0 – 120°C - Ranges: from 2,5 bar up to 10 bar / 0 – 120°C

TIRM-ABS 80

TIM-ABS 63/80

Kundenspezifische Zifferblattbedruckung

Customized dials on request
