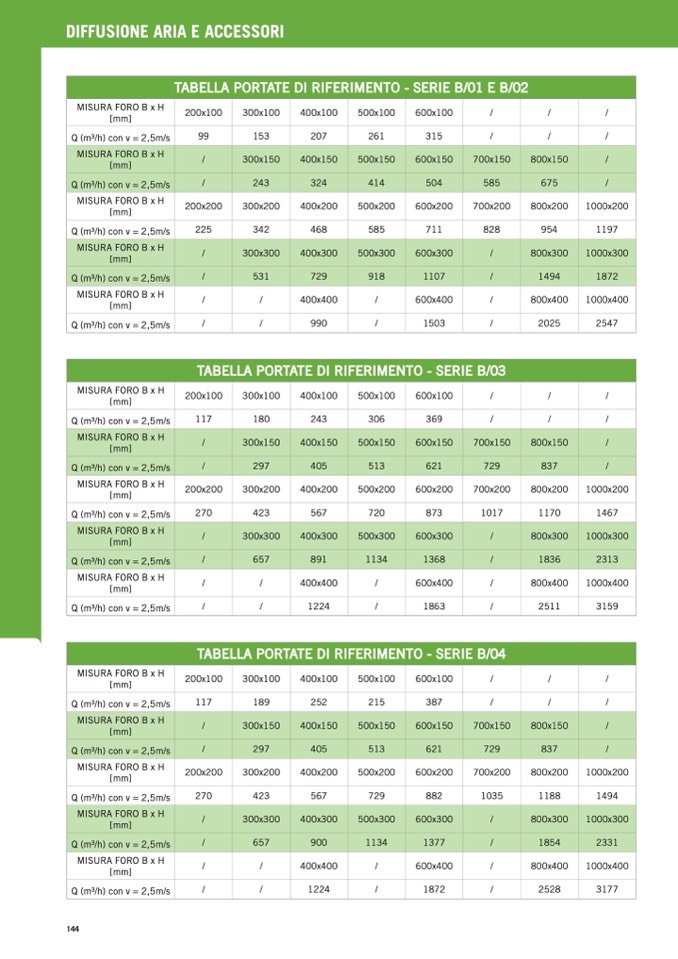

DIFFUSIONE ARIA E ACCESSORI
TABELLA PORTATE DI RIFERIMENTO - SERIE B/01 E B/02
MISURA FORO B x H
[mm]
200x100
300x100
400x100
500x100
600x100
/
/
/
Q (m3/h) con v = 2,5m/s
99
153
207
261
315
/
/
/
MISURA FORO B x H
[mm]
/
300x150
400x150
500x150
600x150
700x150
800x150
/
Q (m3/h) con v = 2,5m/s
/
243
324
414
504
585
675
/
MISURA FORO B x H
[mm]
200x200
300x200
400x200
500x200
600x200
700x200
800x200
1000x200
Q (m3/h) con v = 2,5m/s
225
342
468
585
711
828
954
1197
MISURA FORO B x H
[mm]
/
300x300
400x300
500x300
600x300
/
800x300
1000x300
Q (m3/h) con v = 2,5m/s
/
531
729
918
1107
/
1494
1872
MISURA FORO B x H
[mm]
/
/
400x400
/
600x400
/
800x400
1000x400
Q (m3/h) con v = 2,5m/s
/
/
990
/
1503
/
2025
2547
TABELLA PORTATE DI RIFERIMENTO - SERIE B/03
MISURA FORO B x H
[mm]
200x100
300x100
400x100
500x100
600x100
/
/
/
Q (m3/h) con v = 2,5m/s
117
180
243
306
369
/
/
/
MISURA FORO B x H
[mm]
/
300x150
400x150
500x150
600x150
700x150
800x150
/
Q (m3/h) con v = 2,5m/s
/
297
405
513
621
729
837
/
MISURA FORO B x H
[mm]
200x200
300x200
400x200
500x200
600x200
700x200
800x200
1000x200
Q (m3/h) con v = 2,5m/s
270
423
567
720
873
1017
1170
1467
MISURA FORO B x H
[mm]
/
300x300
400x300
500x300
600x300
/
800x300
1000x300
Q (m3/h) con v = 2,5m/s
/
657
891
1134
1368
/
1836
2313
MISURA FORO B x H
[mm]
/
/
400x400
/
600x400
/
800x400
1000x400
Q (m3/h) con v = 2,5m/s
/
/
1224
/
1863
/
2511
3159
TABELLA PORTATE DI RIFERIMENTO - SERIE B/04
MISURA FORO B x H
[mm]
MISURA FORO B x H
[mm]
MISURA FORO B x H
[mm]
200x100
300x100
200x200
/
/
400x100
500x100
400x200
500x200
600x100
/
600x200
700x200
/
800x200
800x400
/
1000x200
1000x400
Q (m3/h) con v = 2,5m/s
Q (m3/h) con v = 2,5m/s
144
117
/
189
300x150
252
400x150
567
215
500x150
729
387
600x150
882
/
700x150
1035
/
800x150
1188
/
MISURA FORO B x H
[mm]
MISURA FORO B x H
[mm]
/
300x300
400x300
500x300
600x300
/
600x400
/
/
800x300
/
Q (m3/h) con v = 2,5m/s
/
297
405
513
621
729
837
/
300x200
270
423
1494
1000x300
Q (m3/h) con v = 2,5m/s
/
657
900
400x400
1134
1377
/
1854
2331
Q (m3/h) con v = 2,5m/s
/
/
1224
/
1872
/
2528
3177
