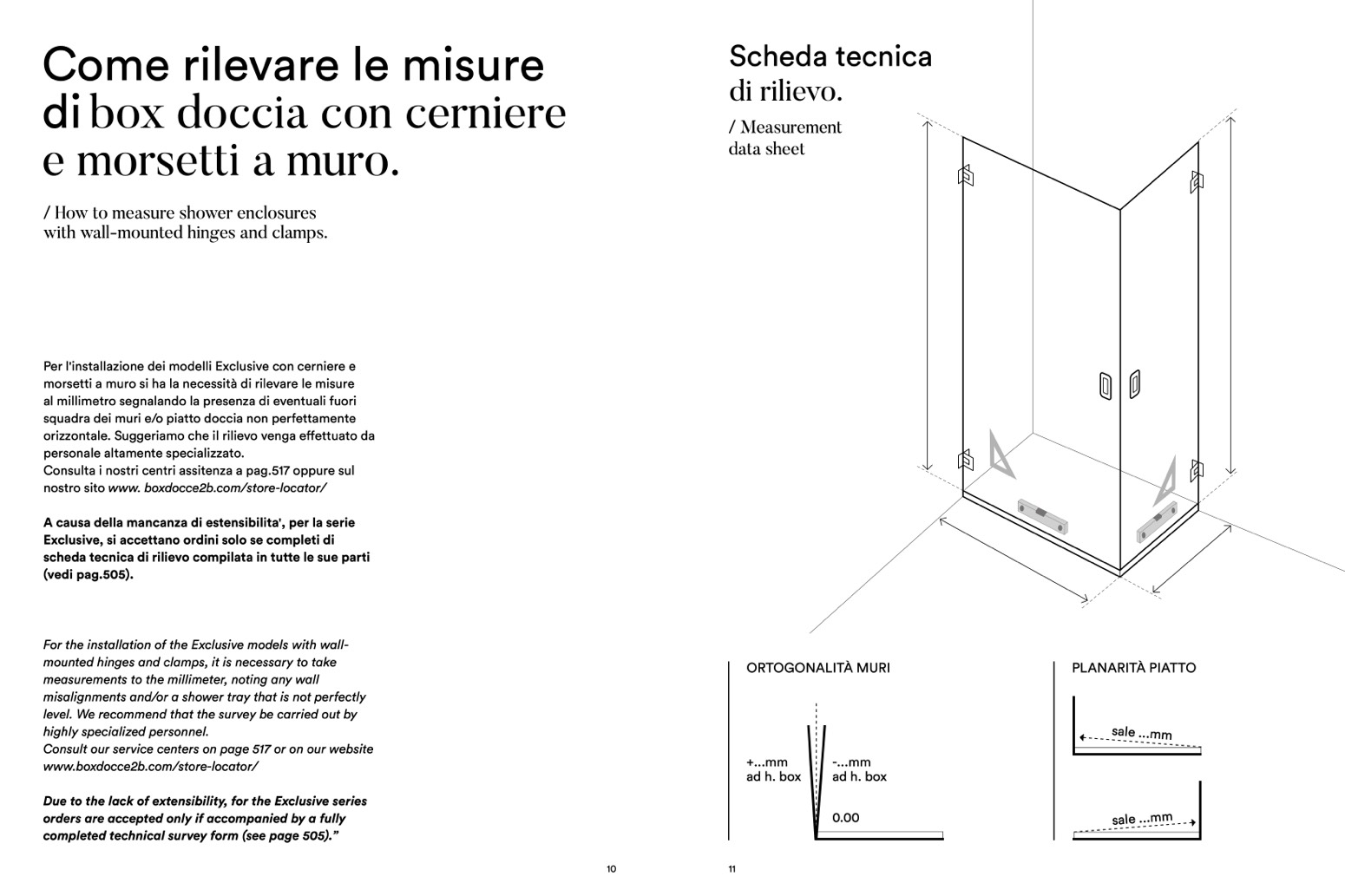

Come rilevare le misur

e

di box doccia con cernier

e

e morsetti a muro

.

Scheda tecnica

di rilievo.

/ Measurement

data sheet

/ How to measure shower enclosures

with wall-mounted hinges and clamps

.

Per l'installazione dei modelli Exclusive con cerniere

e

morsetti a muro si ha la necessità di rilevare le misur

e

al millimetro segnalando la presenza di eventuali fuori

squadra dei muri e/o piatto doccia non perfettament

e

orizzontale. Suggeriamo che il rilievo venga effettuato da

personale altamente specializzato

.

Consulta i nostri centri assitenza a pag.517 oppure su

l

nostro sito www. boxdocce2b.com/store-locator/

A causa della mancanza di estensibilita', per la seri

e

Exclusive, si accettano ordini solo se completi d

i

scheda tecnica di rilievo compilata in tutte le sue part

i

(vedi pag.505).

For the installation of the Exclusive models with wall-

mounted hinges and clamps, it is necessary to take

measurements to the millimeter, noting any wall

misalignments and/or a shower tray that is not perfectly

level. We recommend that the survey be carried out by

highly specialized personnel

.

Consult our service centers on page 517 or on our websit

e

www.boxdocce2b.com/store-locator/

ORTOGONALITÀ MURI

PLANARITÀ PIATT

O

sa

le

.

..m

m

+...m

m

ad h. box

-...m

m

ad h. box

Due to the lack of extensibility, for the Exclusive serie

s

orders are accepted only if accompanied by a fully

completed technical survey form (see page 505).”
