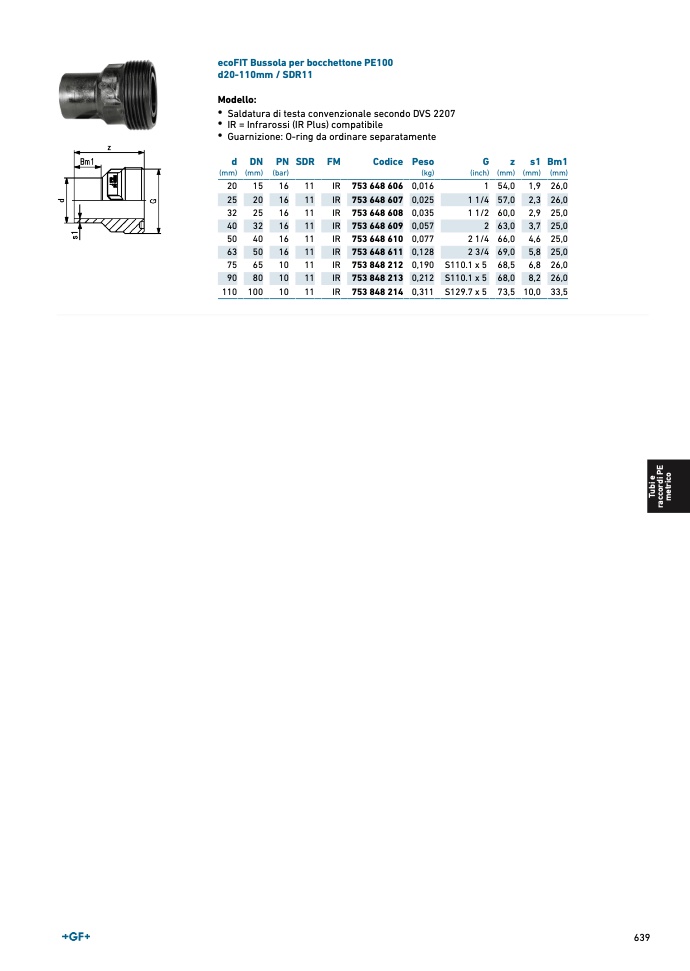

ecoFIT Bussola per bocchettone PE10
0
d20-110mm / SDR11
Modello
:
• Saldatura di testa convenzionale secondo DVS 220
7
• IR = Infrarossi (IR Plus) compatibil
e
• Guarnizione: O-ring da ordinare separatamente
d
(mm
)
D
N
(mm
)
P
N
(bar)
SDR FM
Codice Pes
o
(kg)
G
(inch)
z
(mm)
s
1
(mm
)
Bm
1
(mm)
20
15
16
11
IR 753 648 606 0,016
1 54,0 1,9 26,
0
25
20
16
11
IR 753 648 607 0,025
1 1/4 57,0 2,3 26,
0
32
25
16
11
IR 753 648 608 0,035
1 1/2 60,0 2,9 25,
0
40
32
16
11
IR 753 648 609 0,057
2 63,0 3,7 25,
0
50
40
16
11
IR 753 648 610 0,077
2 1/4 66,0 4,6 25,
0
63
50
16
11
IR 753 648 611 0,128
2 3/4 69,0 5,8 25,
0
75
65
10
11
IR 753 848 212 0,190 S110.1 x 5 68,5 6,8 26,
0
90
80
10
11
IR 753 848 213 0,212 S110.1 x 5 68,0 8,2 26,
0
110 100
10
11
IR 753 848 214 0,311 S129.7 x 5 73,5 10,0 33,
5
