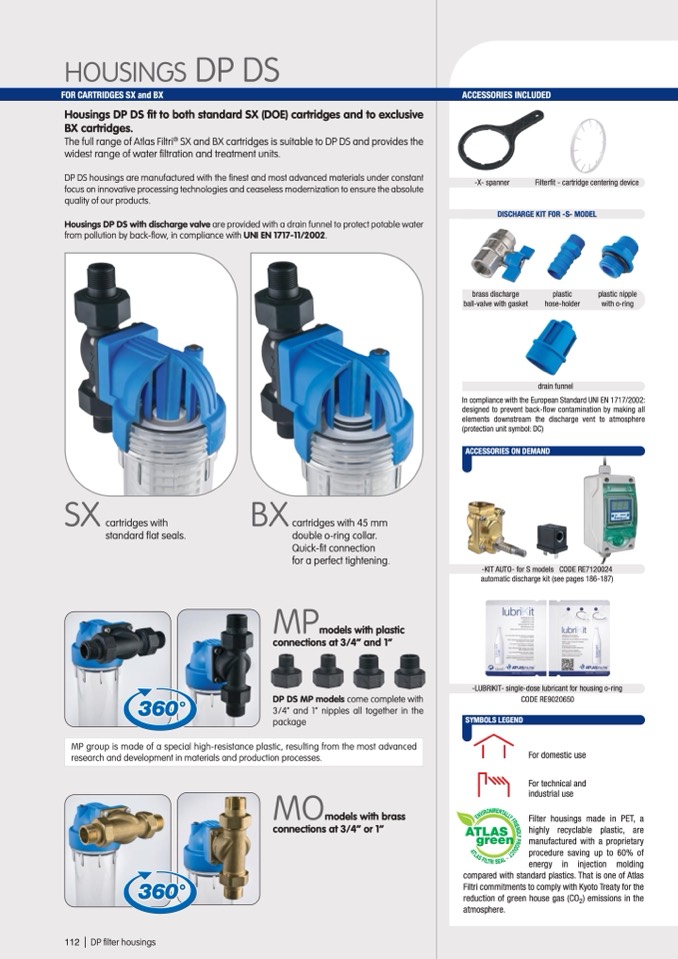

HOUSINGS DP DS

FOR CARTRIDGES SX and BX

ACCESSORIES INCLUDED

Housings DP DS fit to both standard SX (DOE) cartridges and to exclusive

BX cartridges.

The full range of Atlas Filtri

®

SX and BX cartridges is suitable to DP DS and provides the

widest range of water filtration and treatment units.

DP DS housings are manufactured with the finest and most advanced materials under constant

focus on innovative processing technologies and ceaseless modernization to ensure the absolute

quality of our products.

Housings DP DS with discharge valve are provided with a drain funnel to protect potable water

from pollution by back-flow, in compliance with UNI EN 1717-11/2002.

SX

cartridges with

standard flat seals.

BX

cartridges with 45 mm

double o-ring collar.

Quick-fit connection

for a perfect tightening.

MP

models with plastic

connections at 3/4” and 1”

DP DS MP models come complete with

3/4” and 1” nipples all together in the

package

MO

models with brass

connections at 3/4” or 1”

360 °

MP group is made of a special high-resistance plastic, resulting from the most advanced

research and development in materials and production processes.

360°

112 | DP filter housings

O

N

S

V

I

A

L

E

N

-

E

D

L

Y

P

R

O

R

I

A

D

U

Y

F

T

L

C

T

L

L

A

S

T

A

F

I

N

L

T

-X- spanner

Filterfit - cartridge centering device

DISCHARGE KIT FOR -S- MODEL

brass discharge

plastic

plastic nipple

ball-valve with gasket

hose-holder

with o-ring

drain funnel

In compliance with the European Standard UNI EN 1717/2002:

designed to prevent back-flow contamination by making all

elements downstream the discharge vent to atmosphere

(protection unit symbol: DC)

ACCESSORIES ON DEMAND

-KIT AUTO- for S models CODE RE7120024

automatic discharge kit (see pages 186-187)

-LUBRIKIT- single-dose lubricant for housing o-ring

CODE RE9020650

SYMBOLS LEGEND

M

E

ATLAS

green

R

I

For domestic use

For technical and

industrial use

Filter housings made in PET, a

highly recyclable plastic, are

manufactured with a proprietary

procedure saving up to 60% of

energy in injection molding

compared with standard plastics. That is one of Atlas

Filtri commitments to comply with Kyoto Treaty for the

reduction of green house gas (CO

2

) emissions in the

atmosphere.
