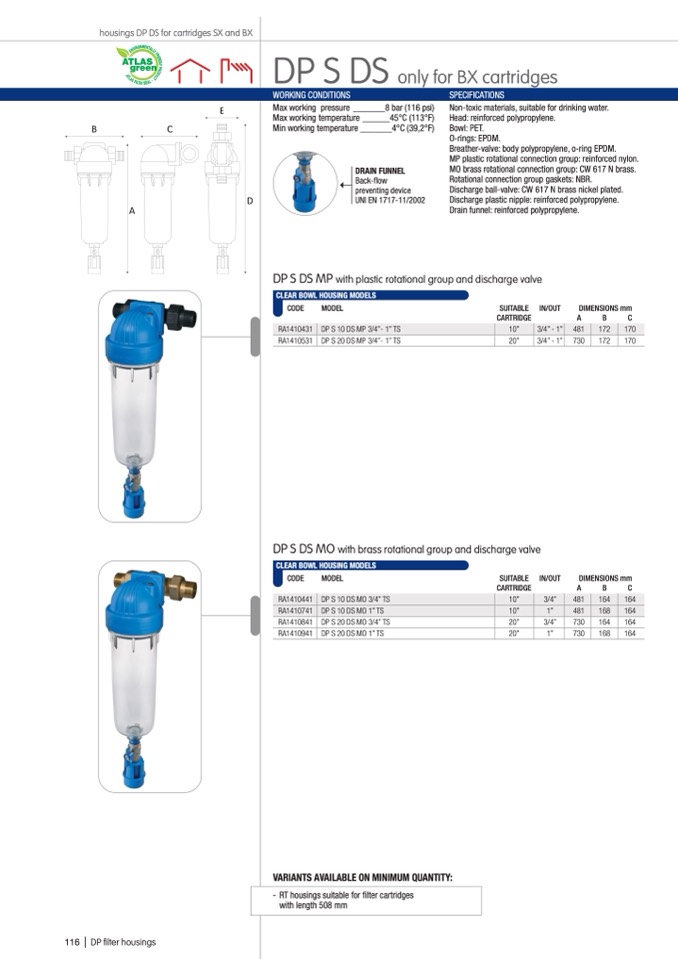

housings DP DS for cartridges SX and BX

O

N

S

E

V

I

R

A

L

N

-

E

N

D

L

Y

P

R

I

A

M

E

ATLAS

green

R

I

B

C

A

E

D

DP S DS

only for BX cartridges

WORKING CONDITIONS

SPECIFICATIONS

Max working pressure _______8 bar (116 psi)

Max working temperature ______45°C (113°F)

Min working temperature _______4°C (39,2°F)

DRAIN FUNNEL

Back-flow

preventing device

UNI EN 1717-11/2002

Non-toxic materials, suitable for drinking water.

Head: reinforced polypropylene.

Bowl: PET.

O-rings: EPDM.

Breather-valve: body polypropylene, o-ring EPDM.

MP plastic rotational connection group: reinforced nylon.

MO brass rotational connection group: CW 617 N brass.

Rotational connection group gaskets: NBR.

Discharge ball-valve: CW 617 N brass nickel plated.

Discharge plastic nipple: reinforced polypropylene.

Drain funnel: reinforced polypropylene.

DP S DS MP with plastic rotational group and discharge valve

CLEAR BOWL HOUSING MODELS

CODE

MODEL

SUITABLE

IN/OUT

CARTRIDGE

RA1410531 DP S 20 DS MP 3/4”- 1” TS

20”

3/4” - 1”

DIMENSIONS mm

A

B

C

730

172

170

DP S DS MO with brass rotational group and discharge valve

CLEAR BOWL HOUSING MODELS

CODE

RA1410841

RA1410941

MODEL

SUITABLE

CARTRIDGE

IN/OUT

DIMENSIONS mm

VARIANTS AVAILABLE ON MINIMUM QUANTITY:

A

B

C

164

164

➝

RA1410431 DP S 10 DS MP 3/4”- 1” TS

10”

3/4” - 1”

481

172

170

RA1410441

DP S 10 DS MO 3/4” TS

10”

3/4”

481

164

164

RA1410741

DP S 10 DS MO 1” TS

10”

1”

481

168

164

DP S 20 DS MO 3/4” TS

20”

3/4”

730

164

DP S 20 DS MO 1” TS

20”

1”

730

168

116 | DP filter housings

- RT housings suitable for filter cartridges

with length 508 mm
