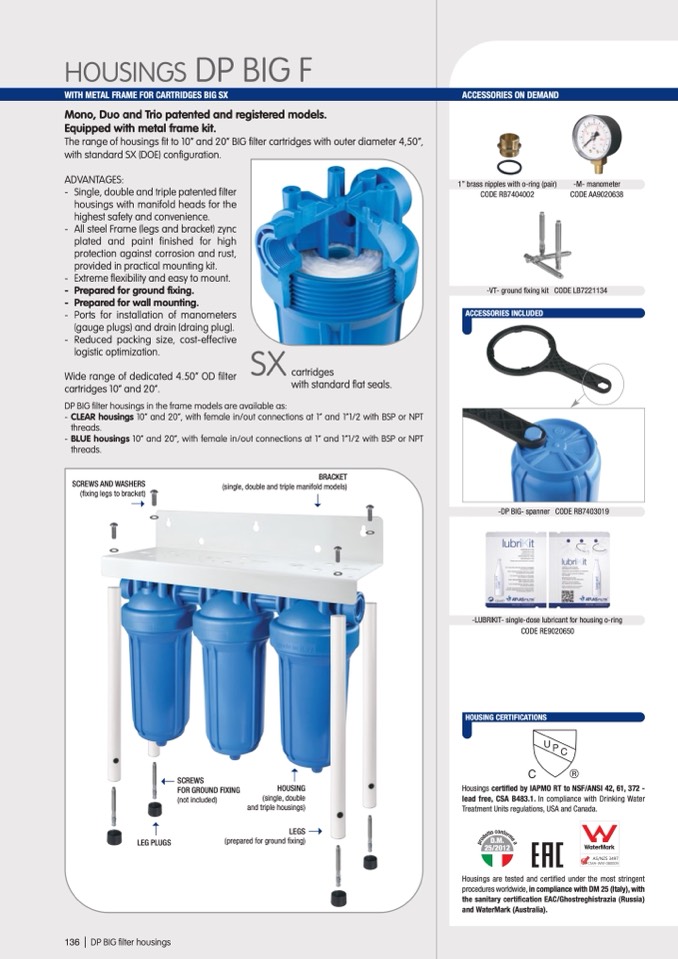

HOUSINGS DP BIG F

WITH METAL FRAME FOR CARTRIDGES BIG SX

Mono, Duo and Trio patented and registered models.

Equipped with metal frame kit.

The range of housings fit to 10” and 20” BIG filter cartridges with outer diameter 4,50”,

with standard SX (DOE) configuration.

ACCESSORIES ON DEMAND

1” brass nipples with o-ring (pair)

CODE RB7404002

ADVANTAGES:

- Single, double and triple patented filter

housings with manifold heads for the

highest safety and convenience.

- All steel Frame (legs and bracket) zync

plated and paint finished for high

protection against corrosion and rust,

provided in practical mounting kit.

- Extreme flexibility and easy to mount.

- Prepared for ground fixing.

- Prepared for wall mounting.

- Ports for installation of manometers

(gauge plugs) and drain (draing plug).

- Reduced packing size, cost-effective

logistic optimization.

Wide range of dedicated 4.50” OD filter

cartridges 10” and 20”.

-M- manometer

CODE AA9020638

DP BIG filter housings in the frame models are available as:

- CLEAR housings 10” and 20”, with female in/out connections at 1” and 1”1/2 with BSP or NPT

threads.

- BLUE housings 10” and 20”, with female in/out connections at 1” and 1”1/2 with BSP or NPT

threads.

SCREWS AND WASHERS

(fixing legs to bracket)

➝

BRACKET

(single, double and triple manifold models)

136 | DP BIG filter housings

LEG PLUGS

LEGS

➝

(prepared for ground fixing)

SCREWS

FOR GROUND FIXING

(not included)

HOUSING

(single, double

and triple housings)

-LUBRIKIT- single-dose lubricant for housing o-ring

CODE RE9020650

HOUSING CERTIFICATIONS

Housings certified by IAPMO RT to NSF/ANSI 42, 61, 372 -

lead free, CSA B483.1. In compliance with Drinking Water

Treatment Units regulations, USA and Canada.

Housings are tested and certified under the most stringent

procedures worldwide, in compliance with DM 25 (Italy), with

the sanitary certification EAC/Ghostreghistrazia (Russia)

and WaterMark (Australia).

SX

cartridges

with standard flat seals.

-VT- ground fixing kit

ACCESSORIES INCLUDED

CODE LB7221134

-DP BIG- spanner

CODE RB7403019

➝

➝

➝

➝
