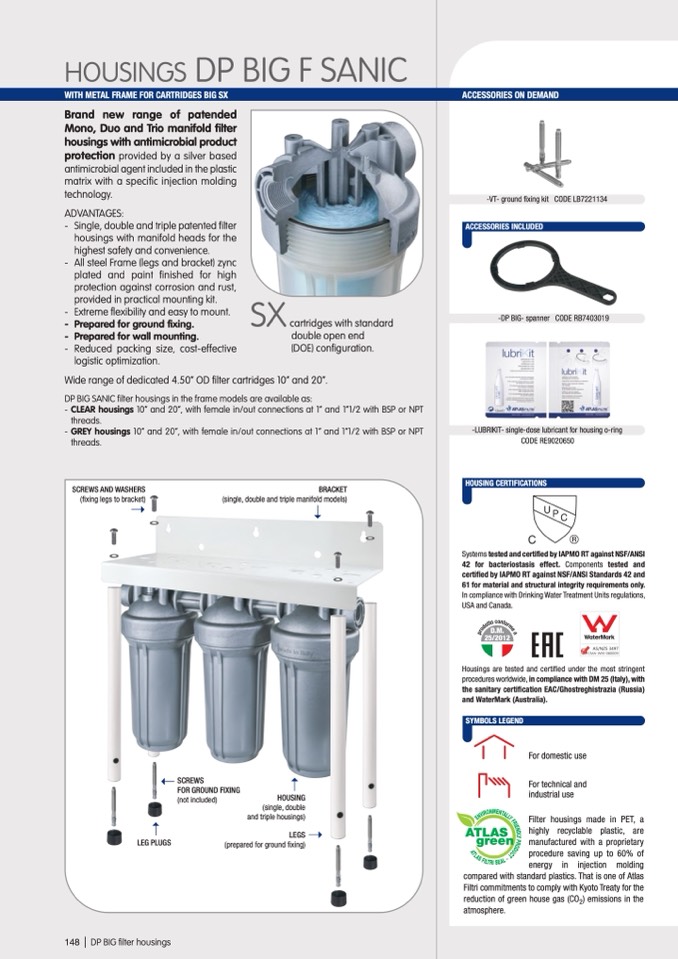

HOUSINGS DP BIG F SANIC

WITH METAL FRAME FOR CARTRIDGES BIG SX

Brand new range of patended

Mono, Duo and Trio manifold filter

housings with antimicrobial product

protection provided by a silver based

antimicrobial agent included in the plastic

matrix with a specific injection molding

technology.

ADVANTAGES:

- Single, double and triple patented filter

housings with manifold heads for the

highest safety and convenience.

- All steel Frame (legs and bracket) zync

plated and paint finished for high

protection against corrosion and rust,

provided in practical mounting kit.

- Extreme flexibility and easy to mount.

- Prepared for ground fixing.

- Prepared for wall mounting.

- Reduced packing size, cost-effective

logistic optimization.

SX

cartridges with standard

double open end

(DOE) configuration.

ACCESSORIES ON DEMAND

-VT- ground fixing kit

CODE LB7221134

ACCESSORIES INCLUDED

-DP BIG- spanner

CODE RB7403019

-LUBRIKIT- single-dose lubricant for housing o-ring

CODE RE9020650

HOUSING CERTIFICATIONS

Systems tested and certified by IAPMO RT against NSF/ANSI

42 for bacteriostasis effect. Components tested and

certified by IAPMO RT against NSF/ANSI Standards 42 and

61 for material and structural integrity requirements only.

In compliance with Drinking Water Treatment Units regulations,

USA and Canada.

Housings are tested and certified under the most stringent

procedures worldwide, in compliance with DM 25 (Italy), with

the sanitary certification EAC/Ghostreghistrazia (Russia)

and WaterMark (Australia).

Wide range of dedicated 4.50” OD filter cartridges 10” and 20”.

DP BIG SANIC filter housings in the frame models are available as:

- CLEAR housings 10” and 20”, with female in/out connections at 1” and 1”1/2 with BSP or NPT

threads.

- GREY housings 10” and 20”, with female in/out connections at 1” and 1”1/2 with BSP or NPT

threads.

SCREWS AND WASHERS

(fixing legs to bracket)

➝

BRACKET

(single, double and triple manifold models)

148 | DP BIG filter housings

LEG PLUGS

LEGS

➝

(prepared for ground fixing)

SCREWS

FOR GROUND FIXING

(not included)

HOUSING

(single, double

and triple housings)

SYMBOLS LEGEND

M

E

ATLAS

green

R

I

For domestic use

For technical and

industrial use

Filter housings made in PET, a

highly recyclable plastic, are

manufactured with a proprietary

procedure saving up to 60% of

energy in injection molding

compared with standard plastics. That is one of Atlas

Filtri commitments to comply with Kyoto Treaty for the

reduction of green house gas (CO

2

) emissions in the

atmosphere.
