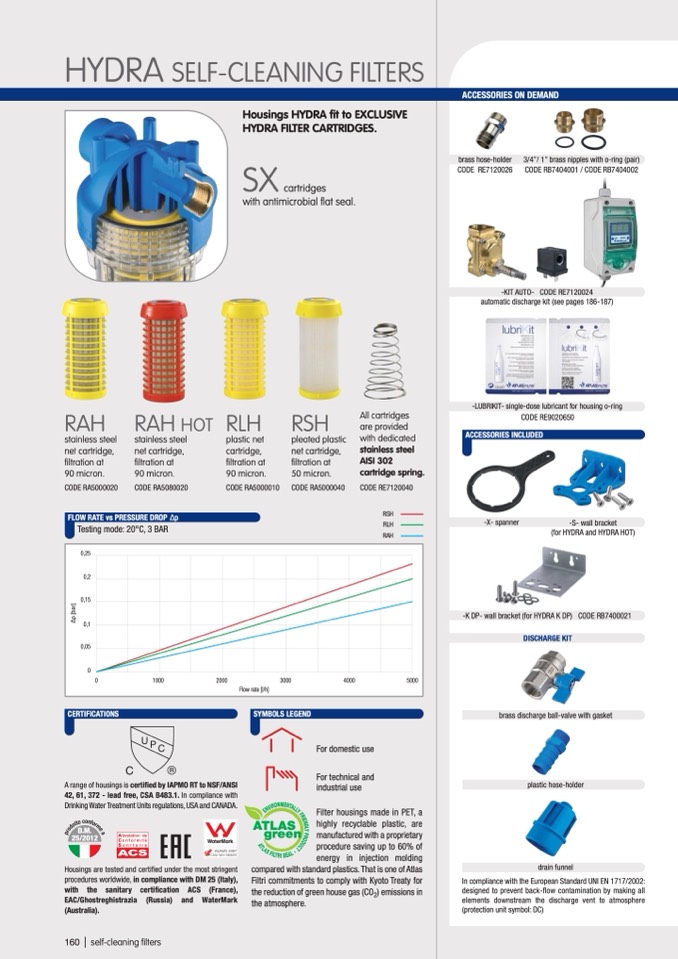

HYDRA SELF-CLEANING FILTERS

Housings HYDRA fit to EXCLUSIVE

HYDRA FILTER CARTRIDGES.

ACCESSORIES ON DEMAND

brass hose-holder

3/4”/ 1” brass nipples with o-ring (pair)

CODE RE7120026

CODE RB7404001 / CODE RB7404002

-KIT AUTO- CODE RE7120024

automatic discharge kit (see pages 186-187)

-LUBRIKIT- single-dose lubricant for housing o-ring

CODE RE9020650

RAH

RAH HOT

RLH

RSH

stainless steel

stainless steel

plastic net

pleated plastic

net cartridge,

net cartridge,

cartridge,

net cartridge,

filtration at

filtration at

filtration at

filtration at

90 micron.

90 micron.

90 micron.

50 micron.

All cartridges

are provided

with dedicated

stainless steel

AISI 302

cartridge spring.

ACCESSORIES INCLUDED

-X- spanner

CODE RA5000020

CODE RA5080020

FLOW RATE vs PRESSURE DROP Δp

Testing mode: 20°C, 3 BAR

CODE RA5000010

CODE RA5000040

CODE RE7120040

0,25

0,2

0,15

0,1

0,05

0

CERTIFICATIONS

1000

2000

3000

4000

5000

-K DP- wall bracket (for HYDRA K DP)

CODE RB7400021

DISCHARGE KIT

brass discharge ball-valve with gasket

plastic hose-holder

drain funnel

In compliance with the European Standard UNI EN 1717/2002:

designed to prevent back-flow contamination by making all

elements downstream the discharge vent to atmosphere

(protection unit symbol: DC)

0

A range of housings is certified by IAPMO RT to NSF/ANSI

42, 61, 372 - lead free, CSA B483.1. In compliance with

Drinking Water Treatment Units regulations, USA and CANADA.

SYMBOLS LEGEND

M

E

ATLAS

green

R

I

For domestic use

For technical and

industrial use

SX

cartridges

with antimicrobial flat seal.

Flow rate [l/h]

Housings are tested and certified under the most stringent

compared with standard plastics. That is one of Atlas

procedures worldwide, in compliance with DM 25 (Italy),

Filtri commitments to comply with Kyoto Treaty for

with the sanitary certification ACS (France),

the reduction of green house gas (CO

2

) emissions in

EAC/Ghostreghistrazia (Russia) and WaterMark

the atmosphere.

(Australia).

160 | self-cleaning filters

Filter housings made in PET, a

highly recyclable plastic, are

manufactured with a proprietary

procedure saving up to 60% of

energy in injection molding

RSH

RLH

RAH

-S- wall bracket

(for HYDRA and HYDRA HOT)
