HYDRA single-stage self cleaning filters

S

E

L

F

-

C

L

E

A

N

I

N

G

F

I

L

T

E

R

S

O

N

S

E

V

I

R

A

L

N

-

E

N

D

L

Y

R

I

A

F

T

M

ATLAS

green

R

I

HYDRA M

WORKING CONDITIONS

SPECIFICATIONS

B

C

A

Max working pressure:

BSP versions ____________8 bar (116 psi)

NPT versions ___________8,6 bar (125 psi)

Min working pressure _______1,8 bar (26 psi)

Max working temperature ______45°C (113°F)

Min working temperature _______4°C (39,2°F)

DRAIN FUNNEL

Back-flow

preventing device

UNI EN 1717-11/2002

Non-toxic materials, suitable for drinking water.

Head: reinforced polypropylene.

Bowl: PET.

O-ring: EPDM.

IN/OUT brass threads: CW 617 N brass.

Manometers: radial type, pressure range 0-12 bar, 0-170 psi.

Discharge ball-valve: CW 617 N brass nickel plated.

Drain funnel: reinforced polypropylene.

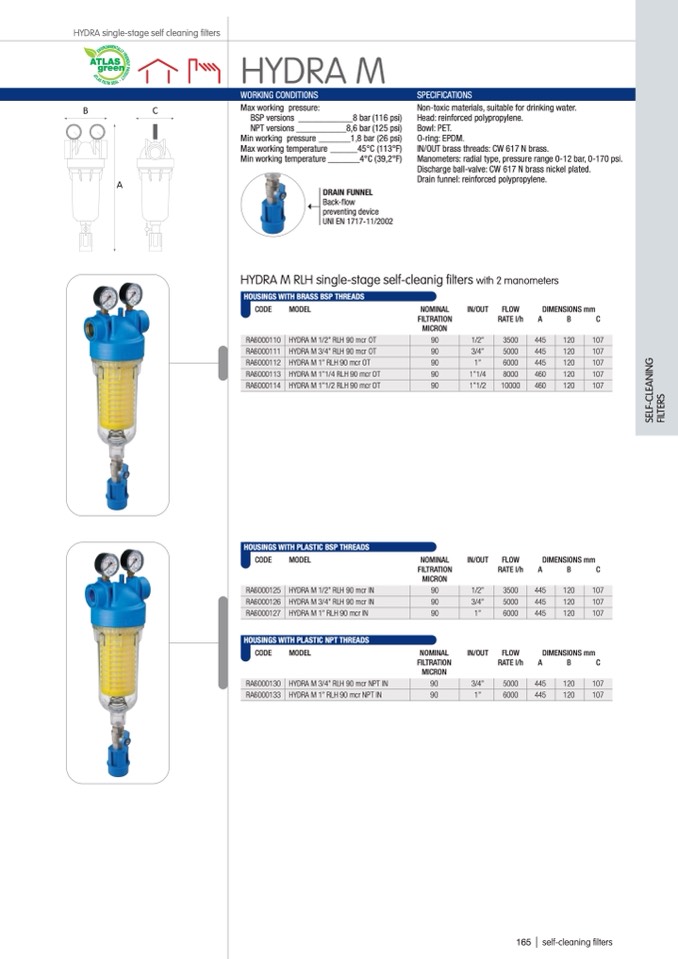

HYDRA M RLH single-stage self-cleanig filters with 2 manometers

HOUSINGS WITH BRASS BSP THREADS

CODE

MODEL

NOMINAL

FILTRATION

MICRON

IN/OUT

FLOW

RATE l/h

DIMENSIONS mm

A

B

C

HOUSINGS WITH PLASTIC BSP THREADS

CODE

MODEL

HOUSINGS WITH PLASTIC NPT THREADS

CODE

MODEL

NOMINAL

FILTRATION

MICRON

NOMINAL

FILTRATION

MICRON

IN/OUT

IN/OUT

FLOW

RATE l/h

FLOW

RATE l/h

DIMENSIONS mm

A

B

C

DIMENSIONS mm

A

B

C

165 | self-cleaning filters

➝

RA6000110

HYDRA M 1/2” RLH 90 mcr OT

90

1/2”

3500

445

120

107

RA6000111

HYDRA M 3/4” RLH 90 mcr OT

90

3/4”

5000

445

120

107

RA6000112

HYDRA M 1” RLH 90 mcr OT

90

1”

6000

445

120

107

RA6000113

HYDRA M 1”1/4 RLH 90 mcr OT

90

1”1/4

8000

460

120

107

RA6000114

HYDRA M 1”1/2 RLH 90 mcr OT

90

1”1/2

10000

460

120

107

RA6000125

HYDRA M 1/2” RLH 90 mcr IN

90

1/2”

3500

445

120

107

RA6000126

HYDRA M 3/4” RLH 90 mcr IN

90

3/4”

5000

445

120

107

RA6000127

HYDRA M 1” RLH 90 mcr IN

90

1”

6000

445

120

107

RA6000130 HYDRA M 3/4” RLH 90 mcr NPT IN

90

3/4”

5000

445

120

107

RA6000133 HYDRA M 1” RLH 90 mcr NPT IN

90

1”

6000

445

120

107
