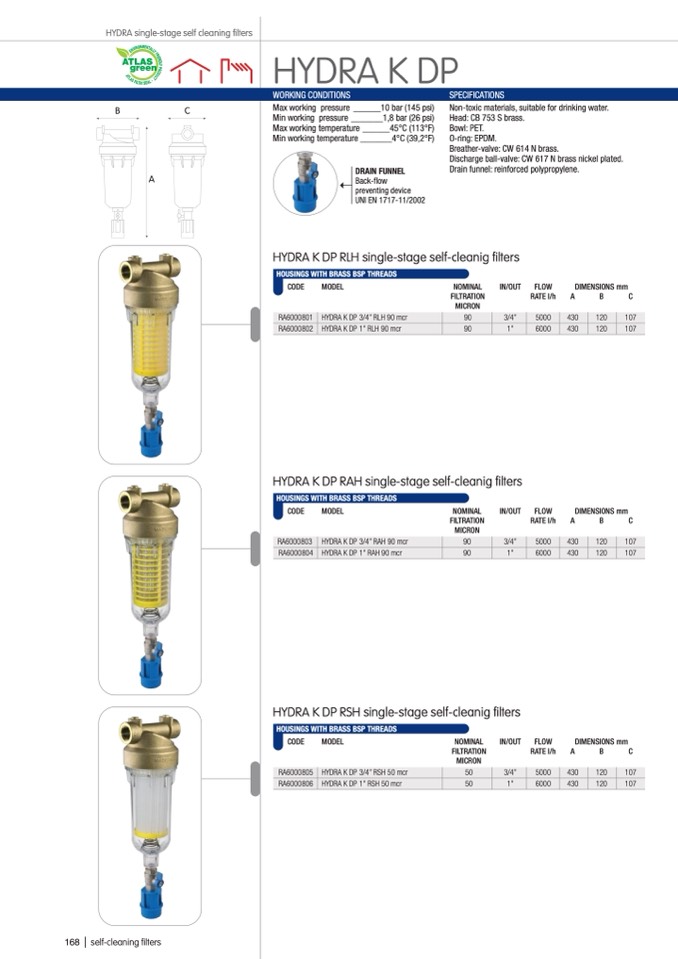

HYDRA single-stage self cleaning filters

O

N

S

E

V

I

R

A

L

N

-

E

N

D

L

Y

P

R

I

A

M

E

ATLAS

green

R

I

HYDRA K DP

WORKING CONDITIONS

SPECIFICATIONS

B

C

A

168 | self-cleaning filters

Max working pressure ______10 bar (145 psi)

Min working pressure _______1,8 bar (26 psi)

Max working temperature ______45°C (113°F)

Min working temperature _______4°C (39,2°F)

DRAIN FUNNEL

Back-flow

preventing device

UNI EN 1717-11/2002

HYDRA K DP RLH single-stage self-cleanig filters

HOUSINGS WITH BRASS BSP THREADS

CODE

MODEL

NOMINAL

IN/OUT

FILTRATION

MICRON

➝

RA6000801 HYDRA K DP 3/4” RLH 90 mcr

90

3/4”

5000

430

120

107

RA6000802 HYDRA K DP 1” RLH 90 mcr

90

1”

6000

430

120

107

HYDRA K DP RAH single-stage self-cleanig filters

HOUSINGS WITH BRASS BSP THREADS

CODE

MODEL

NOMINAL

IN/OUT

FILTRATION

MICRON

FLOW

RATE l/h

DIMENSIONS mm

A

B

C

RA6000803 HYDRA K DP 3/4” RAH 90 mcr

90

3/4”

5000

430

120

107

RA6000804 HYDRA K DP 1” RAH 90 mcr

90

1”

6000

430

120

107

HYDRA K DP RSH single-stage self-cleanig filters

HOUSINGS WITH BRASS BSP THREADS

CODE

MODEL

NOMINAL

IN/OUT

FILTRATION

MICRON

FLOW

RATE l/h

DIMENSIONS mm

A

B

C

Non-toxic materials, suitable for drinking water.

Head: CB 753 S brass.

Bowl: PET.

O-ring: EPDM.

Breather-valve: CW 614 N brass.

Discharge ball-valve: CW 617 N brass nickel plated.

Drain funnel: reinforced polypropylene.

FLOW

RATE l/h

DIMENSIONS mm

A

B

C

RA6000805 HYDRA K DP 3/4” RSH 50 mcr

50

3/4”

5000

430

120

107

RA6000806 HYDRA K DP 1” RSH 50 mcr

50

1”

6000

430

120

107
