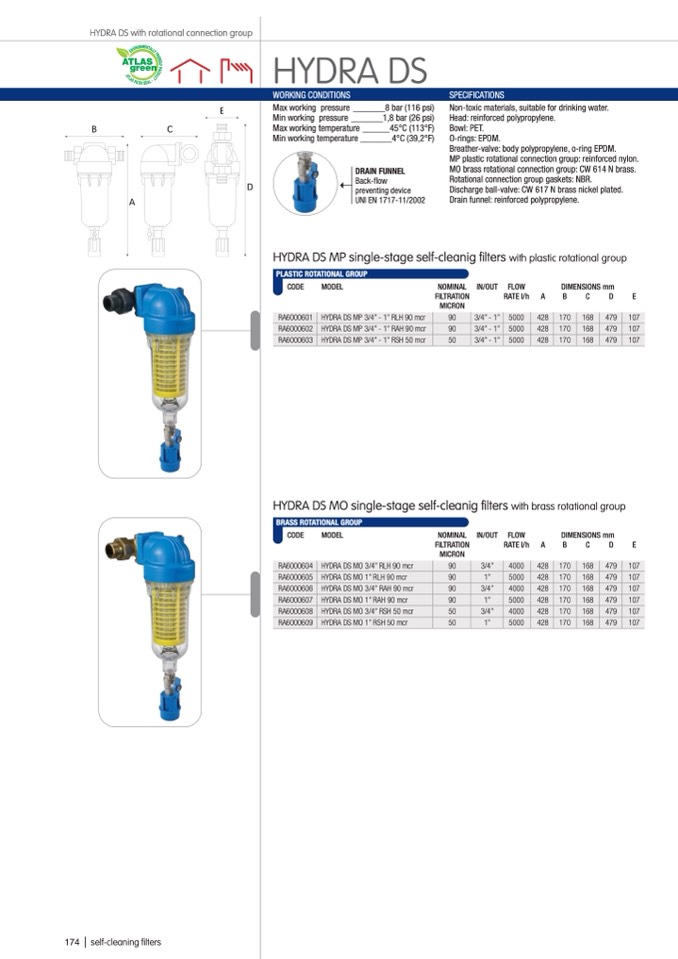

HYDRA DS with rotational connection group

O

N

S

E

V

I

R

A

L

N

-

E

N

D

L

Y

P

R

I

A

M

E

ATLAS

green

R

I

HYDRA DS

WORKING CONDITIONS

SPECIFICATIONS

B

C

A

E

D

174 | self-cleaning filters

Max working pressure _______8 bar (116 psi)

Min working pressure _______1,8 bar (26 psi)

Max working temperature ______45°C (113°F)

Min working temperature _______4°C (39,2°F)

DRAIN FUNNEL

Back-flow

preventing device

UNI EN 1717-11/2002

Non-toxic materials, suitable for drinking water.

Head: reinforced polypropylene.

Bowl: PET.

O-rings: EPDM.

Breather-valve: body polypropylene, o-ring EPDM.

MP plastic rotational connection group: reinforced nylon.

MO brass rotational connection group: CW 614 N brass.

Rotational connection group gaskets: NBR.

Discharge ball-valve: CW 617 N brass nickel plated.

Drain funnel: reinforced polypropylene.

➝

HYDRA DS MP single-stage self-cleanig filters with plastic rotational group

PLASTIC ROTATIONAL GROUP

CODE

MODEL

NOMINAL

IN/OUT FLOW

DIMENSIONS mm

FILTRATION

RATE l/h

A

B

C

D

E

MICRON

RA6000601

HYDRA DS MP 3/4” - 1” RLH 90 mcr

90

3/4” - 1”

5000

428

170

168

479

107

RA6000602

HYDRA DS MP 3/4” - 1” RAH 90 mcr

90

3/4” - 1”

5000

428

170

168

479

107

RA6000603

HYDRA DS MP 3/4” - 1” RSH 50 mcr

50

3/4” - 1”

5000

428

170

168

479

107

HYDRA DS MO single-stage self-cleanig filters with brass rotational group

BRASS ROTATIONAL GROUP

CODE

MODEL

NOMINAL

IN/OUT FLOW

DIMENSIONS mm

FILTRATION

RATE l/h

A

B

C

D

E

MICRON

RA6000604

HYDRA DS MO 3/4” RLH 90 mcr

90

3/4”

4000

428

170

168

479

107

RA6000605

HYDRA DS MO 1” RLH 90 mcr

90

1”

5000

428

170

168

479

107

RA6000606

HYDRA DS MO 3/4” RAH 90 mcr

90

3/4”

4000

428

170

168

479

107

RA6000607

HYDRA DS MO 1” RAH 90 mcr

90

1”

5000

428

170

168

479

107

RA6000608

HYDRA DS MO 3/4” RSH 50 mcr

50

3/4”

4000

428

170

168

479

107

RA6000609

HYDRA DS MO 1” RSH 50 mcr

50

1”

5000

428

170

168

479

107
