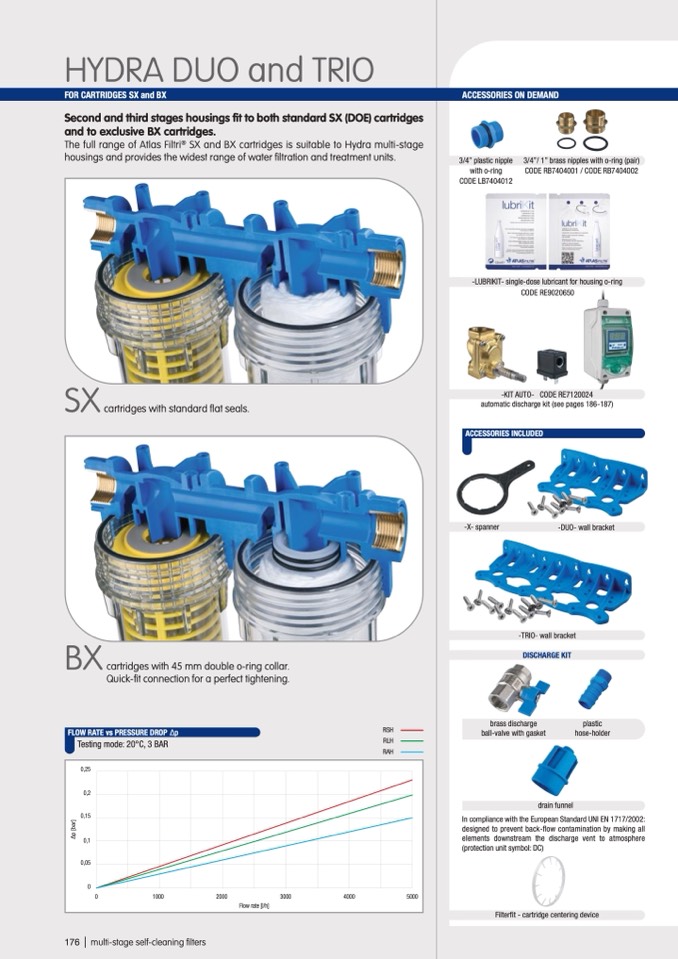

HYDRA DUO and TRIO

FOR CARTRIDGES SX and BX

ACCESSORIES ON DEMAND

Second and third stages housings fit to both standard SX (DOE) cartridges

and to exclusive BX cartridges.

The full range of Atlas Filtri

®

SX and BX cartridges is suitable to Hydra multi-stage

housings and provides the widest range of water filtration and treatment units.

SX

cartridges with standard flat seals.

BX

cartridges with 45 mm double o-ring collar.

Quick-fit connection for a perfect tightening.

FLOW RATE vs PRESSURE DROP Δp

Testing mode: 20°C, 3 BAR

RSH

RLH

RAH

0,25

0,2

0,15

0,1

0,05

0

0

1000

2000

3000

4000

5000

Flow rate [l/h]

Δ

p

[

b

a

r

]

176 | multi-stage self-cleaning filters

3/4” plastic nipple

3/4”/ 1” brass nipples with o-ring (pair)

with o-ring

CODE RB7404001 / CODE RB7404002

CODE LB7404012

-LUBRIKIT- single-dose lubricant for housing o-ring

CODE RE9020650

-KIT AUTO- CODE RE7120024

automatic discharge kit (see pages 186-187)

ACCESSORIES INCLUDED

-X- spanner

-DUO- wall bracket

-TRIO- wall bracket

DISCHARGE KIT

brass discharge

plastic

ball-valve with gasket

hose-holder

drain funnel

In compliance with the European Standard UNI EN 1717/2002:

designed to prevent back-flow contamination by making all

elements downstream the discharge vent to atmosphere

(protection unit symbol: DC)

Filterfit - cartridge centering device
