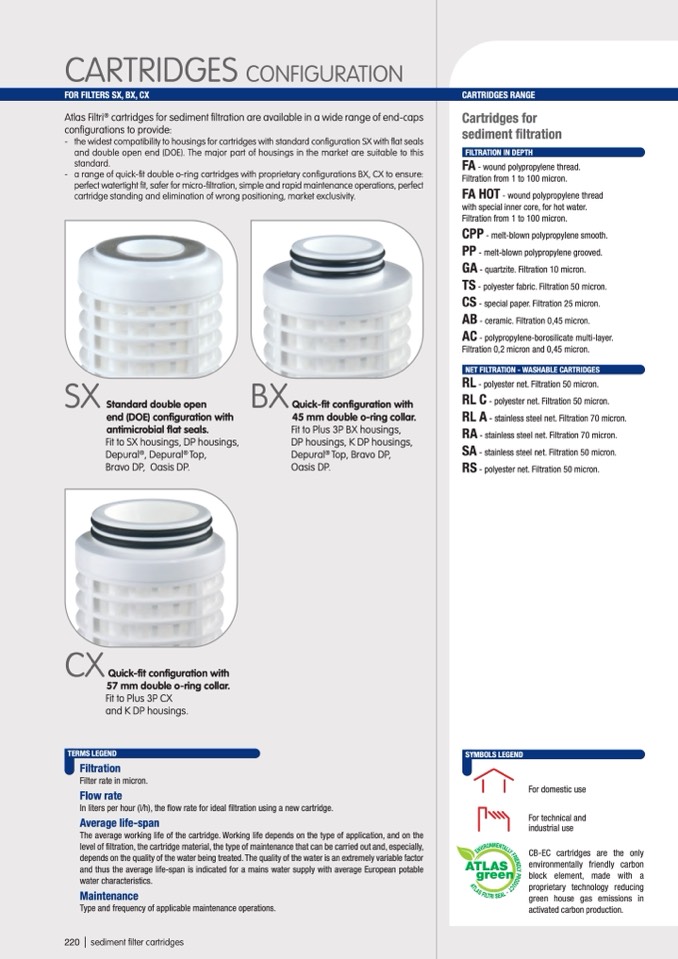

CARTRIDGES

CONFIGURATION

FOR FILTERS SX, BX, CX

CARTRIDGES RANGE

Atlas Filtri

®

cartridges for sediment filtration are available in a wide range of end-caps

configurations to provide:

- the widest compatibility to housings for cartridges with standard configuration SX with flat seals

and double open end (DOE). The major part of housings in the market are suitable to this

standard.

- a range of quick-fit double o-ring cartridges with proprietary configurations BX, CX to ensure:

perfect watertight fit, safer for micro-filtration, simple and rapid maintenance operations, perfect

cartridge standing and elimination of wrong positioning, market exclusivity.

SX

Standard double open

end (DOE) configuration with

antimicrobial flat seals.

Fit to SX housings, DP housings,

Depural

®

, Depural

®

Top,

Bravo DP, Oasis DP.

CX

Quick-fit configuration with

57 mm double o-ring collar.

Fit to Plus 3P CX

and K DP housings.

TERMS LEGEND

Filtration

Filter rate in micron.

Flow rate

BX

Quick-fit configuration with

45 mm double o-ring collar.

Fit to Plus 3P BX housings,

DP housings, K DP housings,

Depural

®

Top, Bravo DP,

Oasis DP.

In liters per hour (l/h), the flow rate for ideal filtration using a new cartridge.

Average life-span

The average working life of the cartridge. Working life depends on the type of application, and on the

level of filtration, the cartridge material, the type of maintenance that can be carried out and, especially,

depends on the quality of the water being treated. The quality of the water is an extremely variable factor

and thus the average life-span is indicated for a mains water supply with average European potable

water characteristics.

Maintenance

Type and frequency of applicable maintenance operations.
