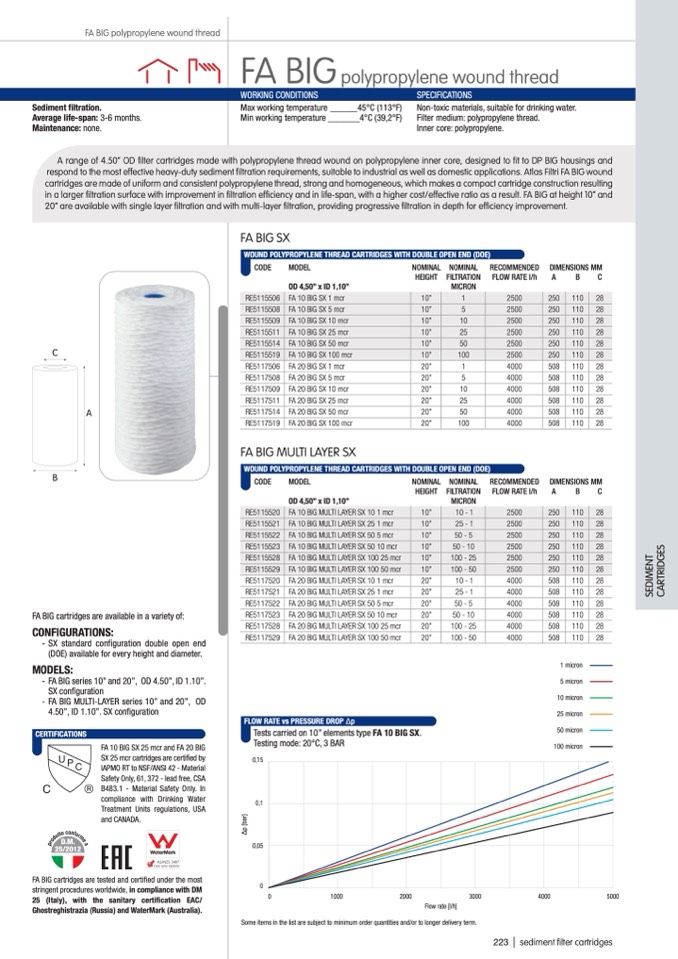

FA BIG polypropylene wound thread
Sediment filtration.
Average life-span: 3-6 months.
Maintenance: none.
WORKING CONDITIONS
Max working temperature ______45°C (113°F)
Min working temperature _______4°C (39,2°F)
SPECIFICATIONS
Non-toxic materials, suitable for drinking water.
Filter medium: polypropylene thread.
Inner core: polypropylene.
FA BIG
polypropylene wound thread
A range of 4.50” OD filter cartridges made with polypropylene thread wound on polypropylene inner core, designed to fit to DP BIG housings and
respond to the most effective heavy-duty sediment filtration requirements, suitable to industrial as well as domestic applications. Atlas Filtri FA BIG wound
cartridges are made of uniform and consistent polypropylene thread, strong and homogeneous, which makes a compact cartridge construction resulting
in a larger filtration surface with improvement in filtration efficiency and in life-span, with a higher cost/effective ratio as a result. FA BIG at height 10” and
20” are available with single layer filtration and with multi-layer filtration, providing progressive filtration in depth for efficiency improvement.
FA BIG SX
C
B
FA BIG cartridges are available in a variety of:
CONFIGURATIONS:
- SX standard configuration double open end
(DOE) available for every height and diameter.
MODELS:
- FA BIG series 10” and 20”, OD 4.50”, ID 1.10”.
SX configuration
- FA BIG MULTI-LAYER series 10” and 20”, OD
4.50”, ID 1.10”. SX configuration
CERTIFICATIONS
FA10BIGSX25mcrandFA20BIG
SX 25 mcr cartridges are certified by
IAPMO RT to NSF/ANSI 42 - Material
Safety Only, 61, 372 - lead free, CSA
B483.1 - Material Safety Only. In
compliance with Drinking Water
Treatment Units regulations, USA
and CANADA.
FA BIG cartridges are tested and certified under the most
stringent procedures worldwide, in compliance with DM
25 (Italy), with the sanitary certification EAC/
Ghostreghistrazia (Russia) and WaterMark (Australia).
RE5115506
RE5115508
RE5115509
RE5115511
RE5115514
RE5115519
RE5117506
RE5117508
RE5117509
RE5117511
RE5117514
RE5117519
OD 4,50” x ID 1,10”
FA 10 BIG SX 1 mcr
FA 10 BIG SX 5 mcr
FA 10 BIG SX 10 mcr
FA 10 BIG SX 25 mcr
FA 10 BIG SX 50 mcr
FA 10 BIG SX 100 mcr
FA 20 BIG SX 1 mcr
FA 20 BIG SX 5 mcr
FA 20 BIG SX 10 mcr
FA 20 BIG SX 25 mcr
FA 20 BIG SX 50 mcr
FA 20 BIG SX 100 mcr
HEIGHT FILTRATION
MICRON
10”
1
10”
5
10”
10
10”
25
10”
50
10”
100
20”
1
20”
5
20”
10
20”
25
20”
50
20”
100
FLOW RATE l/h
A
B
C
2500
250
110
28
2500
250
110
28
2500
250
110
28
2500
250
110
28
2500
250
110
28
2500
250
110
28
4000
508
110
28
4000
508
110
28
4000
508
110
28
4000
508
110
28
4000
508
110
28
4000
508
110
28
A
WOUND POLYPROPYLENE THREAD CARTRIDGES WITH DOUBLE OPEN END (DOE)
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
FA BIG MULTI LAYER SX
WOUND POLYPROPYLENE THREAD CARTRIDGES WITH DOUBLE OPEN END (DOE)
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RE5115520
RE5115521
RE5115522
RE5115523
RE5115528
RE5115529
RE5117520
RE5117521
RE5117522
RE5117523
RE5117528
RE5117529
OD 4,50” x ID 1,10”
FA 10 BIG MULTI LAYER SX 10 1 mcr
FA 10 BIG MULTI LAYER SX 25 1 mcr
FA 10 BIG MULTI LAYER SX 50 5 mcr
FA 10 BIG MULTI LAYER SX 50 10 mcr
FA 10 BIG MULTI LAYER SX 100 25 mcr
FA 10 BIG MULTI LAYER SX 100 50 mcr
FA 20 BIG MULTI LAYER SX 10 1 mcr
FA 20 BIG MULTI LAYER SX 25 1 mcr
FA 20 BIG MULTI LAYER SX 50 5 mcr
FA 20 BIG MULTI LAYER SX 50 10 mcr
FA 20 BIG MULTI LAYER SX 100 25 mcr
FA 20 BIG MULTI LAYER SX 100 50 mcr
HEIGHT
10”
10”
10”
10”
10”
10”
20”
20”
20”
20”
20”
20”
FILTRATION
MICRON
10 - 1
25 - 1
50 - 5
50 - 10
100 - 25
100 - 50
10 - 1
25 - 1
50 - 5
50 - 10
100 - 25
100 - 50
FLOW RATE l/h
2500
2500
2500
2500
2500
2500
4000
4000
4000
4000
4000
4000
A
B
250
110
250
110
250
110
250
110
250
110
250
110
508
110
508
110
508
110
508
110
508
110
508
110
C
28
28
28
28
28
28
28
28
28
28
28
28
FLOW RATE vs PRESSURE DROP Δp
Tests carried on 10” elements type FA 10 BIG SX.
Testing mode: 20°C, 3 BAR
0,15
0,1
0,05
0
1 micron
5 micron
10 micron
25 micron
50 micron
100 micron
0
1000
2000
3000
4000
5000
Flow rate [l/h]
Some items in the list are subject to minimum order quantities and/or to longer delivery term.
