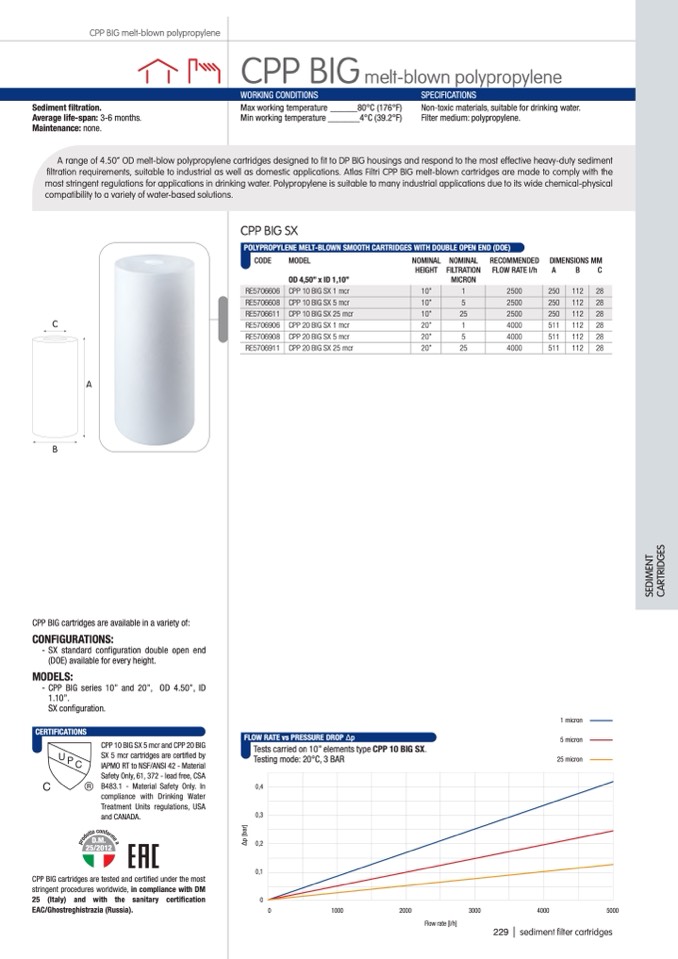

CPP BIG melt-blown polypropylene

CPP BIG

melt-blown polypropylene

WORKING CONDITIONS

SPECIFICATIONS

Sediment filtration.

Max working temperature ______80°C (176°F)

Non-toxic materials, suitable for drinking water.

Average life-span: 3-6 months.

Min working temperature _______4°C (39.2°F)

Filter medium: polypropylene.

Maintenance: none.

A range of 4.50” OD melt-blow polypropylene cartridges designed to fit to DP BIG housings and respond to the most effective heavy-duty sediment

filtration requirements, suitable to industrial as well as domestic applications. Atlas Filtri CPP BIG melt-blown cartridges are made to comply with the

most stringent regulations for applications in drinking water. Polypropylene is suitable to many industrial applications due to its wide chemical-physical

compatibility to a variety of water-based solutions.

CPP BIG SX

C

B

RE5706906

RE5706908

RE5706911

A

CPP BIG cartridges are available in a variety of:

CONFIGURATIONS:

- SX standard configuration double open end

(DOE) available for every height.

MODELS:

- CPP BIG series 10” and 20”, OD 4.50”, ID

1.10”.

SX configuration.

CERTIFICATIONS

CPP10BIGSX5mcrandCPP20BIG

SX 5 mcr cartridges are certified by

IAPMO RT to NSF/ANSI 42 - Material

Safety Only, 61, 372 - lead free, CSA

B483.1 - Material Safety Only. In

compliance with Drinking Water

Treatment Units regulations, USA

and CANADA.

CPP BIG cartridges are tested and certified under the most

stringent procedures worldwide, in compliance with DM

25 (Italy) and with the sanitary certification

EAC/Ghostreghistrazia (Russia).

FLOW RATE vs PRESSURE DROP Δp

Tests carried on 10” elements type CPP 10 BIG SX.

Testing mode: 20°C, 3 BAR

1 micron

5 micron

25 micron

POLYPROPYLENE MELT-BLOWN SMOOTH CARTRIDGES WITH DOUBLE OPEN END (DOE)

COD

E

MODEL

NOMINA

L

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

0,4

0,3

0,2

0,1

0

OD 4,50” x ID 1,10”

0

1000

2000

3000

4000

5000

HEIGHT

FILTRATION

MICRON

FLOW RATE l/h

A

B

C

28

28

28

Flow rate [l/h]

229 | sediment filter cartridges

RE5706606

CPP 10 BIG SX 1 mcr

10”

1

2500

250

112

28

RE5706608

CPP 10 BIG SX 5 mcr

10”

5

2500

250

112

28

RE5706611

CPP 10 BIG SX 25 mcr

10”

25

2500

250

112

28

CPP 20 BIG SX 1 mcr

20”

1

4000

511

112

CPP 20 BIG SX 5 mcr

20”

5

4000

511

112

CPP 20 BIG SX 25 mcr

20”

25

4000

511

112

Δ

p

[

b

a

r

]
