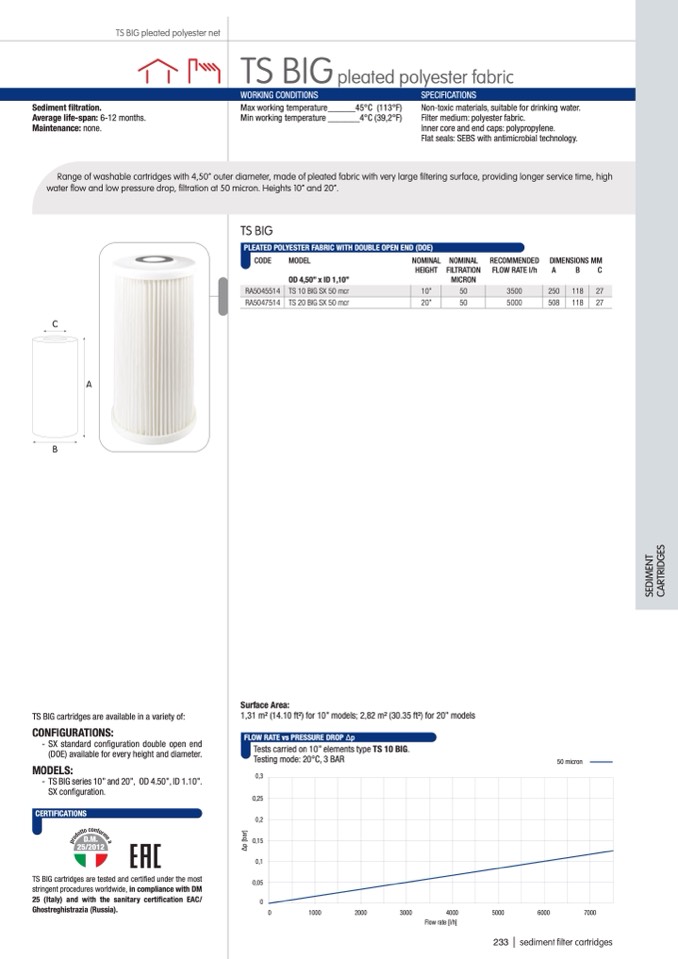

TS BIG pleated polyester net

TS BIG

pleated polyester fabric

WORKING CONDITIONS

SPECIFICATIONS

Sediment filtration.

Average life-span: 6-12 months.

Maintenance: none.

Max working temperature______45°C (113°F)

Min working temperature _______4°C (39,2°F)

Non-toxic materials, suitable for drinking water.

Filter medium: polyester fabric.

Inner core and end caps: polypropylene.

Flat seals: SEBS with antimicrobial technology.

Range of washable cartridges with 4,50” outer diameter, made of pleated fabric with very large filtering surface, providing longer service time, high

water flow and low pressure drop, filtration at 50 micron. Heights 10” and 20”.

C

B

A

TS BIG cartridges are available in a variety of:

CONFIGURATIONS:

- SX standard configuration double open end

(DOE) available for every height and diameter.

MODELS:

- TS BIG series 10” and 20”, OD 4.50”, ID 1.10”.

SX configuration.

CERTIFICATIONS

TS BIG cartridges are tested and certified under the most

stringent procedures worldwide, in compliance with DM

25 (Italy) and with the sanitary certification EAC/

Ghostreghistrazia (Russia).

1,31 m2 (14.10 ft2) for 10” models; 2,82 m2 (30.35 ft2) for 20” models

FLOW RATE vs PRESSURE DROP Δp

Tests carried on 10” elements type TS 10 BIG.

Testing mode: 20°C, 3 BAR

50 micron

TS BIG

PLEATED POLYESTER FABRIC WITH DOUBLE OPEN END (DOE)

COD

E

MODEL

NOMINA

L

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

RA5047514

20”

50

5000

Surface Area:

0,3

0,25

0,2

0,15

0,1

0,05

0

OD 4,50” x ID 1,10”

TS 20 BIG SX 50 mcr

HEIGHT FILTRATION

FLOW RATE l/h

MICRON

A

B

508

118

C

27

0

1000

2000

3000

4000

5000

Flow rate [l/h]

6000

7000

233 | sediment filter cartridges

RA5045514 TS 10 BIG SX 50 mcr

10”

50

3500

250

118

27

Δ

p

[

b

a

r

]
