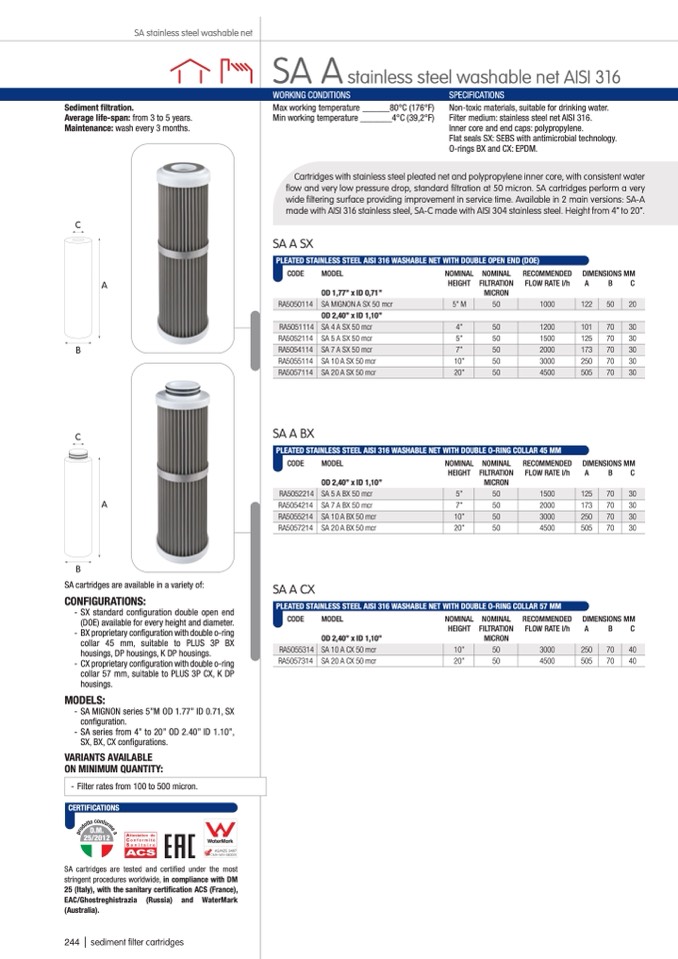

SA stainless steel washable net
SA A
stainless steel washable net AISI 316
Sediment filtration.
Average life-span: from 3 to 5 years.
Maintenance: wash every 3 months.
WORKING CONDITIONS
Max working temperature ______80°C (176°F)
Min working temperature _______4°C (39,2°F)
SPECIFICATIONS
Non-toxic materials, suitable for drinking water.
Filter medium: stainless steel net AISI 316.
Inner core and end caps: polypropylene.
Flat seals SX: SEBS with antimicrobial technology.
O-rings BX and CX: EPDM.
C
A
C
B
SA cartridges are available in a variety of:
CONFIGURATIONS:
- SX standard configuration double open end
(DOE) available for every height and diameter.
- BX proprietary configuration with double o-ring
collar 45 mm, suitable to PLUS 3P BX
housings, DP housings, K DP housings.
- CX proprietary configuration with double o-ring
collar 57 mm, suitable to PLUS 3P CX, K DP
housings.
MODELS:
- SA MIGNON series 5”M OD 1.77” ID 0.71, SX
configuration.
- SA series from 4” to 20” OD 2.40” ID 1.10”,
SX, BX, CX configurations.
VARIANTS AVAILABLE
ON MINIMUM QUANTITY:
- Filter rates from 100 to 500 micron.
CERTIFICATIONS
SA cartridges are tested and certified under the most
stringent procedures worldwide, in compliance with DM
25 (Italy), with the sanitary certification ACS (France),
EAC/Ghostreghistrazia (Russia) and WaterMark
(Australia).
Cartridges with stainless steel pleated net and polypropylene inner core, with consistent water
flow and very low pressure drop, standard filtration at 50 micron. SA cartridges perform a very
wide filtering surface providing improvement in service time. Available in 2 main versions: SA-A
made with AISI 316 stainless steel, SA-C made with AISI 304 stainless steel. Height from 4” to 20”.
SA A SX
PLEATED STAINLESS STEEL AISI 316 WASHABLE NET WITH DOUBLE OPEN END (DOE)
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
B
RA5050114
RA5051114
RA5052114
RA5054114
RA5055114
RA5057114
SA A BX
OD 1,77” x ID 0,71”
SA MIGNON A SX 50 mcr
OD 2,40” x ID 1,10”
SA 4 A SX 50 mcr
SA 5 A SX 50 mcr
SA 7 A SX 50 mcr
SA 10 A SX 50 mcr
SA 20 A SX 50 mcr
HEIGHT
5” M
4”
5”
7”
10”
20”
FILTRATION
FLOW RATE l/h
A
B
C
MICRON
50
1000
122
50
20
50
1200
101
70
30
50
1500
125
70
30
50
2000
173
70
30
50
3000
250
70
30
50
4500
505
70
30
PLEATED STAINLESS STEEL AISI 316 WASHABLE NET WITH DOUBLE O-RING COLLAR 45 MM
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
A
RA5052214
RA5054214
RA5055214
RA5057214
SA A CX
OD 2,40” x ID 1,10”
SA 5 A BX 50 mcr
SA 7 A BX 50 mcr
SA 10 A BX 50 mcr
SA 20 A BX 50 mcr
HEIGHT FILTRATION
MICRON
5”
50
7”
50
10”
50
20”
50
FLOW RATE l/h
A
1500
125
2000
173
3000
250
4500
505
B
C
70
30
70
30
70
30
70
30
PLEATED STAINLESS STEEL AISI 316 WASHABLE NET WITH DOUBLE O-RING COLLAR 57 MM
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RA5055314
RA5057314
OD 2,40” x ID 1,10”
SA 10 A CX 50 mcr
SA 20 A CX 50 mcr
HEIGHT FILTRATION
MICRON
10”
50
20”
50
FLOW RATE l/h
A
B
C
3000
250
70
40
4500
505
70
40
244 | sediment filter cartridges
