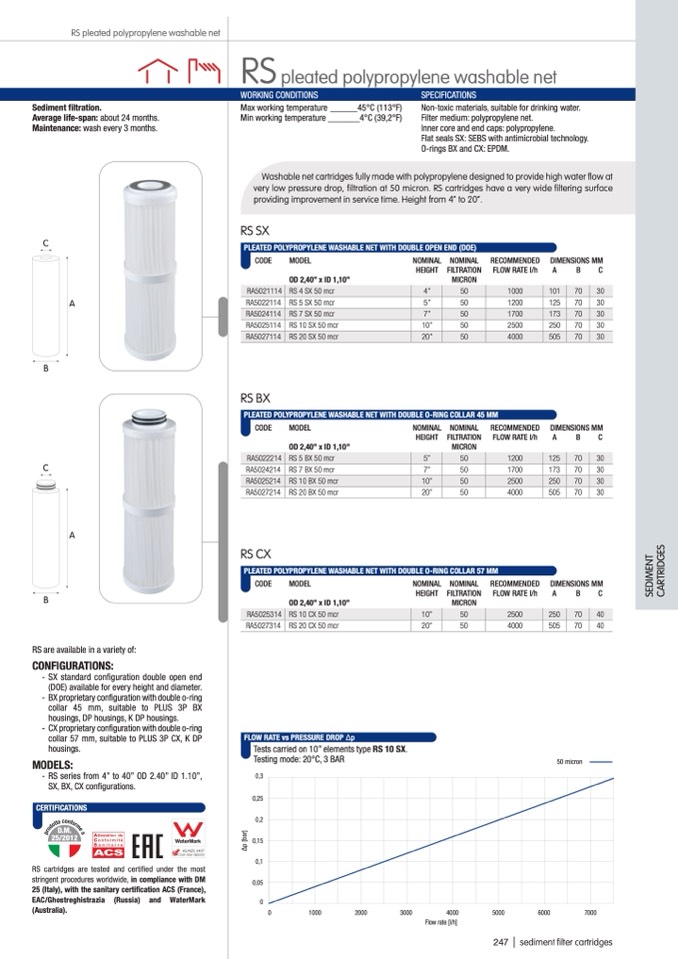

RS pleated polypropylene washable net
Sediment filtration.
Average life-span: about 24 months.
Maintenance: wash every 3 months.
WORKING CONDITIONS
Max working temperature ______45°C (113°F)
Min working temperature _______4°C (39,2°F)
SPECIFICATIONS
Non-toxic materials, suitable for drinking water.
Filter medium: polypropylene net.
Inner core and end caps: polypropylene.
Flat seals SX: SEBS with antimicrobial technology.
O-rings BX and CX: EPDM.
C
A
B
C
A
B
RS are available in a variety of:
CONFIGURATIONS:
- SX standard configuration double open end
(DOE) available for every height and diameter.
- BX proprietary configuration with double o-ring
collar 45 mm, suitable to PLUS 3P BX
housings, DP housings, K DP housings.
- CX proprietary configuration with double o-ring
collar 57 mm, suitable to PLUS 3P CX, K DP
housings.
MODELS:
- RS series from 4” to 40” OD 2.40” ID 1.10”,
SX, BX, CX configurations.
CERTIFICATIONS
RS cartridges are tested and certified under the most
stringent procedures worldwide, in compliance with DM
25 (Italy), with the sanitary certification ACS (France),
EAC/Ghostreghistrazia (Russia) and WaterMark
(Australia).
Washable net cartridges fully made with polypropylene designed to provide high water flow at
very low pressure drop, filtration at 50 micron. RS cartridges have a very wide filtering surface
providing improvement in service time. Height from 4” to 20”.
RS SX
PLEATED POLYPROPYLENE WASHABLE NET WITH DOUBLE OPEN END (DOE)
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RS
pleated polypropylene washable net
RA5021114
RA5022114
RA5024114
RA5025114
RA5027114
RS BX
OD 2,40” x ID 1,10”
RS 4 SX 50 mcr
RS 5 SX 50 mcr
RS 7 SX 50 mcr
RS 10 SX 50 mcr
RS 20 SX 50 mcr
HEIGHT FILTRATION
MICRON
4”
50
5”
50
7”
50
10”
50
20”
50
FLOW RATE l/h
A
B
C
1000
101
70
30
1200
125
70
30
1700
173
70
30
2500
250
70
30
4000
505
70
30
PLEATED POLYPROPYLENE WASHABLE NET WITH DOUBLE O-RING COLLAR 45 MM
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RA5022214
RA5024214
RA5025214
RA5027214
RS CX
OD 2,40” x ID 1,10”
RS 5 BX 50 mcr
RS 7 BX 50 mcr
RS 10 BX 50 mcr
RS 20 BX 50 mcr
HEIGHT FILTRATION
MICRON
5”
50
7”
50
10”
50
20”
50
FLOW RATE l/h
A
1200
125
1700
173
2500
250
4000
505
B
C
70
30
70
30
70
30
70
30
PLEATED POLYPROPYLENE WASHABLE NET WITH DOUBLE O-RING COLLAR 57 MM
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RA5025314
RA5027314
OD 2,40” x ID 1,10”
RS 10 CX 50 mcr
RS 20 CX 50 mcr
2500
250
4000
505
FLOW RATE vs PRESSURE DROP Δp
Tests carried on 10” elements type RS 10 SX.
Testing mode: 20°C, 3 BAR
50 micron
0,3
0,25
0,2
0,15
0,1
0,05
0
0
1000
2000
3000
4000
Flow rate [l/h]
5000
6000
7000
HEIGHT
10”
20”
FILTRATION
MICRON
50
50
FLOW RATE l/h
A
B
70
70
C
40
40
247 | sediment filter cartridges
