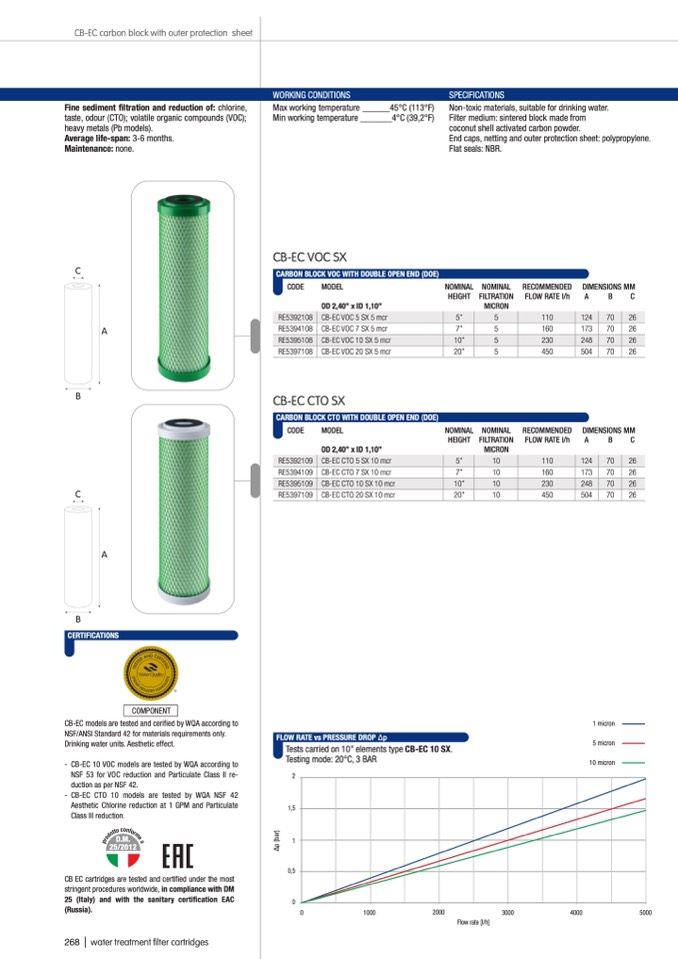

CB-EC carbon block with outer protection sheet
WORKING CONDITIONS
SPECIFICATIONS
Fine sediment filtration and reduction of: chlorine,
taste, odour (CTO); volatile organic compounds (VOC);
heavy metals (Pb models).
Average life-span: 3-6 months.
Maintenance: none.
C
A
B
C
A
B
CERTIFICATIONS
CB-EC models are tested and cerified by WQA according to
NSF/ANSI Standard 42 for materials requirements only.
Drinking water units. Aesthetic effect.
- CB-EC 10 VOC models are tested by WQA according to
NSF 53 for VOC reduction and Particulate Class II re-
duction as per NSF 42.
- CB-EC CTO 10 models are tested by WQA NSF 42
Aesthetic Chlorine reduction at 1 GPM and Particulate
Class III reduction.
CB EC cartridges are tested and certified under the most
stringent procedures worldwide, in compliance with DM
25 (Italy) and with the sanitary certification EAC
(Russia).
COMPONENT
268 | water treatment filter cartridges
Max working temperature ______45°C (113°F)
Min working temperature _______4°C (39,2°F)
CB-EC VOC SX
CARBON BLOCK VOC WITH DOUBLE OPEN END (DOE)
Non-toxic materials, suitable for drinking water.
Filter medium: sintered block made from
coconut shell activated carbon powder.
End caps, netting and outer protection sheet: polypropylene.
Flat seals: NBR.
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
RE5392108
RE5395108
RE5392109
RE5395109
OD 2,40” x ID 1,10”
CB-EC VOC 5 SX 5 mcr
CB-EC VOC 7 SX 5 mcr
CB-EC VOC 10 SX 5 mcr
CB-EC VOC 20 SX 5 mcr
CB-EC CTO 5 SX 10 mcr
CB-EC CTO 7 SX 10 mcr
CB-EC CTO 10 SX 10 mcr
CB-EC CTO 20 SX 10 mcr
HEIGHT
FILTRATION
MICRON
FLOW RATE l/h
A
B
C
26
26
5”
7”
10”
20”
5”
7”
10”
20”
5
5
5
5
10
10
10
10
110
160
230
450
110
160
230
450
124
173
248
504
124
173
248
504
70
70
70
70
70
70
70
70
26
RE5394108
RE5397108
26
CB-EC CTO SX
CARBON BLOCK CTO WITH DOUBLE OPEN END (DOE)
COD
E
MODEL
NOMINA
L
NOMINA
L
RECOMMENDE
D
DIMENSIONSMM
OD 2,40” x ID 1,10”
HEIGHT
FILTRATION
MICRON
FLOW RATE l/h
A
B
C
26
RE5394109
RE5397109
26
26
26
FLOW RATE vs PRESSURE DROP Δp
1 micron
5 micron
10 micron
Tests carried on 10” elements type CB-EC 10 SX.
Testing mode: 20°C, 3 BAR
2
1,5
1
0,5
0
0
1000
2000
3000
4000
5000
Flow rate [l/h]
Δ
p
[
b
a
r
]
