Anti-scale and anti-corrosion conditioning.

Max life-span: 6 months.

Maintenance: none.

Remark - Use a pre-filter to protect the cartridge.

WORKING CONDITIONS

Max working temperature________35°C (95°F)

Min working temperature________4°C (39,2°F)

Max total hardness _____50°f (500 ppm CaCO

3

)

Remark - the treated water can be heated up to

75°C - 80°C, above that temperature the

polyphosphate loses gradually its effectiveness.

SPECIFICATIONS

Non-toxic materials, suitable for drinking water.

Container, end cap and grid: polystyrene.

Flat seal SX: SEBS with antimicrobial technology.

O-rings BX: EPDM.

Treatment material: polyphosphate crystals

270 | water treatment filter cartridges

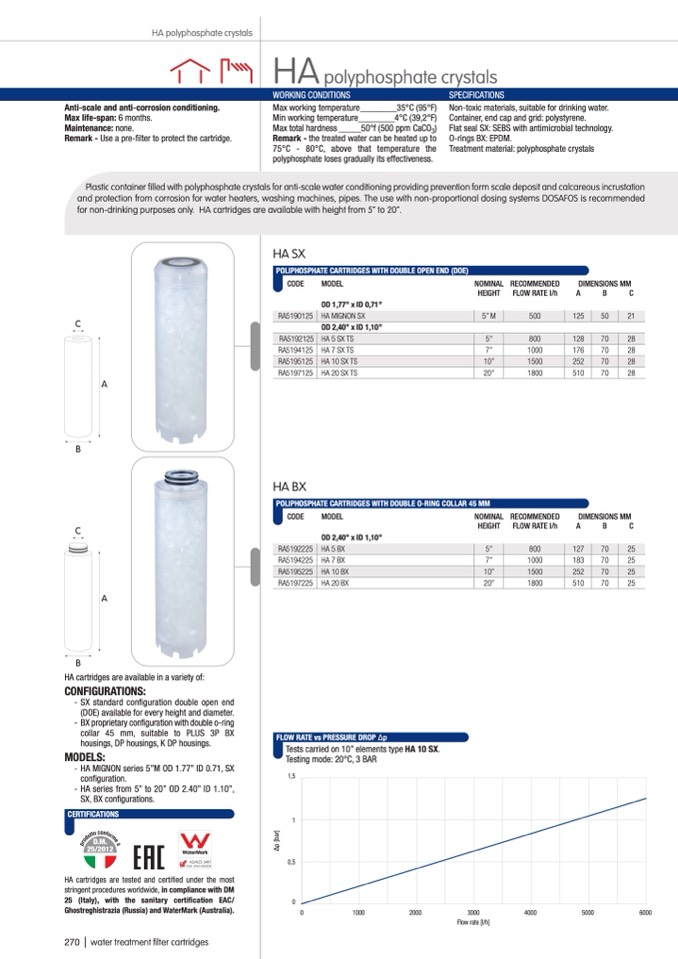

HA polyphosphate crystals

HA

polyphosphate crystals

Plastic container filled with polyphosphate crystals for anti-scale water conditioning providing prevention form scale deposit and calcareous incrustation

and protection from corrosion for water heaters, washing machines, pipes. The use with non-proportional dosing systems DOSAFOS is recommended

for non-drinking purposes only. HA cartridges are available with height from 5” to 20”.

C

A

B

C

A

B

HA cartridges are available in a variety of:

CONFIGURATIONS:

- SX standard configuration double open end

(DOE) available for every height and diameter.

- BX proprietary configuration with double o-ring

collar 45 mm, suitable to PLUS 3P BX

housings, DP housings, K DP housings.

MODELS:

- HA MIGNON series 5”M OD 1.77” ID 0.71, SX

configuration.

- HA series from 5” to 20” OD 2.40” ID 1.10”,

SX, BX configurations.

CERTIFICATIONS

HA cartridges are tested and certified under the most

stringent procedures worldwide, in compliance with DM

25 (Italy), with the sanitary certification EAC/

Ghostreghistrazia (Russia) and WaterMark (Australia).

RA5190125

RA5192125

RA5194125

RA5195125

RA5197125

HA BX

OD 1,77” x ID 0,71”

HA MIGNON SX

OD 2,40” x ID 1,10”

HA 5 SX TS

HA 7 SX TS

HA 10 SX TS

HA 20 SX TS

HEIGHT

5” M

5”

7”

10”

20”

FLOW RATE l/h

A

B

C

500

125

50

21

800

128

70

28

1000

176

70

28

1500

252

70

28

1800

510

70

28

HA SX

POLIPHOSPHATE CARTRIDGES WITH DOUBLE OPEN END (DOE)

COD

E

MODEL

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

POLIPHOSPHATE CARTRIDGES WITH DOUBLE O-RING COLLAR 45 MM

COD

E

MODEL

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

RA5192225

RA5194225

RA5195225

RA5197225

OD 2,40” x ID 1,10”

HA 5 BX

HA 7 BX

HA 10 BX

HA 20 BX

HEIGHT

5”

7”

10”

20”

FLOW RATE l/h

A

800

127

1000

183

1500

252

1800

510

B

70

70

70

70

C

25

25

25

25

FLOW RATE vs PRESSURE DROP Δp

Tests carried on 10” elements type HA 10 SX.

Testing mode: 20°C, 3 BAR

1,5

1

0,5

0

0

1000

2000

3000

Flow rate [l/h]

4000

5000

6000

Δ

p

[

b

a

r

]
