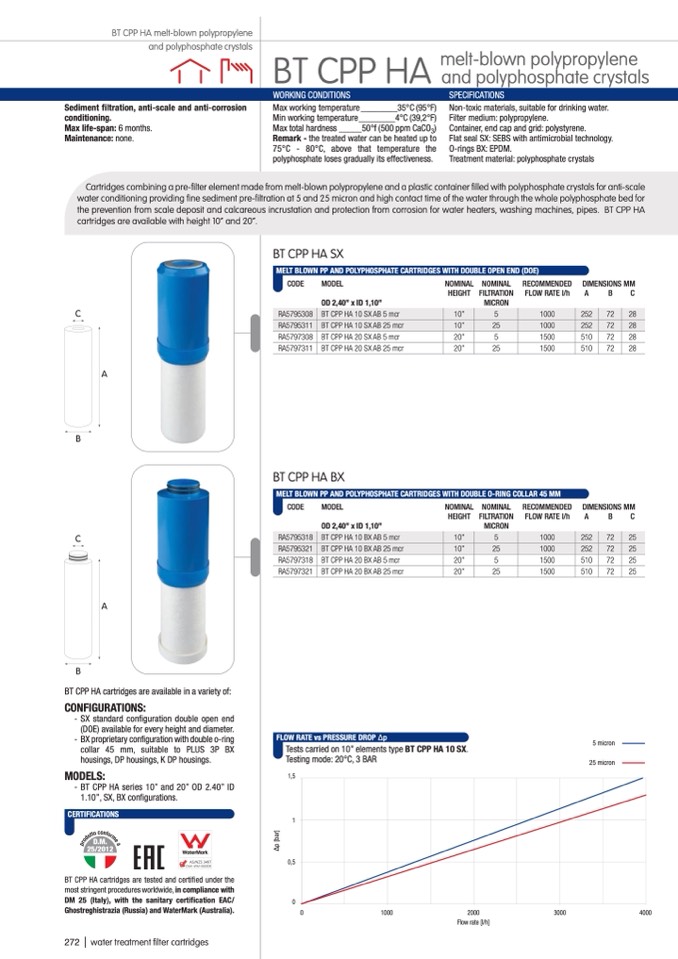

BT CPP HA melt-blown polypropylene

and polyphosphate crystals

Sediment filtration, anti-scale and anti-corrosion

conditioning.

Max life-span: 6 months.

Maintenance: none.

melt-blown polypropylene

BT CPP HA

and polyphosphate crystals

C

B

C

A

B

BT CPP HA cartridges are available in a variety of:

CONFIGURATIONS:

- SX standard configuration double open end

(DOE) available for every height and diameter.

- BX proprietary configuration with double o-ring

collar 45 mm, suitable to PLUS 3P BX

housings, DP housings, K DP housings.

MODELS:

- BT CPP HA series 10” and 20” OD 2.40” ID

1.10”, SX, BX configurations.

CERTIFICATIONS

BT CPP HA cartridges are tested and certified under the

most stringent procedures worldwide, in compliance with

DM 25 (Italy), with the sanitary certification EAC/

Ghostreghistrazia (Russia) and WaterMark (Australia).

RA5795308

RA5795311

RA5797308

RA5797311

OD 2,40” x ID 1,10”

BT CPP HA 10 SX AB 5 mcr

BT CPP HA 10 SX AB 25 mcr

BT CPP HA 20 SX AB 5 mcr

BT CPP HA 20 SX AB 25 mcr

HEIGHT FILTRATION

FLOW RATE l/h

MICRON

10”

5

1000

10”

25

1000

20”

5

1500

20”

25

1500

A

B

C

252

72

28

252

72

28

510

72

28

510

72

28

A

272 | water treatment filter cartridges

WORKING CONDITIONS

Max working temperature ________35°C (95°F)

Min working temperature________4°C (39,2°F)

Max total hardness _____50°f (500 ppm CaCO

3

)

Remark - the treated water can be heated up to

75°C - 80°C, above that temperature the

polyphosphate loses gradually its effectiveness.

SPECIFICATIONS

Non-toxic materials, suitable for drinking water.

Filter medium: polypropylene.

Container, end cap and grid: polystyrene.

Flat seal SX: SEBS with antimicrobial technology.

O-rings BX: EPDM.

Treatment material: polyphosphate crystals

Cartridges combining a pre-filter element made from melt-blown polypropylene and a plastic container filled with polyphosphate crystals for anti-scale

water conditioning providing fine sediment pre-filtration at 5 and 25 micron and high contact time of the water through the whole polyphosphate bed for

the prevention from scale deposit and calcareous incrustation and protection from corrosion for water heaters, washing machines, pipes. BT CPP HA

cartridges are available with height 10” and 20”.

BT CPP HA SX

MELT BLOWN PP AND POLYPHOSPHATE CARTRIDGES WITH DOUBLE OPEN END (DOE)

COD

E

MODEL

NOMINA

L

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

BT CPP HA BX

MELT BLOWN PP AND POLYPHOSPHATE CARTRIDGES WITH DOUBLE O-RING COLLAR 45 MM

COD

E

MODEL

NOMINA

L

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

RA5795318

RA5795321

RA5797318

RA5797321

OD 2,40” x ID 1,10”

BT CPP HA 10 BX AB 5 mcr

BT CPP HA 10 BX AB 25 mcr

BT CPP HA 20 BX AB 5 mcr

BT CPP HA 20 BX AB 25 mcr

HEIGHT FILTRATION

FLOW RATE l/h

MICRON

10”

5

1000

10”

25

1000

20”

5

1500

20”

25

1500

A

B

252

72

252

72

510

72

510

72

C

25

25

25

25

FLOW RATE vs PRESSURE DROP Δp

Tests carried on 10” elements type BT CPP HA 10 SX.

Testing mode: 20°C, 3 BAR

5 micron

25 micron

1,5

1

0,5

0

0

1000

2000

3000

Flow rate [l/h]

4000

Δ

p

[

b

a

r

]
