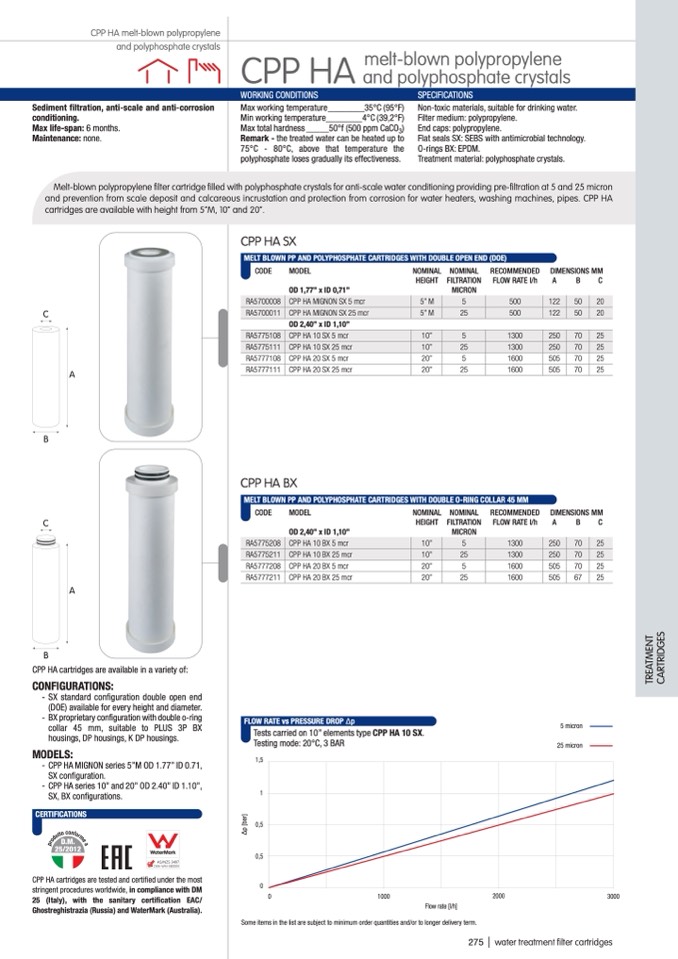

A

CPP HA melt-blown polypropylene

and polyphosphate crystals

melt-blown polypropylene

CPP HA

and polyphosphate crystals

WORKING CONDITIONS

SPECIFICATIONS

Sediment filtration, anti-scale and anti-corrosion

Max working temperature________35°C (95°F)

Non-toxic materials, suitable for drinking water.

conditioning.

Min working temperature________4°C (39,2°F)

Filter medium: polypropylene.

Max life-span: 6 months.

Max total hardness _____50°f (500 ppm CaCO

3

)

End caps: polypropylene.

Maintenance: none.

Remark - the treated water can be heated up to

Flat seals SX: SEBS with antimicrobial technology.

75°C - 80°C, above that temperature the

O-rings BX: EPDM.

polyphosphate loses gradually its effectiveness.

Treatment material: polyphosphate crystals.

Melt-blown polypropylene filter cartridge filled with polyphosphate crystals for anti-scale water conditioning providing pre-filtration at 5 and 25 micron

and prevention from scale deposit and calcareous incrustation and protection from corrosion for water heaters, washing machines, pipes. CPP HA

cartridges are available with height from 5”M, 10” and 20”.

C

A

B

C

B

CPP HA cartridges are available in a variety of:

CONFIGURATIONS:

- SX standard configuration double open end

(DOE) available for every height and diameter.

- BX proprietary configuration with double o-ring

collar 45 mm, suitable to PLUS 3P BX

housings, DP housings, K DP housings.

MODELS:

- CPP HA MIGNON series 5”M OD 1.77” ID 0.71,

SX configuration.

- CPP HA series 10” and 20” OD 2.40” ID 1.10”,

SX, BX configurations.

CERTIFICATIONS

CPP HA cartridges are tested and certified under the most

stringent procedures worldwide, in compliance with DM

25 (Italy), with the sanitary certification EAC/

Ghostreghistrazia (Russia) and WaterMark (Australia).

5” M

5” M

10”

10”

20”

20”

5

500

122

50

20

25

500

122

50

20

5

1300

250

70

25

25

1300

250

70

25

5

1600

505

70

25

25

1600

505

70

25

CPP HA SX

MELT BLOWN PP AND POLYPHOSPHATE CARTRIDGES WITH DOUBLE OPEN END (DOE)

COD

E

MODEL

NOMINA

L

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

OD 1,77” x ID 0,71”

RA5700008

CPP HA MIGNON SX 5 mcr

RA5700011

CPP HA MIGNON SX 25 mcr

OD 2,40” x ID 1,10”

RA5775108

CPP HA 10 SX 5 mcr

RA5775111

CPP HA 10 SX 25 mcr

RA5777108

CPP HA 20 SX 5 mcr

RA5777111

CPP HA 20 SX 25 mcr

CPP HA BX

HEIGHT

FILTRATION

FLOW RATE l/h

A

B

C

MICRON

MELT BLOWN PP AND POLYPHOSPHATE CARTRIDGES WITH DOUBLE O-RING COLLAR 45 MM

COD

E

MODEL

NOMINA

L

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

OD 2,40” x ID 1,10”

RA5775208

CPP HA 10 BX 5 mcr

RA5775211

CPP HA 10 BX 25 mcr

RA5777208

CPP HA 20 BX 5 mcr

RA5777211

CPP HA 20 BX 25 mcr

MICRON

FLOW RATE vs PRESSURE DROP Δp

Tests carried on 10” elements type CPP HA 10 SX.

Testing mode: 20°C, 3 BAR

1,5

1

0,5

0,5

0

5 micron

25 micron

0

1000

2000

3000

Some items in the list are subject to minimum order quantities and/or to longer delivery term.

HEIGHT

FILTRATION

FLOW RATE l/h

A

B

C

10”

10”

20”

20”

5

25

5

25

1300

250

70

25

1300

250

70

25

1600

505

70

25

1600

505

67

25

Flow rate [l/h]

275 | water treatment filter cartridges
