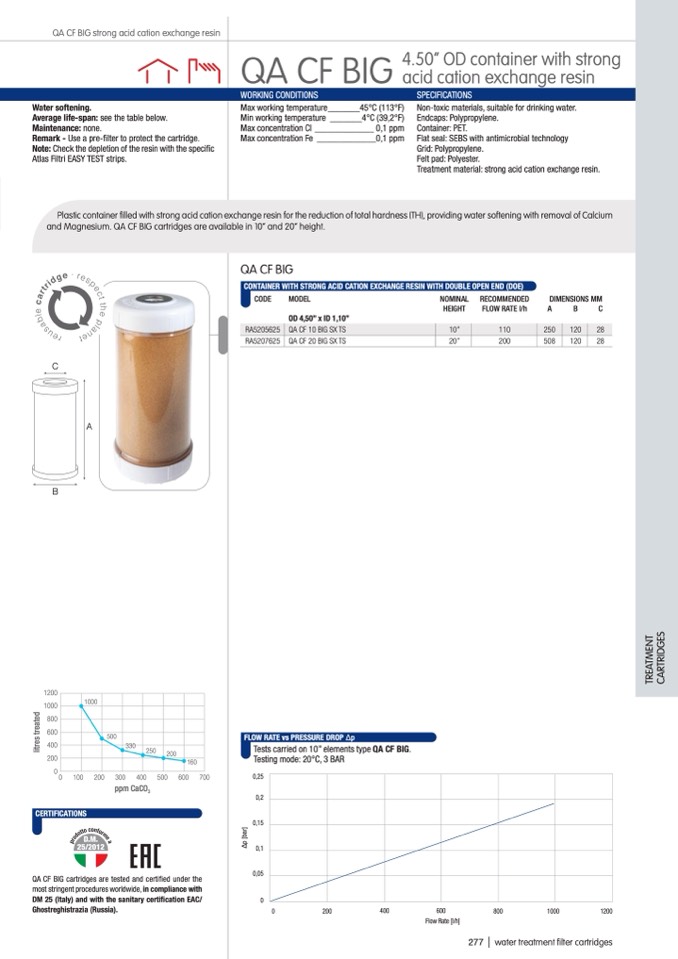

QA CF BIG strong acid cation exchange resin

QA CF BIG

4.50” OD container with strong

acid cation exchange resin

WORKING CONDITIONS

SPECIFICATIONS

Water softening.

Average life-span: see the table below.

Maintenance: none.

Remark - Use a pre-filter to protect the cartridge.

Note: Check the depletion of the resin with the specific

Atlas Filtri EASY TEST strips.

Max working temperature_______45°C (113°F)

Min working temperature _______4°C (39,2°F)

Max concentration Cl _____________ 0,1 ppm

Max concentration Fe _____________0,1 ppm

Non-toxic materials, suitable for drinking water.

Endcaps: Polypropylene.

Container: PET.

Flat seal: SEBS with antimicrobial technology

Grid: Polypropylene.

Felt pad: Polyester.

Treatment material: strong acid cation exchange resin.

Plastic container filled with strong acid cation exchange resin for the reduction of total hardness (TH), providing water softening with removal of Calcium

and Magnesium. QA CF BIG cartridges are available in 10” and 20” height.

C

B

A

1200

1000

800

600

400

200

0

CERTIFICATIONS

600

700

FLOW RATE vs PRESSURE DROP Δp

Tests carried on 10” elements type QA CF BIG.

Testing mode: 20°C, 3 BAR

0,25

0,2

0,15

0,1

0,05

0

0

100

200

300

400

500

ppm CaCO

3

QA CF BIG cartridges are tested and certified under the

most stringent procedures worldwide, in compliance with

DM 25 (Italy) and with the sanitary certification EAC/

Ghostreghistrazia (Russia).

0

200

400

600

Flow Rate [l/h]

800

1000

1200

QA CF BIG

CONTAINER WITH STRONG ACID CATION EXCHANGE RESIN WITH DOUBLE OPEN END (DOE)

COD

E

MODEL

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

RA5207625

OD 4,50” x ID 1,10”

QA CF 20 BIG SX TS

HEIGHT

20”

FLOW RATE l/h

A

200

508

B

C

120

28

277 | water treatment filter cartridges

RA5205625 QA CF 10 BIG SX TS

10”

110

250

120

28

1000

500

330

250

200

160

Δ

p

[

b

a

r

]

l

i

t

r

e

s

t

r

e

a

t

e

d
