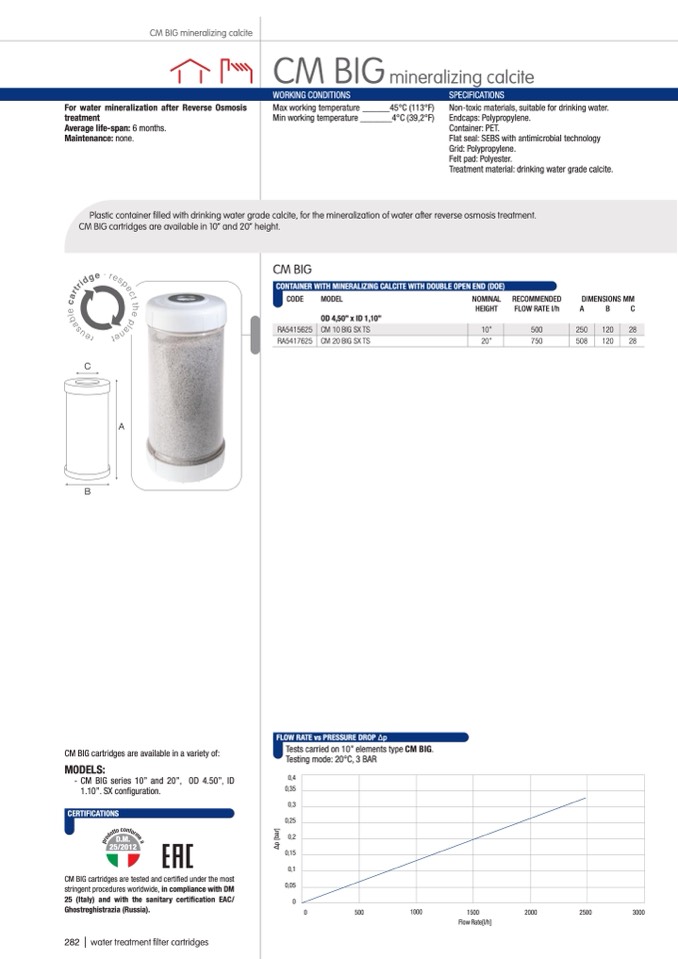

CM BIG mineralizing calcite

CM BIG

mineralizing calcite

WORKING CONDITIONS

SPECIFICATIONS

For water mineralization after Reverse Osmosis

treatment

Average life-span: 6 months.

Maintenance: none.

Max working temperature ______45°C (113°F)

Min working temperature _______4°C (39,2°F)

Non-toxic materials, suitable for drinking water.

Endcaps: Polypropylene.

Container: PET.

Flat seal: SEBS with antimicrobial technology

Grid: Polypropylene.

Felt pad: Polyester.

Treatment material: drinking water grade calcite.

Plastic container filled with drinking water grade calcite, for the mineralization of water after reverse osmosis treatment.

CM BIG cartridges are available in 10” and 20” height.

C

B

A

RA5415625 CM 10 BIG SX TS

10”

500

250

120

28

CM BIG cartridges are available in a variety of:

MODELS:

- CM BIG series 10” and 20”, OD 4.50”, ID

1.10”. SX configuration.

CERTIFICATIONS

CM BIG cartridges are tested and certified under the most

stringent procedures worldwide, in compliance with DM

25 (Italy) and with the sanitary certification EAC/

Ghostreghistrazia (Russia).

FLOW RATE vs PRESSURE DROP Δp

Tests carried on 10” elements type CM BIG.

Testing mode: 20°C, 3 BAR

0,4

0,35

0,3

0,25

0,2

0,15

0,1

0,05

0

Δ

p

[

b

a

r

]

282 | water treatment filter cartridges

CM BIG

CONTAINER WITH MINERALIZING CALCITE WITH DOUBLE OPEN END (DOE)

COD

E

MODEL

NOMINA

L

RECOMMENDE

D

DIMENSIONSMM

RA5417625

OD 4,50” x ID 1,10”

CM 20 BIG SX TS

HEIGHT

20”

FLOW RATE l/h

A

750

508

B

C

120

28

0

500

1000

1500

Flow Rate[l/h]

2000

2500

3000
