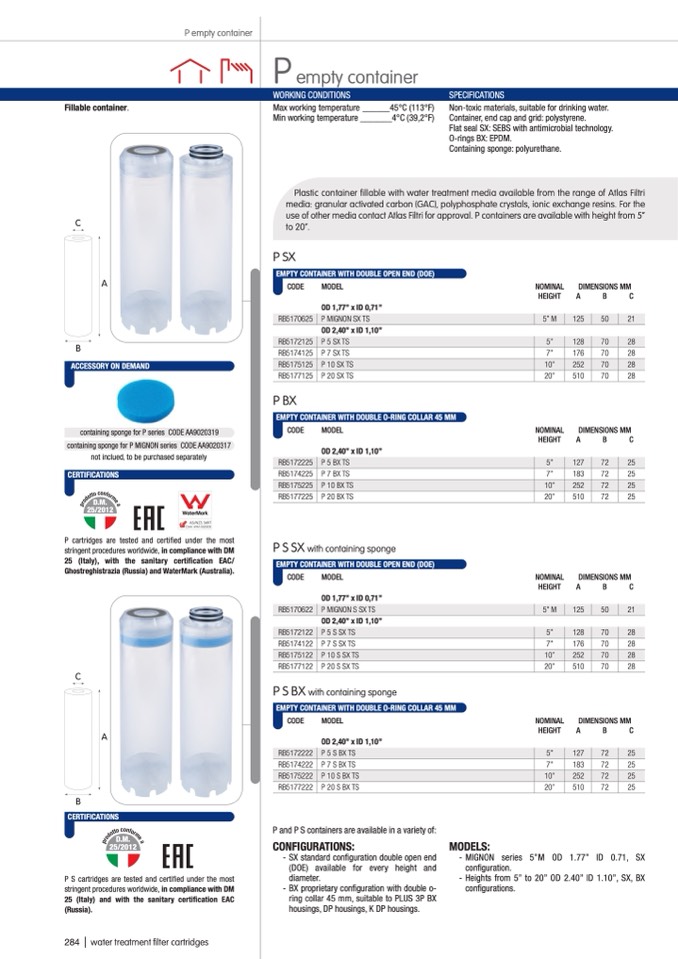

P empty container

Fillable container.

P

empty container

WORKING CONDITIONS

Max working temperature ______45°C (113°F)

Min working temperature _______4°C (39,2°F)

SPECIFICATIONS

Non-toxic materials, suitable for drinking water.

Container, end cap and grid: polystyrene.

Flat seal SX: SEBS with antimicrobial technology.

O-rings BX: EPDM.

Containing sponge: polyurethane.

C

A

B

ACCESSORY ON DEMAND

Plastic container fillable with water treatment media available from the range of Atlas Filtri

media: granular activated carbon (GAC), polyphosphate crystals, ionic exchange resins. For the

use of other media contact Atlas Filtri for approval. P containers are available with height from 5”

to 20”.

P SX

EMPTY CONTAINER WITH DOUBLE OPEN END (DOE)

COD

E

MODEL

NOMINA

L

DIMENSIONSMM

HEIGHT

A

B

C

OD 1,77” x ID 0,71”

P MIGNON SX TS

OD 2,40” x ID 1,10”

P 5 SX TS

P 7 SX TS

P 10 SX TS

P 20 SX TS

EMPTY CONTAINER WITH DOUBLE O-RING COLLAR 45 MM

RB5170625

RB5172125

RB5174125

RB5175125

RB5177125

P BX

5” M

125

50

21

5”

128

70

28

7”

176

70

28

10”

252

70

28

20”

510

70

28

containing sponge for P series CODE AA9020319

containing sponge for P MIGNON series CODE AA9020317

not inclued, to be purchased separately

CERTIFICATIONS

P cartridges are tested and certified under the most

stringent procedures worldwide, in compliance with DM

25 (Italy), with the sanitary certification EAC/

Ghostreghistrazia (Russia) and WaterMark (Australia).

C

A

B

CERTIFICATIONS

P S cartridges are tested and certified under the most

stringent procedures worldwide, in compliance with DM

25 (Italy) and with the sanitary certification EAC

(Russia).

COD

E

MODEL

NOMINA

L

DIMENSIONSMM

HEIGHT

A

B

C

RB5172225

RB5174225

RB5175225

RB5177225

OD 2,40” x ID 1,10”

P 5 BX TS

P 7 BX TS

P 10 BX TS

P 20 BX TS

5”

127

72

25

7”

183

72

25

10”

252

72

25

20”

510

72

25

P S SX with containing sponge

EMPTY CONTAINER WITH DOUBLE OPEN END (DOE)

COD

E

MODEL

NOMINA

L

DIMENSIONSMM

HEIGHT

A

B

C

RB5170622

RB5172122

RB5174122

RB5175122

RB5177122

OD 1,77” x ID 0,71”

P MIGNON S SX TS

OD 2,40” x ID 1,10”

P 5 S SX TS

P 7 S SX TS

P 10 S SX TS

P 20 S SX TS

5” M

125

50

21

5”

128

70

28

7”

176

70

28

10”

252

70

28

20”

510

70

28

P S BX with containing sponge

EMPTY CONTAINER WITH DOUBLE O-RING COLLAR 45 MM

COD

E

MODEL

NOMINA

L

DIMENSIONSMM

HEIGHT

A

B

C

RB5172222

RB5174222

RB5175222

RB5177222

OD 2,40” x ID 1,10”

P 5 S BX TS

P 7 S BX TS

P 10 S BX TS

P 20 S BX TS

5”

127

72

25

7”

183

72

25

10”

252

72

25

20”

510

72

25

P containers are available in a variety of:

MODELS:

- MIGNON series 5”M OD 1.77” ID 0.71, SX

configuration.

- Heights from 5” to 20” OD 2.40” ID 1.10”, SX, BX

configurations.

P and P S containers are available in a variety of:

CONFIGURATIONS:

- SX standard configuration double open end

(DOE) available for every height and

diameter.

- BX proprietary configuration with double o-

ring collar 45 mm, suitable to PLUS 3P BX

housings, DP housings, K DP housings.

284 | water treatment filter cartridges
