ATLAS
green
R
I

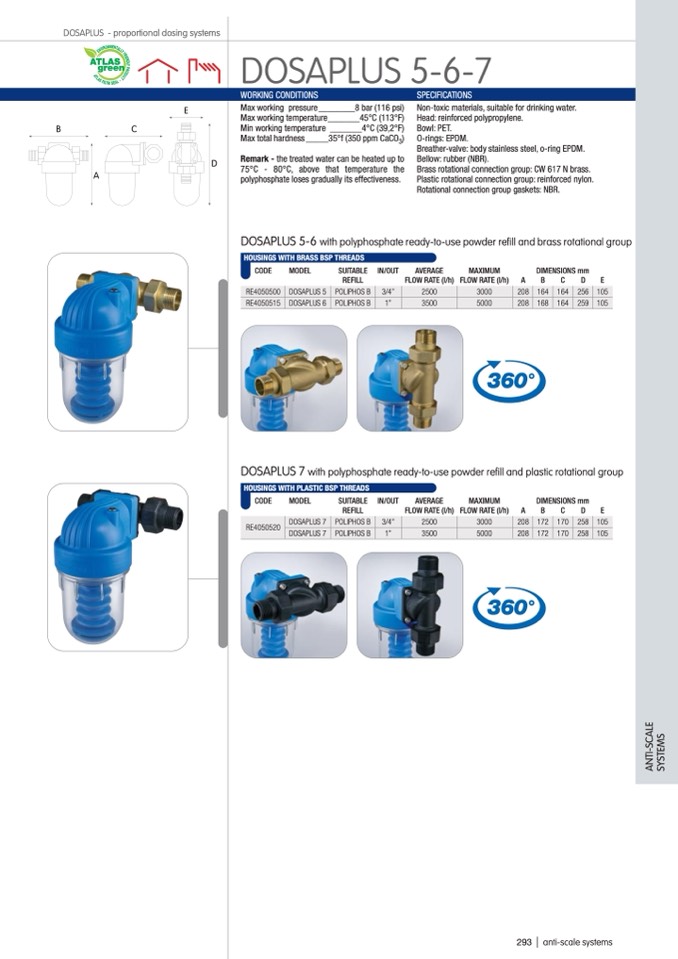

DOSAPLUS 5-6-7
WORKING CONDITIONS
SPECIFICATIONS
B
C
A
E
D
Max working pressure________8 bar (116 psi)
Max working temperature_______45°C (113°F)
Min working temperature _______4°C (39,2°F)
Max total hardness _____35°f (350 ppm CaCO
3
)
Remark - the treated water can be heated up to
75°C - 80°C, above that temperature the
polyphosphate loses gradually its effectiveness.
Non-toxic materials, suitable for drinking water.
Head: reinforced polypropylene.
Bowl: PET.
O-rings: EPDM.
Breather-valve: body stainless steel, o-ring EPDM.
Bellow: rubber (NBR).
Brass rotational connection group: CW 617 N brass.
Plastic rotational connection group: reinforced nylon.
Rotational connection group gaskets: NBR.
DOSAPLUS 5-6 with polyphosphate ready-to-use powder refill and brass rotational group
HOUSINGS WITH BRASS BSP THREADS
CODE
MODEL
SUITABLE
IN/OUT
AVERAGE
MAXIMUM
DIMENSIONS mm
REFILL
FLOW RATE (l/h) FLOW RATE (l/h)
A
B
C
D
E
360°
DOSAPLUS 7 with polyphosphate ready-to-use powder refill and plastic rotational group
RE4050500 DOSAPLUS 5 POLIPHOS B
3/4”
2500
3000
208 164 164 256 105
RE4050515 DOSAPLUS 6 POLIPHOS B
1”
3500
5000
208 168 164 259 105
HOUSINGS WITH PLASTIC BSP THREADS
CODE
MODEL
SUITABLE
IN/OUT
REFILL
AVERAGE
MAXIMUM
DIMENSIONS mm
FLOW RATE (l/h) FLOW RATE (l/h)
A
B
C
D
E
360°
RE4050520
DOSAPLUS 7 POLIPHOS B
3/4”
2500
3000
208 172 170 258 105
DOSAPLUS 7 POLIPHOS B
1”
3500
5000
208 172 170 258 105
293 | anti-scale systems
