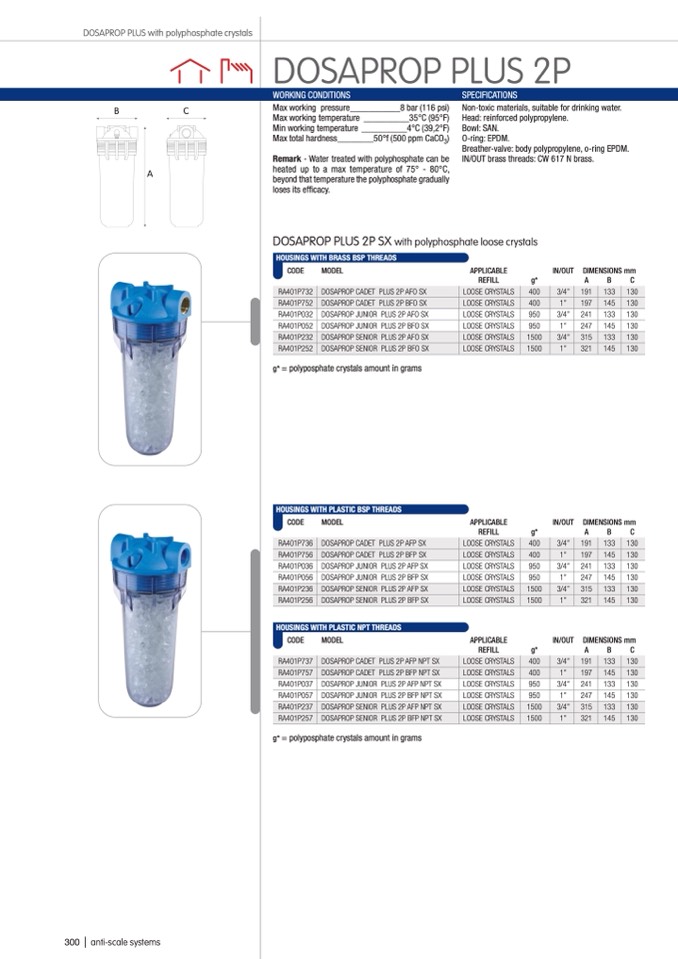

DOSAPROP PLUS with polyphosphate crystals

DOSAPROP PLUS 2P

WORKING CONDITIONS

SPECIFICATIONS

B

C

A

300 | anti-scale systems

Max working pressure___________8 bar (116 psi)

Max working temperature __________35°C (95°F)

Min working temperature __________4°C (39,2°F)

Max total hardness________50°f (500 ppm CaCO

3

)

Remark - Water treated with polyphosphate can be

heated up to a max temperature of 75° - 80°C,

beyond that temperature the polyphosphate gradually

loses its efficacy.

Non-toxic materials, suitable for drinking water.

Head: reinforced polypropylene.

Bowl: SAN.

O-ring: EPDM.

Breather-valve: body polypropylene, o-ring EPDM.

IN/OUT brass threads: CW 617 N brass.

DOSAPROP PLUS 2P SX with polyphosphate loose crystals

HOUSINGS WITH BRASS BSP THREADS

CODE

RA401P032

RA401P052

MODEL

APPLICABLE

REFILL

g*

A

B

C

130

130

RA401P732

RA401P752

RA401P232

RA401P252

RA401P736

RA401P756

RA401P236

RA401P256

RA401P737

RA401P757

RA401P237

RA401P257

DOSAPROP CADET PLUS 2P AFO SX

DOSAPROP CADET PLUS 2P BFO SX

DOSAPROP JUNIOR PLUS 2P AFO SX

DOSAPROP JUNIOR PLUS 2P BFO SX

DOSAPROP SENIOR PLUS 2P AFO SX

DOSAPROP SENIOR PLUS 2P BFO SX

DOSAPROP CADET PLUS 2P AFP SX

DOSAPROP CADET PLUS 2P BFP SX

DOSAPROP JUNIOR PLUS 2P AFP SX

DOSAPROP JUNIOR PLUS 2P BFP SX

DOSAPROP SENIOR PLUS 2P AFP SX

DOSAPROP SENIOR PLUS 2P BFP SX

DOSAPROP CADET PLUS 2P AFP NPT SX

DOSAPROP CADET PLUS 2P BFP NPT SX

DOSAPROP JUNIOR PLUS 2P AFP NPT SX

DOSAPROP JUNIOR PLUS 2P BFP NPT SX

DOSAPROP SENIOR PLUS 2P AFP NPT SX

DOSAPROP SENIOR PLUS 2P BFP NPT SX

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

LOOSE CRYSTALS

400

400

950

950

1500

1500

400

400

950

950

1500

1500

400

400

950

950

1500

1500

IN/OUT DIMENSIONS mm

3/4”

1”

3/4”

1”

3/4”

1”

3/4”

1”

3/4”

1”

3/4”

1”

3/4”

1”

3/4”

1”

3/4”

1”

191

197

241

247

315

321

191

197

241

247

315

321

191

197

241

247

315

321

133

145

133

145

133

145

133

145

133

145

133

145

133

145

133

145

133

145

130

130

130

130

g* = polyposphate crystals amount in grams

HOUSINGS WITH PLASTIC BSP THREADS

CODE

RA401P036

RA401P056

MODEL

APPLICABLE

REFILL

g*

A

B

C

130

130

IN/OUT

DIMENSIONS mm

130

130

130

130

HOUSINGS WITH PLASTIC NPT THREADS

CODE

RA401P037

RA401P057

MODEL

APPLICABLE

REFILL

g*

A

B

C

130

130

IN/OUT

DIMENSIONS mm

130

130

130

130

g* = polyposphate crystals amount in grams
