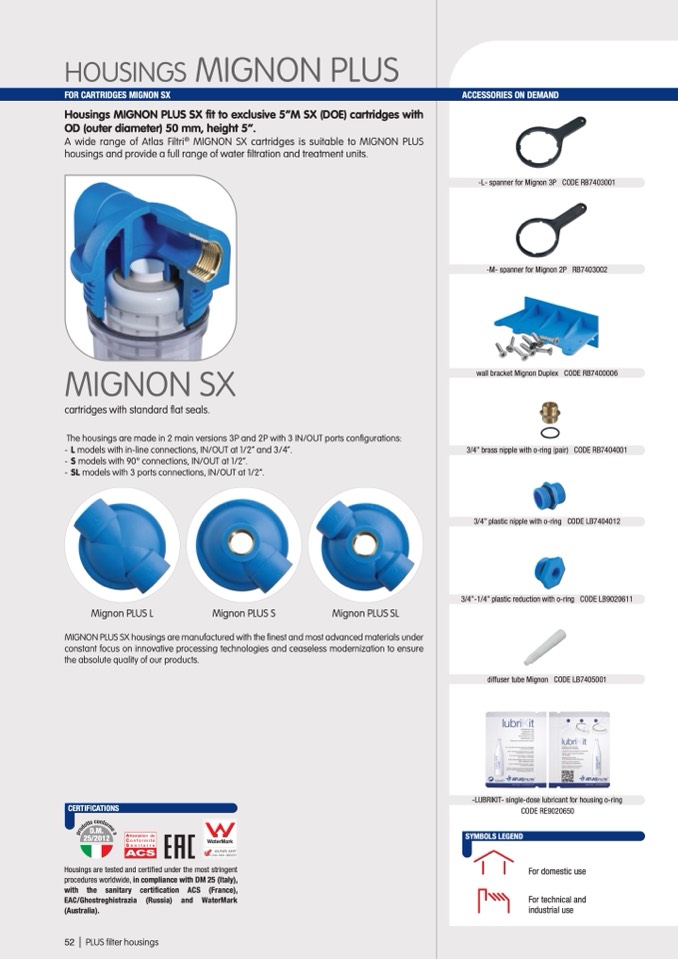

HOUSINGS MIGNON PLUS

FOR CARTRIDGES MIGNON SX

Housings MIGNON PLUS SX fit to exclusive 5”M SX (DOE) cartridges with

OD (outer diameter) 50 mm, height 5”.

A wide range of Atlas Filtri

®

MIGNON SX cartridges is suitable to MIGNON PLUS

housings and provide a full range of water filtration and treatment units.

MIGNON SX

cartridges with standard flat seals.

The housings are made in 2 main versions 3P and 2P with 3 IN/OUT ports configurations:

- L models with in-line connections, IN/OUT at 1/2” and 3/4”.

- S models with 90° connections, IN/OUT at 1/2”.

- SL models with 3 ports connections, IN/OUT at 1/2”.

ACCESSORIES ON DEMAND

-L- spanner for Mignon 3P

CODE RB7403001

-M- spanner for Mignon 2P RB7403002

wall bracket Mignon Duplex CODE RB7400006

3/4” brass nipple with o-ring (pair)

CODE RB7404001

Mignon PLUS L

Mignon PLUS S

Mignon PLUS SL

3/4” plastic nipple with o-ring CODE LB7404012

3/4”-1/4” plastic reduction with o-ring CODE LB9020611

diffuser tube Mignon CODE LB7405001

-LUBRIKIT- single-dose lubricant for housing o-ring

CODE RE9020650

MIGNON PLUS SX housings are manufactured with the finest and most advanced materials under

constant focus on innovative processing technologies and ceaseless modernization to ensure

the absolute quality of our products.

CERTIFICATIONS

Housings are tested and certified under the most stringent

procedures worldwide, in compliance with DM 25 (Italy),

with the sanitary certification ACS (France),

EAC/Ghostreghistrazia (Russia) and WaterMark

(Australia).

SYMBOLS LEGEND

52 | PLUS filter housings

For domestic use

For technical and

industrial use
