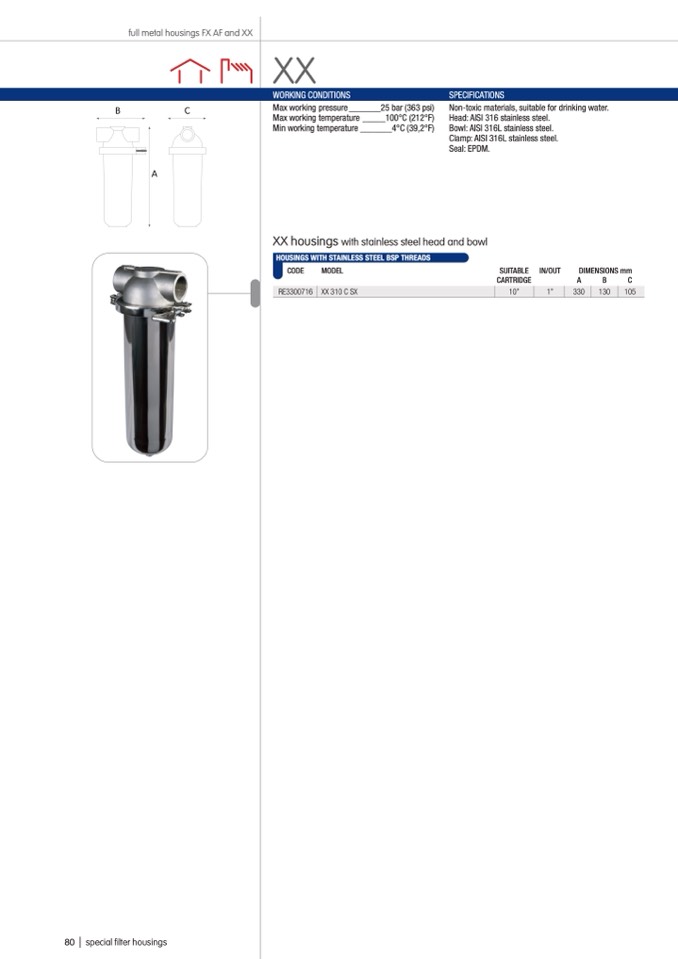

full metal housings FX AF and XX

XX

WORKING CONDITIONS

SPECIFICATIONS

B

C

A

80 | special filter housings

Max working pressure _______25 bar (363 psi)

Max working temperature _____100°C (212°F)

Min working temperature _______4°C (39,2°F)

Non-toxic materials, suitable for drinking water.

Head: AISI 316 stainless steel.

Bowl: AISI 316L stainless steel.

Clamp: AISI 316L stainless steel.

XX housings with stainless steel head and bowl

HOUSINGS WITH STAINLESS STEEL BSP THREADS

CODE

MODEL

RE3300716 XX 310 C SX

SUITABLE

IN/OUT

CARTRIDGE

10”

1”

DIMENSIONS mm

A

B

C

330

130

105

Seal: EPDM.
