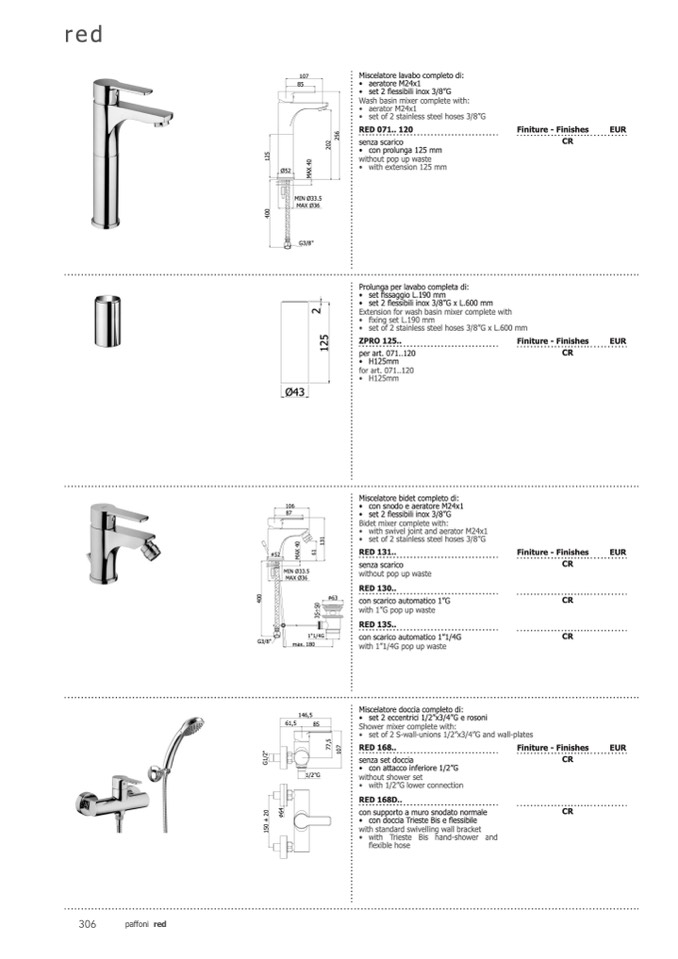

red

306

paffoni red

G3/8"

Finiture - Finishes

EUR

CR

CR

CR

107

85

MIN Ø33.5

MAX Ø36

G3/8"

Ø43

106

87

∅52

MIN Ø33.5

MAX Ø36

∅63

1"1/4G

max. 180

146,5

61,5

85

1/2"G

Miscelatore lavabo completo di:

• aeratore M24x1

• set 2 flessibili inox 3/8”G

Wash basin mixer complete with:

• aerator M24x1

Ø52

• set of 2 stainless steel hoses 3/8”G

RED 071.. 120

senza scarico

• con prolunga 125 mm

without pop up waste

• with extension 125 mm

Finiture - Finishes

EUR

CR

Prolunga per lavabo completa di:

• set fissaggio L.190 mm

• set 2 flessibili inox 3/8”G x L.600 mm

Extension for wash basin mixer complete with

• fixing set L.190 mm

• set of 2 stainless steel hoses 3/8”G x L.600 mm

ZPRO 125..

per art. 071..120

• H125mm

for art. 071..120

• H125mm

Miscelatore bidet completo di:

• con snodo e aeratore M24x1

• set 2 flessibili inox 3/8”G

Bidet mixer complete with:

• with swivel joint and aerator M24x1

• set of 2 stainless steel hoses 3/8”G

RED 131..

senza scarico

without pop up waste

RED 130..

con scarico automatico 1”G

with 1”G pop up waste

RED 135..

con scarico automatico 1”1/4G

with 1”1/4G pop up waste

Finiture - Finishes

EUR

CR

Miscelatore doccia completo di:

• set 2 eccentrici 1/2”x3/4”G e rosoni

Shower mixer complete with:

• set of 2 S-wall-unions 1/2”x3/4”G and wall-plates

RED 168..

senza set doccia

• con attacco inferiore 1/2”G

without shower set

• with 1/2”G lower connection

RED 168D..

Finiture - Finishes

EUR

CR

CR

con supporto a muro snodato normale

• con doccia Trieste Bis e flessibile

with standard swivelling wall bracket

• with Trieste Bis hand-shower and

flexible hose
