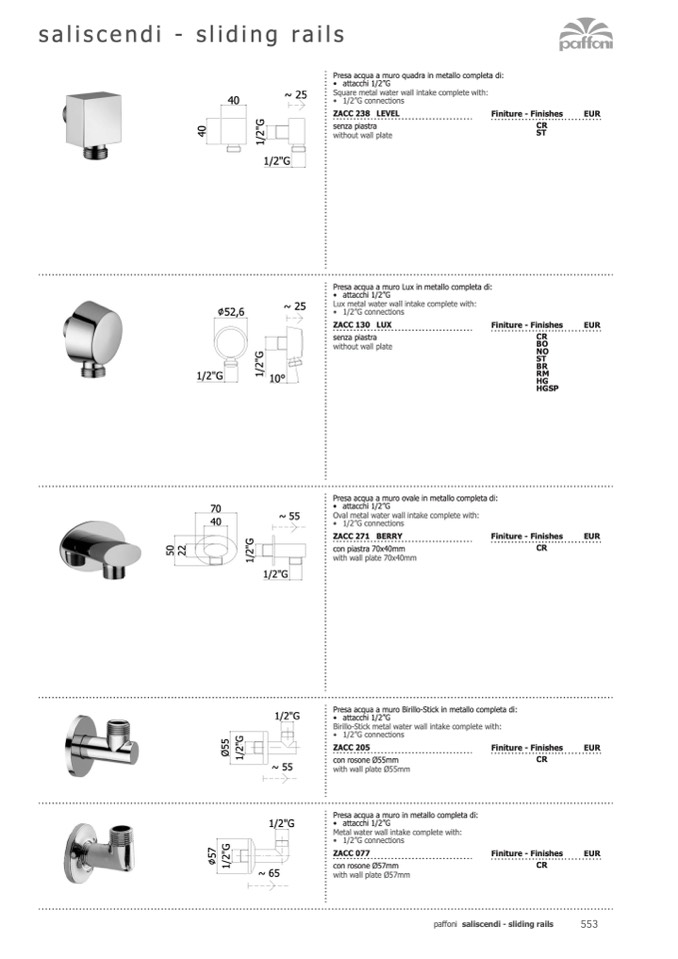

saliscendi - sliding rails

40

~ 25

1/2"G

Presa acqua a muro quadra in metallo completa di:

• attacchi 1/2”G

Square metal water wall intake complete with:

• 1/2”G connections

ZACC 238 LEVEL

senza piastra

without wall plate

Finiture - Finishes

EUR

CR

ST

∅52,6

1/2"G

~ 25

Presa acqua a muro Lux in metallo completa di:

• attacchi 1/2”G

Lux metal water wall intake complete with:

• 1/2”G connections

ZACC 130 LUX

senza piastra

without wall plate

Finiture - Finishes

EUR

CR

BO

NO

ST

BR

RM

HG

HGSP

70

40

~ 55

1/2"G

Presa acqua a muro ovale in metallo completa di:

• attacchi 1/2”G

Oval metal water wall intake complete with:

• 1/2”G connections

ZACC 271 BERRY

con piastra 70x40mm

with wall plate 70x40mm

Finiture - Finishes

EUR

CR

1/2"G

~ 55

Presa acqua a muro Birillo-Stick in metallo completa di:

• attacchi 1/2”G

Birillo-Stick metal water wall intake complete with:

• 1/2”G connections

ZACC 205

Finiture - Finishes

EUR

con rosone Ø55mm

CR

with wall plate Ø55mm

1/2"G

~ 65

Presa acqua a muro in metallo completa di:

• attacchi 1/2”G

Metal water wall intake complete with:

• 1/2”G connections

ZACC 077

con rosone Ø57mm

with wall plate Ø57mm

Finiture - Finishes

EUR

CR
