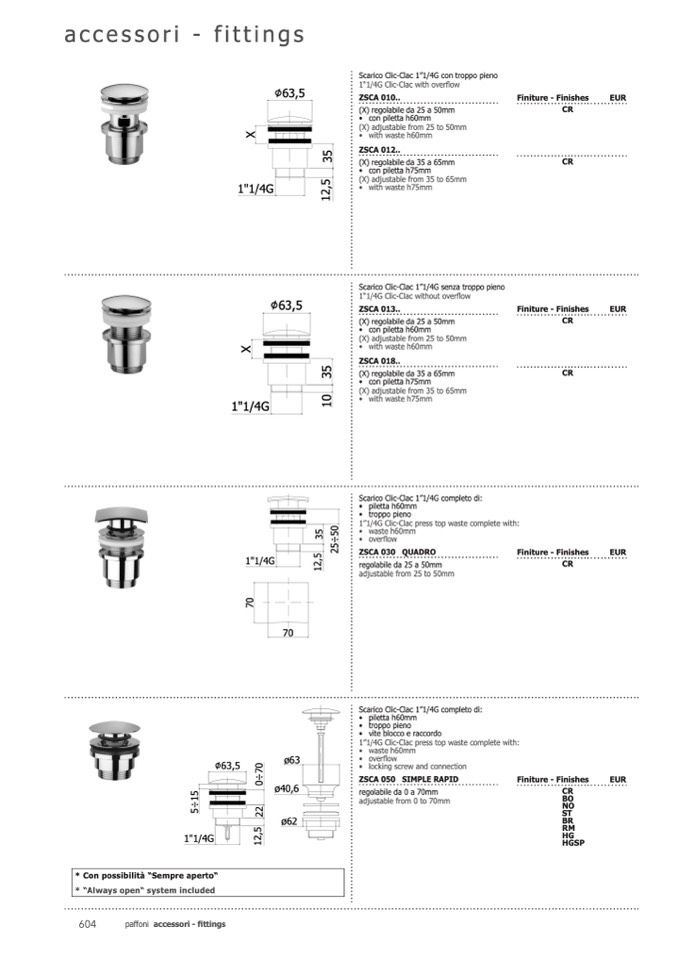

accessori - fittings

∅63,5

ø62

* Con possibilità “Sempre aperto“

* “Always open“ system included

ZSCA 050 SIMPLE RAPID

regolabile da 0 a 70mm

adjustable from 0 to 70mm

Finiture - Finishes

EUR

CR

BO

NO

ST

BR

RM

HG

HGSP

604

paffoni accessori - fittings

1"1/4G

∅63,5

1"1/4G

∅63,5

1"1/4G

1"1/4G

70

Scarico Clic-Clac 1”1/4G con troppo pieno

1“1/4G Clic-Clac with overflow

ZSCA 010..

(X) regolabile da 25 a 50mm

• con piletta h60mm

(X) adjustable from 25 to 50mm

• with waste h60mm

ZSCA 012..

(X) regolabile da 35 a 65mm

• con piletta h75mm

(X) adjustable from 35 to 65mm

• with waste h75mm

Scarico Clic-Clac 1”1/4G senza troppo pieno

1“1/4G Clic-Clac without overflow

ZSCA 013..

(X) regolabile da 25 a 50mm

• con piletta h60mm

(X) adjustable from 25 to 50mm

• with waste h60mm

ZSCA 018..

(X) regolabile da 35 a 65mm

• con piletta h75mm

(X) adjustable from 35 to 65mm

• with waste h75mm

Scarico Clic-Clac 1”1/4G completo di:

• piletta h60mm

• troppo pieno

1”1/4G Clic-Clac press top waste complete with:

• waste h60mm

• overflow

ZSCA 030 QUADRO

regolabile da 25 a 50mm

adjustable from 25 to 50mm

Scarico Clic-Clac 1”1/4G completo di:

• piletta h60mm

• troppo pieno

• vite blocco e raccordo

ø63

ø40,6

1”1/4G Clic-Clac press top waste complete with:

• waste h60mm

• overflow

• locking screw and connection

Finiture - Finishes

EUR

CR

CR

Finiture - Finishes

EUR

CR

CR

Finiture - Finishes

EUR

CR

5

÷

1

5

1

2

,

5

2

2

0

÷

7

0

7

0

X

X

1

2

,

5

3

5

2

5

÷

5

0

1

0

3

5

1

2

,

5

3

5
