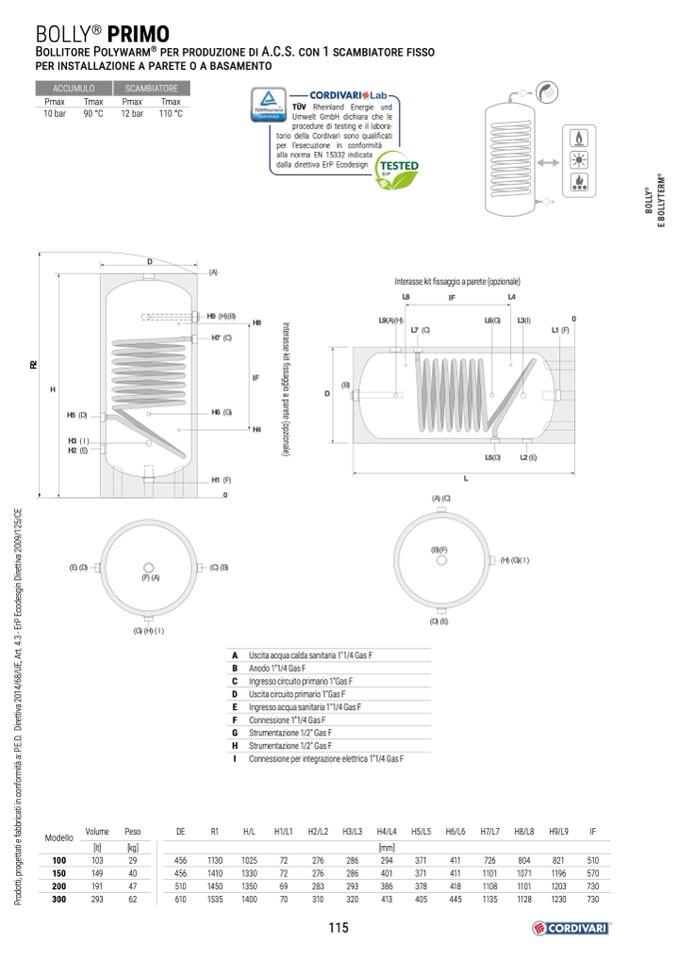

BOLLY

®

PRIMO

B P

®

A.C.S. 1

ACCUMULO

SCAMBIATORE

Pmax

10 bar

Tmax

90 °C

Pmax

12 bar

Tmax

110 °C

TÜV Rheinland Energie und

Umwelt GmbH dichiara che le

procedure di testing e il labora-

torio della Cordivari sono qualificati

per l’esecuzione in conformità

alla norma EN 15332 indicata

dalla direttiva ErP Ecodesign

D

(A)

Interasse kit fissaggio a parete (opzionale)

L8

IF

L4

H9 (H)(B)

H7 (C)

H6 (G)

H8

IF

H4

L9(A)(H)

L3(I)

0

L1 (F)

L7 (C)

L6(G)

H

D

(B)

H5 (D)

H3 ( I )

H2 (E)

L5(D)

L2 (E)

(E) (D)

H1 (F)

0

(C) (B)

L

(A) (C)

(B)(F)

(D) (E)

(H)(G)(I)

(F) (A)

(G)(H)(I)

A Uscita acqua calda sanitaria 1"1/4 Gas F

B Anodo 1"1/4 Gas F

C Ingresso circuito primario 1"Gas F

D Uscita circuito primario 1"Gas F

E Ingresso acqua sanitaria 1"1/4 Gas F

F Connessione 1”1/4 Gas F

G Strumentazione 1/2" Gas F

H Strumentazione 1/2” Gas F

I Connessione per integrazione elettrica 1”1/4 Gas F

Volume

Peso

DE

R1

H/L

H1/L1

H2/L2

H3/L3

H4/L4

H5/L5

H6/L6

H7/L7

H8/L8

H9/L9

IF

Modello

[lt]

[kg]

[mm]

100

103

29

456

1130

1025

72

276

286

294

371

411

726

804

821

510

150

149

40

456

1410

1330

72

276

286

401

371

411

1101

1071

1196

570

200

191

47

510

1450

1350

69

283

293

386

378

418

1108

1101

1203

730

300

293

62

610

1535

1400

70

310

320

413

405

445

1135

1128

1230

730

115
