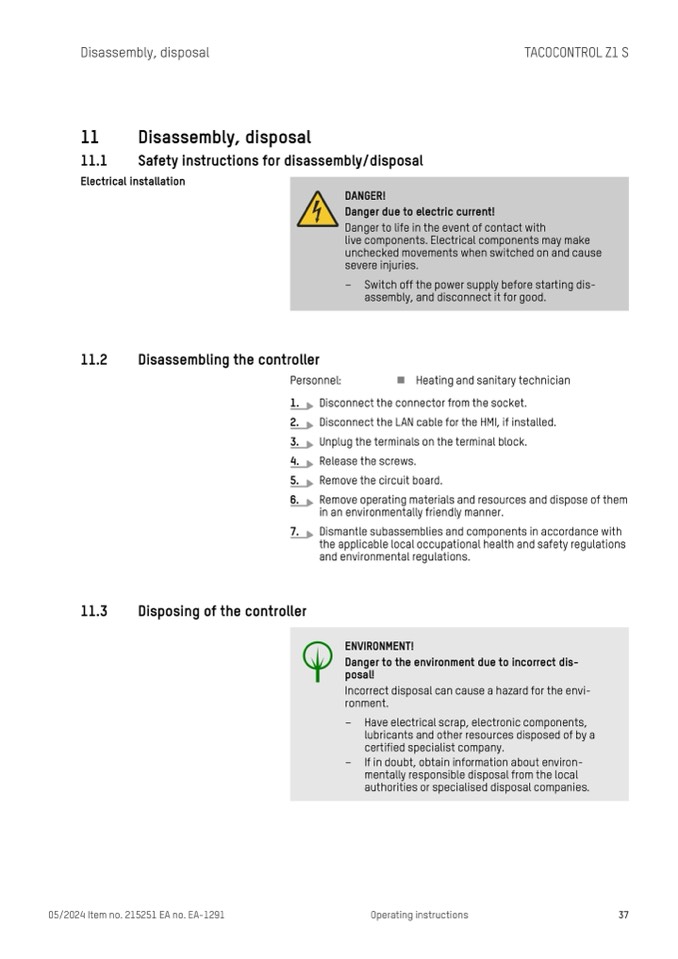

Disassembly, disposal

TACOCONTROL Z1 S

11

Disassembly, disposal

11.1

Safety instructions for disassembly/disposal

Electrical installation

DANGER!

Danger due to electric current!

Danger to life in the event of contact with

live components. Electrical components may make

unchecked movements when switched on and cause

severe injuries.

– Switch off the power supply before starting dis-

assembly, and disconnect it for good.

11.2

Disassembling the controller

Personnel:

n Heating and sanitary technician

1.

2.

3.

4.

5.

6.

7.

11.3

Disposing of the controller

Disconnect the connector from the socket.

Disconnect the LAN cable for the HMI, if installed.

Unplug the terminals on the terminal block.

Release the screws.

Remove the circuit board.

Remove operating materials and resources and dispose of them

in an environmentally friendly manner.

Dismantle subassemblies and components in accordance with

the applicable local occupational health and safety regulations

and environmental regulations.

ENVIRONMENT!

Danger to the environment due to incorrect dis-

posal!

Incorrect disposal can cause a hazard for the envi-

ronment.

– Have electrical scrap, electronic components,

lubricants and other resources disposed of by a

certified specialist company.

– If in doubt, obtain information about environ-

mentally responsible disposal from the local

authorities or specialised disposal companies.
