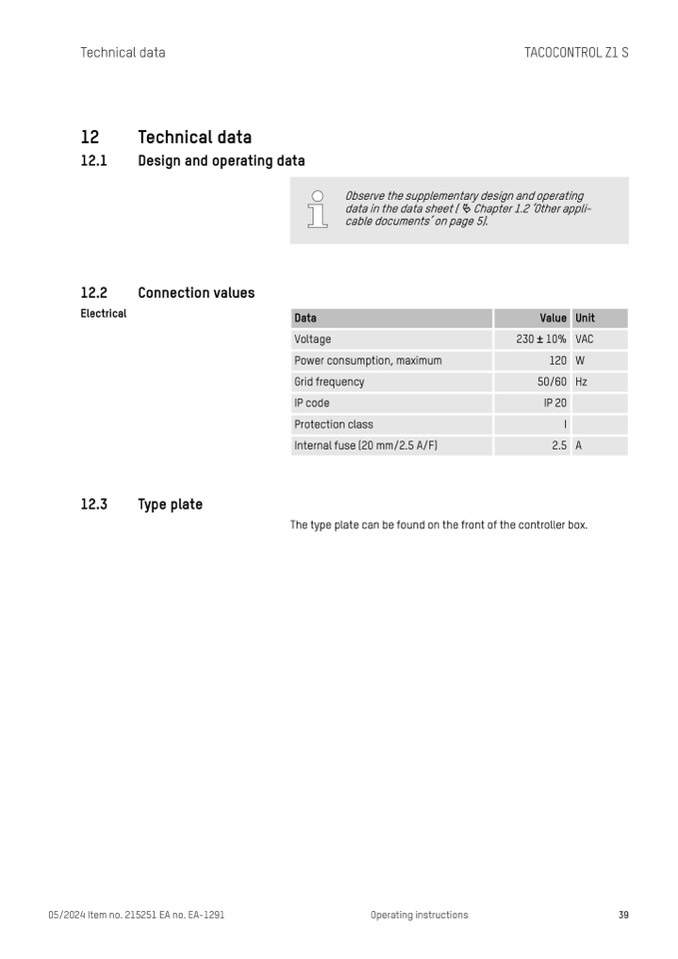

Technical data

TACOCONTROL Z1 S

12

Technical data

12.1

Design and operating data

12.2

Connection values

Electrical

Data

Value Unit

Voltage

230 ± 10% VAC

Power consumption, maximum

120 W

Grid frequency

50/60 Hz

IP code

IP 20

Protection class

I

Internal fuse (20 mm/2.5 A/F)

2.5 A

12.3

Type plate

The type plate can be found on the front of the controller box.

05/2024 Item no. 215251 EA no. EA-1291

Operating instructions

39

Observe the supplementary design and operating

data in the data sheet (

Ä Chapter 1.2 ‘Other appli-

cable documents’ on page 5).
