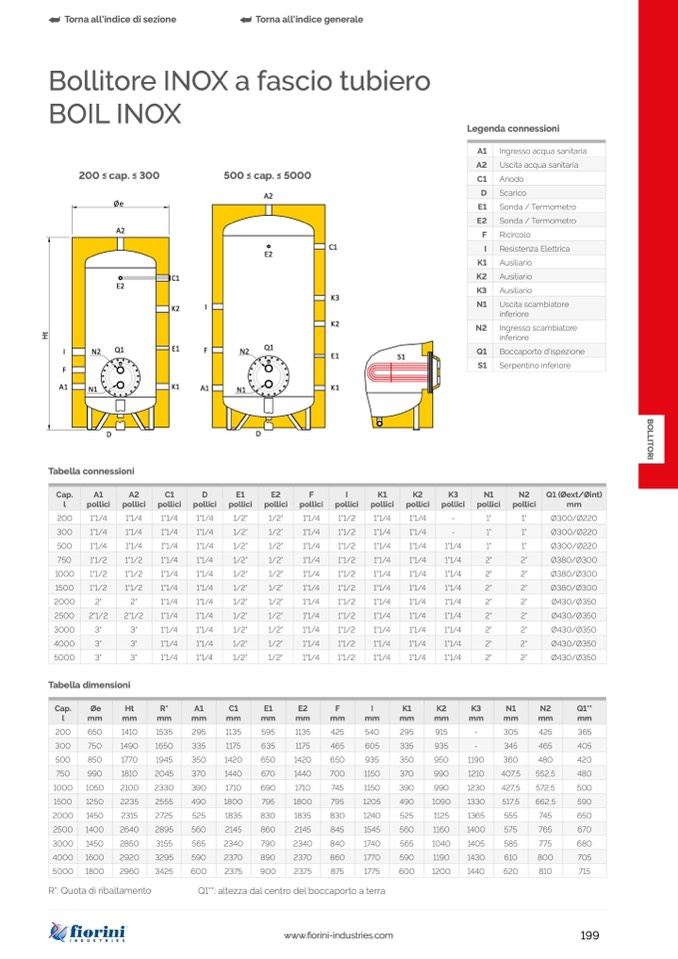

Bollitore INOX a fascio tubiero
BOIL INOX
Legenda connessioni
A1
Ingresso acqua sanitaria
A2
Uscita acqua sanitaria
C1
Anodo
D
Scarico
E1
Sonda / Termometro
E2
Sonda / Termometro
F
Ricircolo
I
Resistenza Elettrica
K1
Ausiliario
K2
Ausiliario
K3
Ausiliario
N1
Uscita scambiatore
inferiore
N2
Ingresso scambiatore
inferiore
200 ≤ cap. ≤ 300
Øe
A2
E2
500 ≤ cap. ≤ 5000
A2
E2
C1
K3
K2
C1
K2
I
t
H
D
D
Tabella connessioni
Cap.
A1
A2
C1
D
E1
E2
F
I
K1
K2
K3
N1
N2
Q1 (Øext/Øint)
l
pollici
pollici
pollici
pollici
pollici
pollici
pollici
pollici
pollici
pollici
pollici
pollici
pollici
mm
200
1"1/4
1"1/4
1"1/4
1"1/4
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
-
1"
1"
Ø300/Ø220
300
1"1/4
1"1/4
1"1/4
1"1/4
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
-
1"
1"
Ø300/Ø220
500
1"1/4
1"1/4
1"1/4
1"1/4
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
1"
1"
Ø300/Ø220
750
1"1/2
1"1/2
1"1/4
1"1/4
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
2"
2"
Ø380/Ø300
1000
1"1/2
1"1/2
1"1/4
1"1/4
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
2"
2"
Ø380/Ø300
1500
1"1/2
1"1/2
1"1/4
1"1/4
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
2"
2"
Ø380/Ø300
2000
2"
2"
1"1/4
1"1/4
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
2"
2"
Ø430/Ø350
2500
2"1/2
2"1/2
1"1/4
1"1/4
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
2"
2"
Ø430/Ø350
3000
3"
3"
1"1/4
1"1/4
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
2"
2"
Ø430/Ø350
4000
3"
3"
1"1/4
1"1/4
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
2"
2"
Ø430/Ø350
5000
3"
3"
1"1/4
1"1/4
1/2"
1/2"
1"1/4
1"1/2
1"1/4
1"1/4
1"1/4
2"
2"
Ø430/Ø350
Tabella dimensioni
Cap.
Øe
Ht
R*
A1
C1
E1
E2
F
I
K1
K2
K3
N1
N2
Q1**
l
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
200
650
1410
1535
295
1135
595
1135
425
540
295
915
-
305
425
365
300
750
1490
1650
335
1175
635
1175
465
605
335
935
-
345
465
405
500
850
1770
1945
350
1420
650
1420
650
935
350
950
1190
360
480
420
750
990
1810
2045
370
1440
670
1440
700
1150
370
990
1210
407,5
552,5
480
1000
1050
2100
2330
390
1710
690
1710
745
1150
390
990
1230
427,5
572,5
500
1500
1250
2235
2555
490
1800
795
1800
795
1205
490
1090
1330
517,5
662,5
590
2000
1450
2315
2725
525
1835
830
1835
830
1240
525
1125
1365
555
745
650
2500
1400
2640
2895
560
2145
860
2145
845
1545
560
1160
1400
575
765
670
3000
1450
2850
3155
565
2340
790
2340
840
1740
565
1040
1405
585
775
680
4000
1600
2920
3295
590
2370
890
2370
860
1770
590
1190
1430
610
800
705
5000
1800
2960
3425
600
2375
900
2375
875
1775
600
1200
1440
620
810
715
R*: Quota di ribaltamento
Q1**: altezza dal centro del boccaporto a terra
I
N
2
Q1
E
1
F
N
2
Q1
E1
S1
Q1
Boccaporto d'ispezione
F
S1
Serpentino inferiore
A1
N1
K1
A1
N1
K1
B
O
L
I
T
O
R
I
